Current version
This product replaces an earlier version.Confirmed v3 replacement for QM-TWOv2. Old-side superseded/replaced_by is intentionally pending until this draft is approved for Online Store publication.
ESX Audio

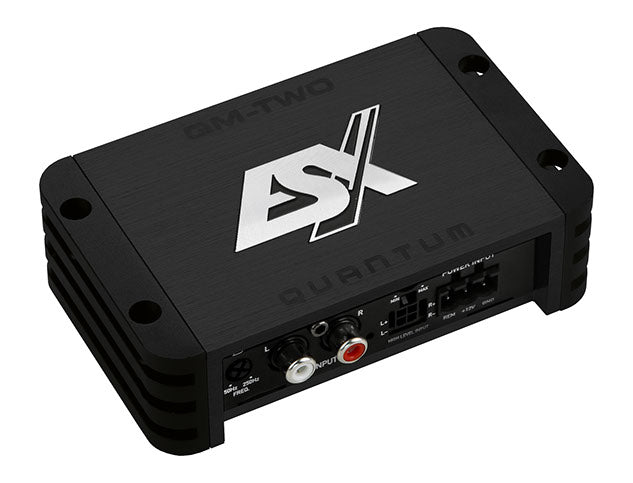

ESX QUANTUM Digital 2CH AMP QM-TWOv3
Amplifier
Why choose this product?
The extremely compact QUANTUM QM-TWO power amplifier has long been one of the top sellers in the ESX amplifier portfolio. Since the larger QM and QL models are now available in black and enthusiastic ESX Quantum fans want to install the small QM-TWO in the same look, we are now presenting the new QM-TWOv3 as an exclusive "Black Edition". The reasons for its success are literally "obvious": At just 7.5 x 12 cm, this small Class D power amplifier is an incredibly powerful powerhouse in miniature format, ideal for driving many speakers up to 2 Ω.
With 2 x 150 watts RMS at 2 Ω, the V3 can easily drive almost any speaker. Compared to the v1 version, the power has been increased by an impressive 25% with the same size. With a bridge power of 300 watts RMS, the power amplifier is even able to properly supply subwoofers.
Despite the 25% increase in performance and the unchanged heat sink, the QM-TWO v3 achieves a sensational efficiency of 85%. This not only keEPS® power consumption low, but also saves you from having to use excessively thick power cables.
The QM-TWOv3 is very well equipped. The often required high-level inputs with plug-in mini-molex connectors and automatic switch-on are equipped with proven EPS® technology. This makes it possible to integrate the QM-TWOv3 into modern vehicles with factory systems and loudspeaker diagnostic systems without errors occurring in the on-board electronics. In addition, ESX does not do without classic cinch inputs: The QM-TWOv3 can also be connected directly behind DSPs or high-end radios at any time.
Fitment and setup note: Check compatibility and installation requirements before ordering. If unsure, send your vehicle details by WhatsApp or email so the right kit can be confirmed.
Official download: Manufacturer manual / data sheet.
Key features
• 2 x 105/150 Watts RMS @ 4/2 Ω
• 1 x 300 Watts RMS @ 4 Ω bridged
• HPF/LPF 50-250 Hz
• Dimensions 75 x 33 x 120 mm
Technical details
• 2-Channel Class D Mini Digital Amplifier
• 2 x 105/150 Watts RMS @ 4/2 Ω
• 1 x 300 Watts RMS @ 4 Ω bridged
• HPF/LPF 50-250 Hz
• Dimensions 75 x 33 x 120 mm
• Efficiency up to 85%
Downloads
• https://esxaudio.de/english/assets/qm-twov3.pdf
Compatibility and support
For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.
We reply by email or WhatsApp so you have the recommendation in writing.
Downloads
Need fitment help?
Ask before ordering if the vehicle, wiring or DSP setup is unclear.
Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.
