Musway

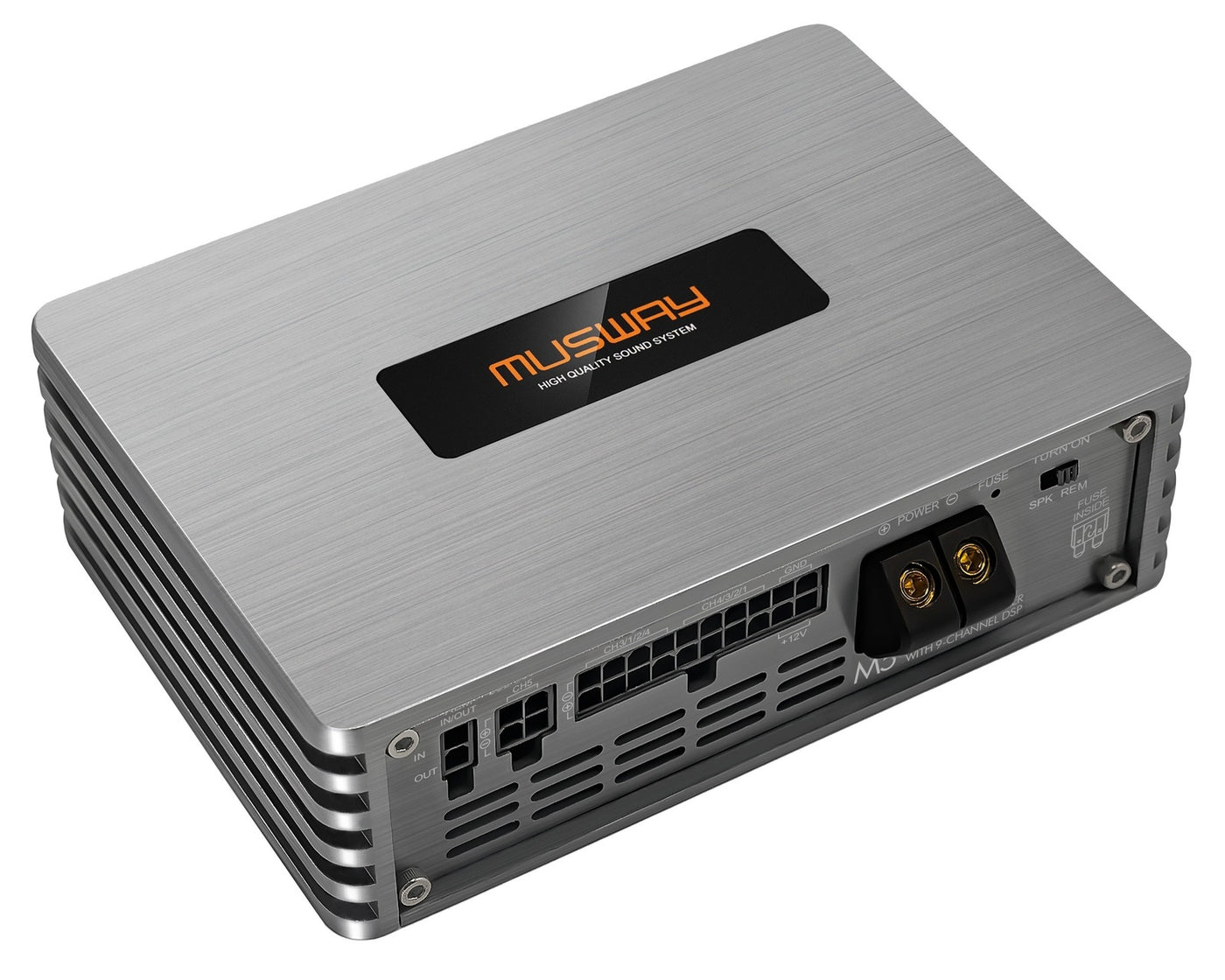

MUSWAY M5-512K 5CH DSP Amplifier
5-Channel Class D Amplifier With 9-Channel DSP
£499.99
Available to order
DSP Amplifier
5 Channel
500W to 1000W
2 Ohm, 4 Ohm
Manual included
Dsp tuning
The MUSWAY M5-512K 5CH DSP Amplifier is a MUSWAY dsp amplifier for active car audio upgrades where tuning control and compact installation matter. It is suited to builds needing dsp, 512k, class d.
Use the feature and technical specification sections below to compare channels, RMS output, impedance support, tuning options and installation details before ordering. Key installation details and specifications are listed below.
Best for tuned active upgrades
Use the DSP and channel data below to check routing, tuning and integration requirements before fitting.
Features
• 5-CHANNEL CLASS D AMPLIFIER WITH 9-CHANNEL DSP
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Signal-to-noise Ratio 95dB
• Frequency Response 10 Hz – 20 kHz (-3dB)
• THD 0,015% (1 kHz, 4 Ohms, 90% Power)
• Plug+Play with vehicle-specific cable sets
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Signal-to-noise Ratio 95dB
• Frequency Response 10 Hz – 20 kHz (-3dB)
• THD 0,015% (1 kHz, 4 Ohms, 90% Power)
• Plug+Play with vehicle-specific cable sets
Technical Specifications
Power Ratings
• 4 x 45/50 Watts RMS @ 4/3 Ohms
• + 1 x 180/300 Watts RMS @ 4/2 Ohms
Dsp & Tuning
• 5-CHANNEL CLASS D AMPLIFIER WITH 9-CHANNEL DSP
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Frequency Response 10 Hz – 20 kHz (-3dB)
• 512k Bit DSP technology, controllable via PC software or Smartphone App
• Digital remote control DRC1 and myCON for controlling various DSP functions (optional)
• AMOLED Touchscreen Controller to control the DSP Functions
• Only Compatible with 512K-DSP models
• Digital Remote Controller with Display to control the DSP Functions
• Compatible with all DSP models
• Bluetooth® Dongle for
• HD Audio Streaming & App Control
Inputs & Outputs
• High Level Input with EPS ® (Error Protection System)
• External Bluetooth® USB-Dongles BTS , BTS-HD & BTA-HD for Audio Streaming & App Control (optional)
• 4 x High Level Input with EPS ®
• 1 x Optical Input/Stereo PCM
• 4 x Loudspeaker Output amplified
• 1 x Subwoofer Output amplified
• 4 x Pre-Amplifier Output RCA (configurable via DSP)
Dimensions & Installation
• Frequency Response 10 Hz – 20 kHz (-3dB)
• THD 0,015% (1 kHz, 4 Ohms, 90% Power)
• Start-Stop ready, Auto Turn-On
• Dimensions: 150 x 45 x 105 mm
• 4 x 45/50 Watts RMS @ 4/3 Ohms
• + 1 x 180/300 Watts RMS @ 4/2 Ohms
Dsp & Tuning
• 5-CHANNEL CLASS D AMPLIFIER WITH 9-CHANNEL DSP
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Frequency Response 10 Hz – 20 kHz (-3dB)
• 512k Bit DSP technology, controllable via PC software or Smartphone App
• Digital remote control DRC1 and myCON for controlling various DSP functions (optional)
• AMOLED Touchscreen Controller to control the DSP Functions
• Only Compatible with 512K-DSP models
• Digital Remote Controller with Display to control the DSP Functions
• Compatible with all DSP models
• Bluetooth® Dongle for
• HD Audio Streaming & App Control
Inputs & Outputs
• High Level Input with EPS ® (Error Protection System)
• External Bluetooth® USB-Dongles BTS , BTS-HD & BTA-HD for Audio Streaming & App Control (optional)
• 4 x High Level Input with EPS ®
• 1 x Optical Input/Stereo PCM
• 4 x Loudspeaker Output amplified
• 1 x Subwoofer Output amplified
• 4 x Pre-Amplifier Output RCA (configurable via DSP)
Dimensions & Installation
• Frequency Response 10 Hz – 20 kHz (-3dB)
• THD 0,015% (1 kHz, 4 Ohms, 90% Power)
• Start-Stop ready, Auto Turn-On
• Dimensions: 150 x 45 x 105 mm
Downloads and support
Download owner manual
PDF manual hosted by TenderSounds.
