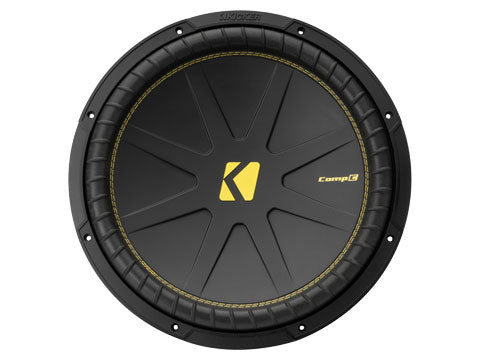

Kicker

15" CompC 4 Ohm SVC

Subwoofer Driver

£189.95
Available to order
Subwoofer driver 15, 38 4 SVC SKU 50CWCS154 Verified downloads
Driver parametersThiele / Small
Fs30.7
Why choose this product?
The perfect combination of performance and value, the KICKER CompC Subwoofer delivers the bump you’ve been craving! The single-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get. Want setup help? Go to KICKER U for a free woofer & amplifier configuration app! *The CompC 15-inch Subwoofer works best with a sealed or ported enclosure and 450 watts of recommended power. See below for more details.
Why choose this product?
The perfect combination of performance and value, the KICKER CompC Subwoofer delivers the bump you’ve been craving! The single-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get. Want setup help? Go to KICKER U for a free woofer & amplifier configuration app! *The CompC 15-inch Subwoofer works best with a sealed or ported enclosure and 450 watts of recommended power. See below for more details.
Manufacturer features
  • Thiele/Small Parameters: 50CWCS154 T/S Parameters
  • Product Dimension Sheet: 50CWCS154 Dimensions
  • CNC Software: Comp6.75-15.DXF - for subwoofer hole cutouts
  • 3D Printing Software: Comp6.75-15.SLDPRT - 3D-printing of grille spacers
  • Size [in, cm]: 15, 38
  • Recommended Amplifier Power [watts RMS]: 225-450
  • Peak Power Handling [watts, per ANSI/CTA-2031-A]: 900
  • Sensitivity [dB 1w/1m]: 89.2
  • Rated Impedance [OHMS]: 4 SVC
  • Fs [Hz]: 30.7
  • Frequency Response [Hz]: 25-500
  • Outer Frame Dimension [in, cm]: 15-1/2, 39.3
  • Mounting Depth [in, cm]: 7-3/8, 18.7
  • Mounting Cutout [in, cm]: 13-3/4, 35
  • Max Rec Sealed Box Vol [cu. ft, liters: 5, 141.6
  • Min Rec Sealed Box Vol [cu. ft, liters: 2.25, 63.7
  • Max Rec Vented Box Vol [cu. ft, liters): 4, 113.3
  • Min Rec Vented Box Vol [cu. ft, liters]: 3, 85
  • Warranty: When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.
Technical overview

Power & electrical

Maximum power
2031-A]: 900
Nominal impedance
4 SVC
Sensitivity
89.2

Driver & acoustic data

Frequency response
25-500
Driver size
15, 38

Enclosure & installation

Dimensions
50CWCS154 Dimensions
Mounting depth
7-3/8, 18.7
Cut-out / installation diameter
13-3/4, 35
Downloads
15" CompC 4 Ohm SVC document15" CompC 4 Ohm SVC document

Need system-matching help?

Ask before ordering if the power, impedance or enclosure requirements are unclear.

Send the amplifier, available space and the subwoofer you are considering. We’ll reply in writing.

WhatsApp matching helpEmail us
15" CompC 4 Ohm SVC £189.95
