Arc Audio

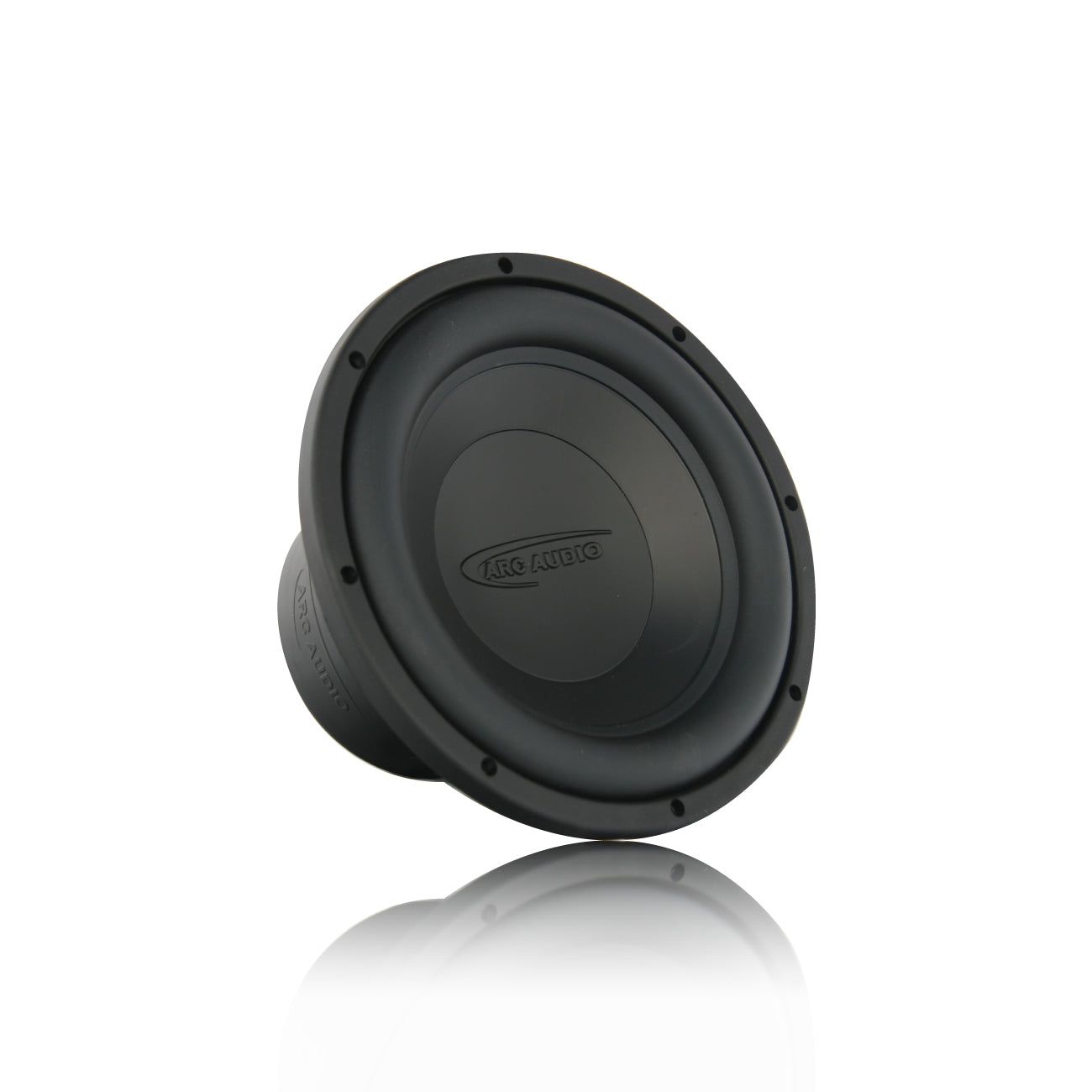

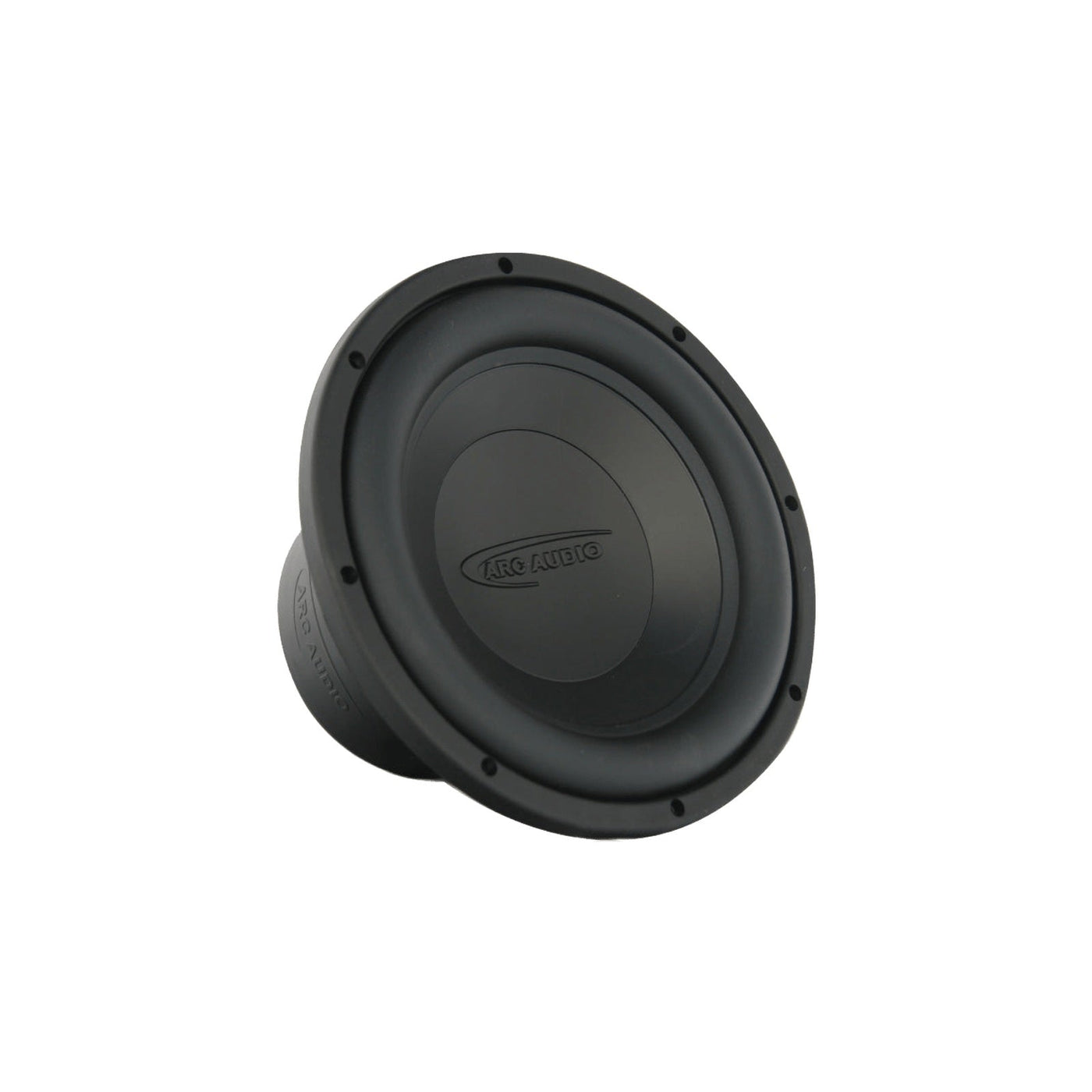

ARC 8D4 8" Subwoofer
Subwoofer Driver
Why choose this product?
The ARC Audio ARC 8D4 combines compact-enclosure flexibility with the musical accuracy and hard-hitting low-frequency performance of the ARC Series. Its eight-inch platform and dual 4-ohm voice coils give installers useful wiring options for single- or multi-subwoofer systems.
Rated at 150 watts RMS and 300 watts musical power, the ARC 8D4 is designed for sealed or ported use. ARC Audio publishes a 0.45 cubic-foot optimum sealed enclosure, with full enclosure guidance and driver parameters available in the official installation manual.
Features
- 8-inch ARC Series subwoofer
- Dual 4-ohm voice coils
- 150 W RMS continuous power handling
- 300 W musical power handling
- 15 mm linear Xmax
- Designed for sealed or ported enclosures
- Compact 4.5-inch mounting depth
- ARC Series design balances sound quality and strong bass output
Official downloads
Why choose this product?
The ARC Audio ARC 8D4 combines compact-enclosure flexibility with the musical accuracy and hard-hitting low-frequency performance of the ARC Series. Its eight-inch platform and dual 4-ohm voice coils give installers useful wiring options for single- or multi-subwoofer systems.
Rated at 150 watts RMS and 300 watts musical power, the ARC 8D4 is designed for sealed or ported use. ARC Audio publishes a 0.45 cubic-foot optimum sealed enclosure, with full enclosure guidance and driver parameters available in the official installation manual.
Features
- 8-inch ARC Series subwoofer
- Dual 4-ohm voice coils
- 150 W RMS continuous power handling
- 300 W musical power handling
- 15 mm linear Xmax
- Designed for sealed or ported enclosures
- Compact 4.5-inch mounting depth
- ARC Series design balances sound quality and strong bass output
Official downloads
Manufacturer features
- 8-inch ARC Series subwoofer
- Dual 4-ohm voice coils
- 150 W RMS continuous power handling
- 300 W musical power handling
- 15 mm linear Xmax
- Designed for sealed or ported enclosures
- Compact 4.5-inch mounting depth
- ARC Series design balances sound quality and strong bass output
Technical overview
Power & electrical
- RMS power
- 150 W
- Sensitivity
- 85.6 dB (1 W / 1 m)
Driver & acoustic data
- Driver size
- 8 in
- Xmax
- 15 mm
Enclosure & installation
- Mounting depth
- 4.5 in
- Cut-out / installation diameter
- 7.125 in
Need system-matching help?
Ask before ordering if the power, impedance or enclosure requirements are unclear.
Send the amplifier, available space and the subwoofer you are considering. We’ll reply in writing.
