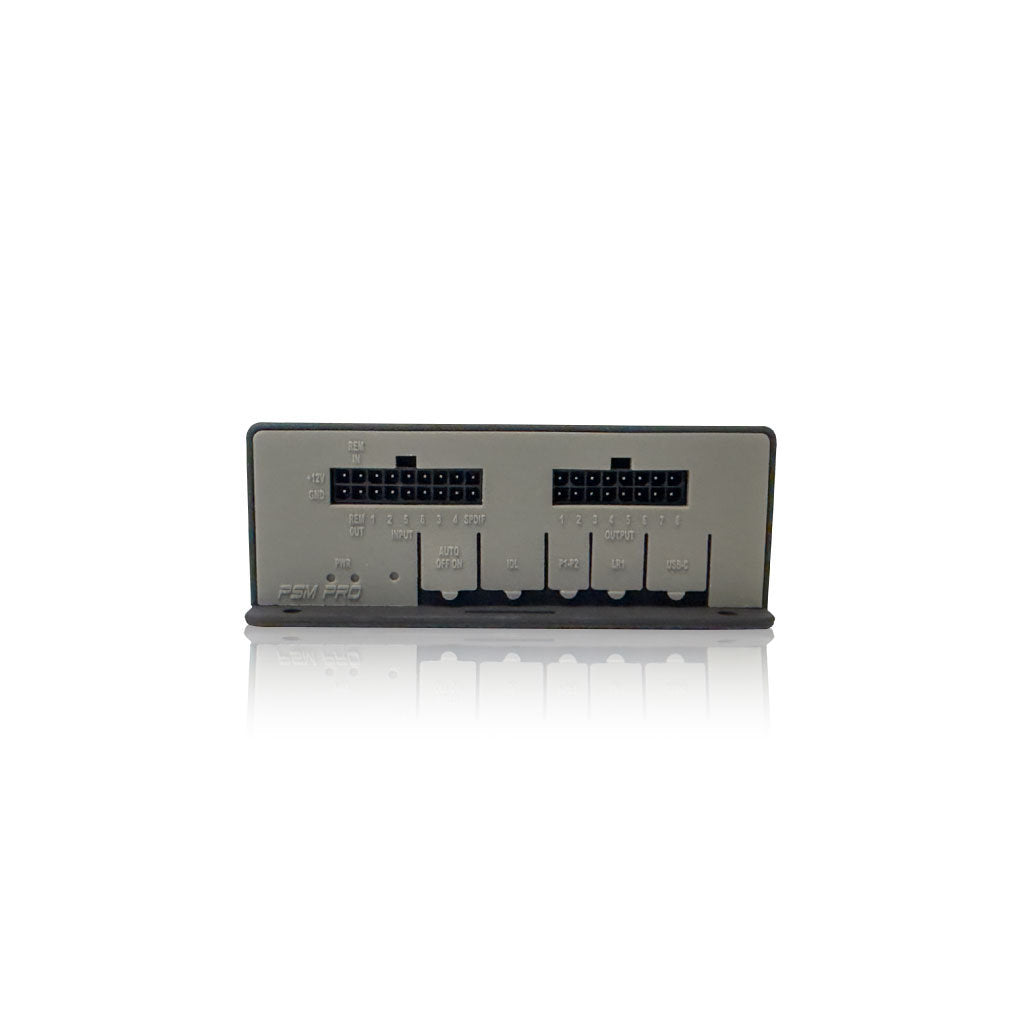

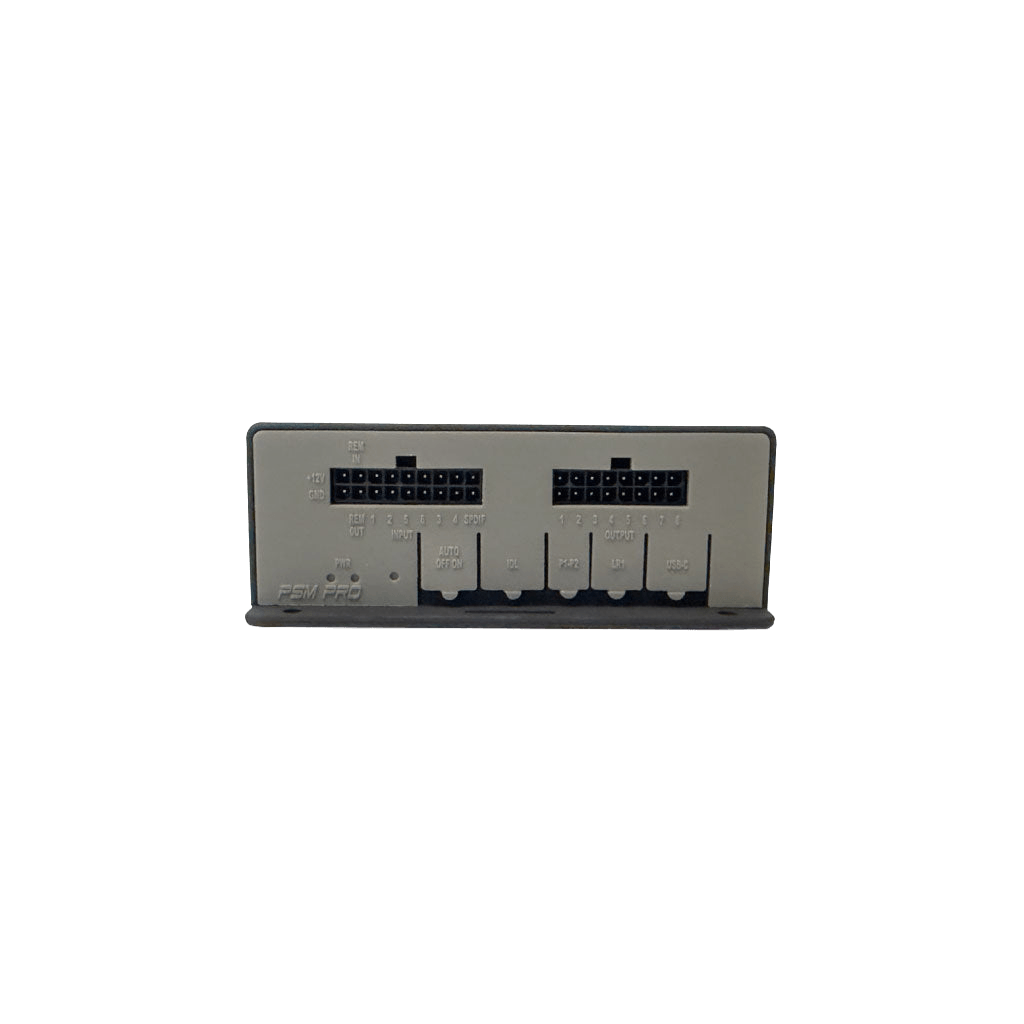

Arc Audio

PSM-Pro

Standalone DSP

£499.95
Available to order

The ARC Audio PSM-Pro brings full-featured system tuning to motorcycles, powersports vehicles and other installations where space is limited. Its compact, fiber-reinforced water-resistant ABS enclosure uses pigtail-style wiring, while the Analog Devices ADAU1452 platform provides flexible routing, equalisation, delay, phase and crossover...

At a glance SKU PSMPRO
DSP channels8 DSP output channels; 31-band + 6 bonus-band parametric EQ per channel
Inputs6 differential channels, 2-16 V RMS
Outputs8 channels, up to 3.5 V RMS
DSP precision32-bit DSP
Dimensions3.75 × 3.00 × 1.35 in (95.3 × 76.2 × 34.3 mm)
Technical overview DSP platform and product features
DSP chip / platformAnalog Devices ADAU1452
Signal-to-noise ratio86 dB at 1 V input; 90 dB at 4 V input
DSP channels8 DSP output channels; 31-band + 6 bonus-band parametric EQ per channel
DSP precision32-bit DSP
Inputs6 differential channels, 2-16 V RMS
Outputs8 channels, up to 3.5 V RMS
System roleExternal amplifier required
Product-specific features
  • 96 kHz coaxial digital input
  • ARC Audio DNA tuning with 296 bands of equalisation
  • Input and output delay, phase control and configurable crossovers
  • Four ground-triggered presets
Overview & features

The ARC Audio PSM-Pro brings full-featured system tuning to motorcycles, powersports vehicles and other installations where space is limited. Its compact, fiber-reinforced water-resistant ABS enclosure uses pigtail-style wiring, while the Analog Devices ADAU1452 platform provides flexible routing, equalisation, delay, phase and crossover control through ARC Audio DNA software.

Six differential analog inputs accept 2-16 V RMS signals, a coaxial digital input supports up to 96 kHz, and eight RCA outputs deliver up to 3.5 V RMS. Four ground-triggered presets, optional LR1 control and iDatalink Maestro AR compatibility make the PSM-Pro a capable standalone processor for advanced OEM integration and custom systems.

Features

  • Compact standalone DSP for motorcycle, powersports and space-constrained vehicle installations
  • Analog Devices ADAU1452 DSP platform
  • 6 differential analog inputs accepting 2-16 V RMS
  • 8 RCA outputs with up to 3.5 V RMS output
  • 96 kHz coaxial digital input
  • ARC Audio DNA tuning with 296 bands of equalisation
  • Input and output delay, phase control and configurable crossovers
  • Four ground-triggered presets
  • Optional ARC Audio LR1 remote control
  • iDatalink Maestro AR compatible

Official downloads

PSM-Pro quick setup guide

ARC Audio product catalogue

Technical overview
Signal-to-noise ratio
86 dB at 1 V input; 90 dB at 4 V input
Inputs
6 differential channels, 2-16 V RMS
Outputs
8 channels, up to 3.5 V RMS
DSP channels
8 DSP output channels; 31-band + 6 bonus-band parametric EQ per channel
Bit depth
32-bit DSP
Installation
Operating voltage
6-17 V DC; start/stop to 4.5 V
Dimensions
3.75 × 3.00 × 1.35 in (95.3 × 76.2 × 34.3 mm)
Additional specifications
Control / expansion
External remote level control: LR1 sold separately; Maestro AR module interface capable
Downloads
PSM-Pro manual PSM-Pro datasheet
