Arc Audio

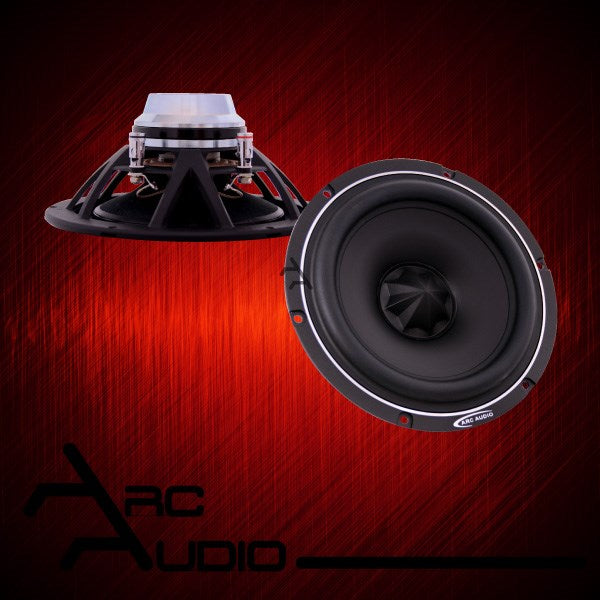

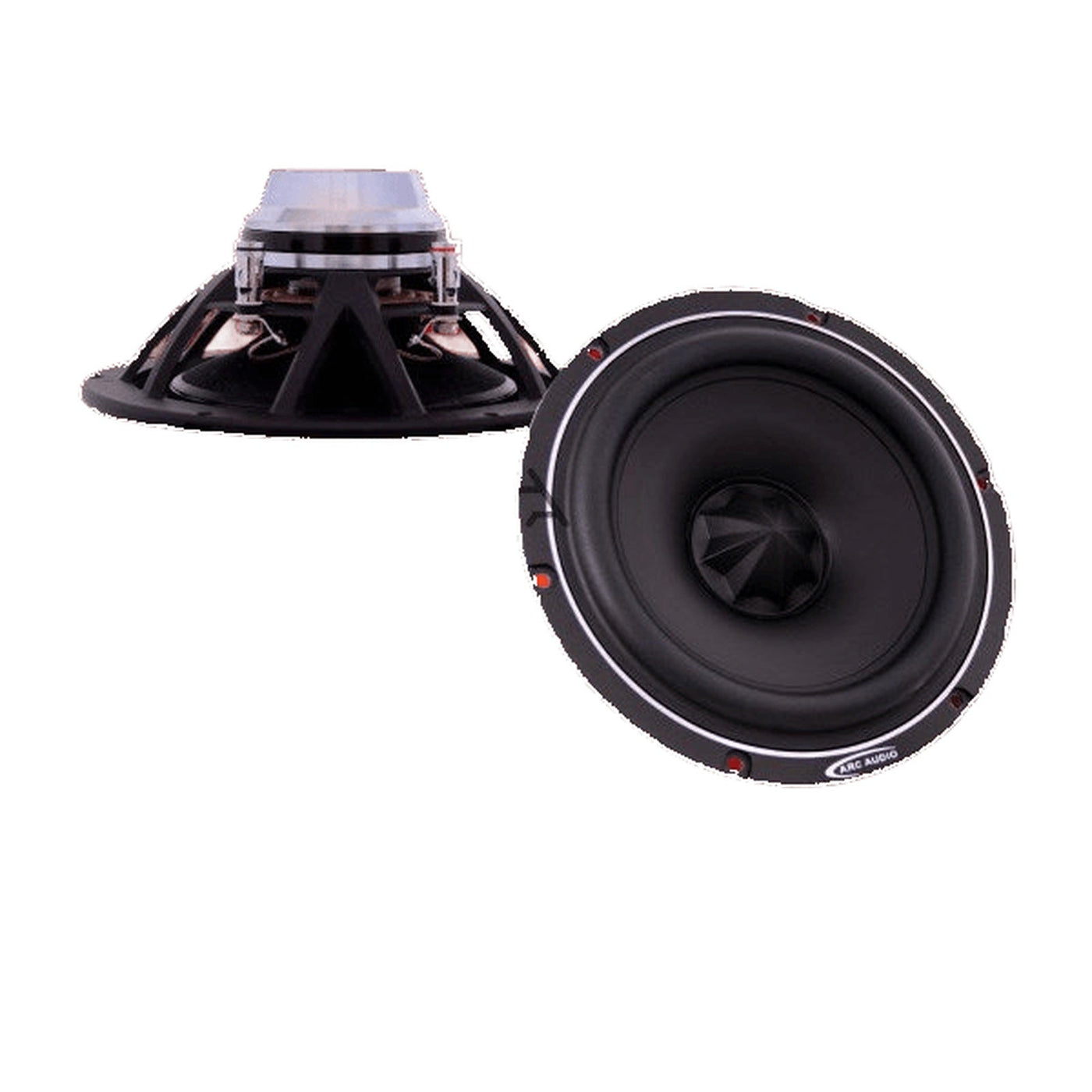

RS6.0 6.5" Reference Midbass Speakers
Midbass Speaker
Why choose this product?
The ARC Audio RS6.0 is the heavyweight of the Reference Series, combining powerful midbass output with the detail and control needed for high-resolution active systems. Its low resonance and extended upper range give system designers useful crossover freedom for two-way or three-way DSP-controlled installations.
The composite papyrus-filled cone, progressive Nomex spider, low-shore rubber surround and cast-aluminium basket provide a controlled mechanical platform. A CNC-machined neodymium motor keeps the driver compact, while an extended copper sleeve over the pole piece improves linearity and reduces distortion; every pair is hand-matched for mechanical compliance and tonal balance.
Features
- Matched pair of 6.5-inch Reference Series midbass speakers
- Composite papyrus-filled cone
- Progressive Nomex spider
- Low-shore rubber surround
- Cast-aluminium basket
- High-temperature CCAW voice coil on a non-conductive former
- CNC-machined neodymium motor structure
- Extended copper pole sleeve improves linearity and lowers distortion
- Vertically splined Juicer dust cap suppresses modal breakup
- Designed for 2-way or 3-way active systems
- Hand-matched for mechanical compliance and tonal balance
Official downloads
Why choose this product?
The ARC Audio RS6.0 is the heavyweight of the Reference Series, combining powerful midbass output with the detail and control needed for high-resolution active systems. Its low resonance and extended upper range give system designers useful crossover freedom for two-way or three-way DSP-controlled installations.
The composite papyrus-filled cone, progressive Nomex spider, low-shore rubber surround and cast-aluminium basket provide a controlled mechanical platform. A CNC-machined neodymium motor keeps the driver compact, while an extended copper sleeve over the pole piece improves linearity and reduces distortion; every pair is hand-matched for mechanical compliance and tonal balance.
Features
- Matched pair of 6.5-inch Reference Series midbass speakers
- Composite papyrus-filled cone
- Progressive Nomex spider
- Low-shore rubber surround
- Cast-aluminium basket
- High-temperature CCAW voice coil on a non-conductive former
- CNC-machined neodymium motor structure
- Extended copper pole sleeve improves linearity and lowers distortion
- Vertically splined Juicer dust cap suppresses modal breakup
- Designed for 2-way or 3-way active systems
- Hand-matched for mechanical compliance and tonal balance
Official downloads
Construction & features
- Matched pair of 6.5-inch Reference Series midbass speakers
- Composite papyrus-filled cone
- Progressive Nomex spider
- Low-shore rubber surround
- Cast-aluminium basket
- High-temperature CCAW voice coil on a non-conductive former
- CNC-machined neodymium motor structure
- Extended copper pole sleeve improves linearity and lowers distortion
- Vertically splined Juicer dust cap suppresses modal breakup
- Designed for 2-way or 3-way active systems
- Hand-matched for mechanical compliance and tonal balance
Technical overview
Power & electrical
- RMS power
- 80 W
- Maximum power
- 200 W
- Nominal impedance
- 4 ohm
- Sensitivity
- 91.5 dB
Acoustic & construction
- Frequency response
- 50 Hz-9.5 kHz
- Driver size
- 6.5 in
- Speaker type
- Matched raw midbass pair
Installation
- Mounting depth
- 2.75 in
Compatibility and support
Confirm the available mounting depth, cut-out diameter, grille clearance and amplifier power before ordering. We reply by email or WhatsApp so you have the recommendation in writing.
Need installation help?
Ask before ordering if the speaker size, depth or wiring is unclear.
Send the product you are replacing, the available mounting depth and any adapter or grille details. We’ll reply in writing.
