Brax

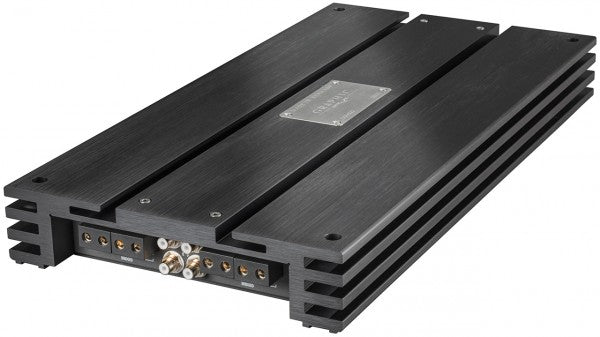

BRAX GX2400

Amplifier

£2,499.99
Available to order
Amplifier 4 SKU 12740 Manual included
Fitment System planning support
Tech specs Shown below
Manuals/downloads Download linked
Warranty Manufacturer backed
Plan the system before checkout Check channel layout, power, impedance and DSP requirements before choosing wiring or speakers.
Why choose this product?
The BRAX GX2400 is a purist high-end 4-channel Class AB amplifier built for precise, natural sound reproduction. It uses short signal paths, hand-selected MOSFET transistors, solid gold-plated terminals and a German-made amplifier layout with no crossover or filter stage in the signal path.
Key features
High-end 4-channel Class AB amplifier
Handcrafted in Germany
32 hand-selected high-end MOSFET transistors
Gold-plated terminals for power cables up to 50 mm2 and speaker cables up to 6 mm2
Separate BRAX IPC power stabilizer connection
Short signal paths and high-end input capacitors
Available in black or silver with short or long heatsink
Amplifier specifications
Channels: 4 Amplifier class: Class AB RMS power @ 4 ohm: 4 x 150W RMS power @ 2 ohm: 4 x 240W Bridged RMS power @ 4 ohm: 2 x 480W Inputs: 4 x RCA/Cinch, 1 x remote in Frequency response: 10Hz - 80kHz Signal-to-noise ratio analog input: > 120 dB A-weighted THD: < 0.0008% Damping factor: > 1000 Operating voltage: 9 - 16V Dimensions short heatsink: 53 x 237.5 x 433 mm Dimensions long heatsink: 53 x 237.5 x 473 mm Net weight: 8.2 kg short / 8.6 kg long
Compatibility and support

For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.

We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
Download owner manual Manufacturer documentation supplied where available.

Need fitment help?

Ask before ordering if the vehicle, wiring or DSP setup is unclear.

Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.

WhatsApp compatibility help Email us
BRAX GX2400 £2,499.99
