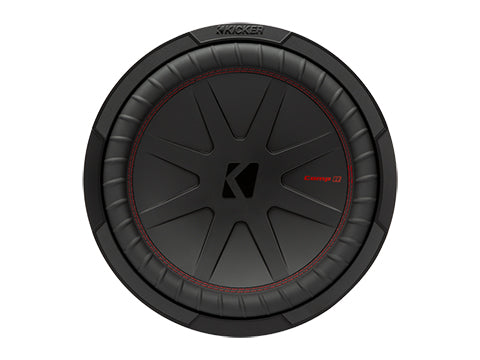

Kicker
12" CompR 4 Ohm
Subwoofer Driver
£179.95
Available to order
Subwoofer driver
12, 30
4 DVC
SKU 48CWR124
Verified downloads
Why choose this product?
Now even more efficient and sporting a slick, blacked-out look, the 2021 CompR sub is the very model of power and reliability.
The CompR 12-Inch Subwoofer is a 4Ω dual voice coil design, making it easy to get the most out of your amp.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. Revolutionary SoloKon technology joins the cone to the back brace, creating a single integrated unit that both cools the motor and eliminates distortion.
To make our subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.
Why choose this product?
Now even more efficient and sporting a slick, blacked-out look, the 2021 CompR sub is the very model of power and reliability.
The CompR 12-Inch Subwoofer is a 4Ω dual voice coil design, making it easy to get the most out of your amp.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. Revolutionary SoloKon technology joins the cone to the back brace, creating a single integrated unit that both cools the motor and eliminates distortion.
To make our subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.
Manufacturer features
- Thiele/Small Parameters: 48CWR124 T/S Parameters
- Product Dimension Sheet: 48CWR12 Dimensions
- CNC Software: Comp6.75-15.DXF - for subwoofer hole cutouts
- 3D Printing Software: Comp6.75-15.SLDPRT - 3D-printing of grille spacers
- SIZE [in, cm]: 12, 30
- IMPEDANCE [Ohms]: 4 DVC
- Recommended Amplifier Power (watts RMS): 500
- Peak Power (watts, per ANSI/CTA-2031-A): 1000
- SENSITIVITY [dB 1w/1m]: 86.9
- MOUNTING DEPTH [in, cm]: 5-3/4, 14.6
- MOUNTING DIAMETER [in, cm]: 11, 27.9
- MIN SEALED BOX VOL [cu. ft, L]: 1.0, 28.3
- MAX SEALED BOX VOL [cu. ft, L]: 2.0, 56.64
- MIN VENTED BOX VOL [cu. ft, L]: 1.75, 49.6
- MAX VENTED BOX VOL [cu. ft, L]: 2.25, 63.7
- Warranty: When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.
Technical overview
Power & electrical
- Maximum power
- 2031-A): 1000
- Nominal impedance
- 4 DVC
- Sensitivity
- 86.9
Driver & acoustic data
- Driver size
- 12, 30
Enclosure & installation
- Dimensions
- 48CWR12 Dimensions
- Mounting depth
- 5-3/4, 14.6
- Cut-out / installation diameter
- 11, 27.9
Need system-matching help?
Ask before ordering if the power, impedance or enclosure requirements are unclear.
Send the amplifier, available space and the subwoofer you are considering. We’ll reply in writing.
