Kicker

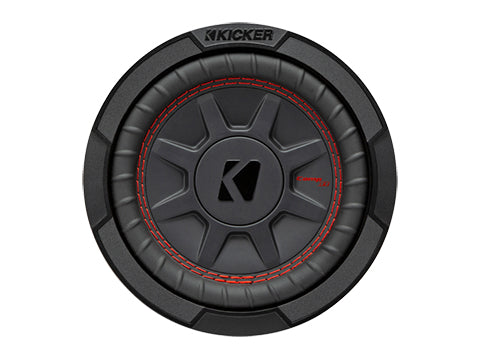

6 3/4" CompRT 2 Ohm
Subwoofer Driver
Why choose this product?
KICKER CompRT 48CWRT672 is an ultra-thin, all-weather subwoofer designed to deliver strong bass where space is limited. KICKER states that the CompRT line can fit under a seat or behind a rear bench.
This 6-3/4-inch subwoofer uses dual 4-ohm voice coils for a final 2-ohm configuration. Its shallow 2-3/4-inch mounting depth makes it well suited to compact sealed enclosures and low-clearance installations.
The Santoprene surround, polypropylene cone, vented back brace and Forced-Air Cooling design are built for reliable output in a compact enclosure.
Key specifications
- Model: 48CWRT672
- Subwoofer size: 6-3/4 in (17.3 cm)
- Impedance: 2 Ω DVC (dual 4 Ω voice coils)
- Recommended amplifier power: 150 W RMS
- Peak power: 300 W (ANSI/CTA-2031-A)
- Sensitivity: 82.6 dB (1 W/1 m)
- Mounting depth: 2-3/4 in (7 cm)
- Mounting diameter: 5-5/8 in (14.3 cm)
- Sealed enclosure volume: 0.18–0.75 cu ft (5.1–21.24 L)
Downloads
Why choose this product?
KICKER CompRT 48CWRT672 is an ultra-thin, all-weather subwoofer designed to deliver strong bass where space is limited. KICKER states that the CompRT line can fit under a seat or behind a rear bench.
This 6-3/4-inch subwoofer uses dual 4-ohm voice coils for a final 2-ohm configuration. Its shallow 2-3/4-inch mounting depth makes it well suited to compact sealed enclosures and low-clearance installations.
The Santoprene surround, polypropylene cone, vented back brace and Forced-Air Cooling design are built for reliable output in a compact enclosure.
Key specifications
- Model: 48CWRT672
- Subwoofer size: 6-3/4 in (17.3 cm)
- Impedance: 2 Ω DVC (dual 4 Ω voice coils)
- Recommended amplifier power: 150 W RMS
- Peak power: 300 W (ANSI/CTA-2031-A)
- Sensitivity: 82.6 dB (1 W/1 m)
- Mounting depth: 2-3/4 in (7 cm)
- Mounting diameter: 5-5/8 in (14.3 cm)
- Sealed enclosure volume: 0.18–0.75 cu ft (5.1–21.24 L)
Downloads
Manufacturer features
- Model: 48CWRT672
- Subwoofer size: 6-3/4 in (17.3 cm)
- Final impedance: 2 Ω DVC (dual 4 Ω voice coils)
- Recommended amplifier power: 150 W RMS
- Peak power: 300 W (ANSI/CTA-2031-A)
- Sensitivity: 82.6 dB (1 W/1 m)
- Mounting depth: 2-3/4 in (7 cm)
- Mounting diameter: 5-5/8 in (14.3 cm)
- Sealed enclosure volume: 0.18–0.75 cu ft (5.1–21.24 L)
- Vented enclosure volume: Not specified by KICKER in the published table.
Technical overview
Power & electrical
- Final impedance
- 2 Ω DVC (dual 4 Ω voice coils)
- Sensitivity
- 82.6 dB (1 W/1 m)
Driver & acoustic data
- Subwoofer size
- 6-3/4 in (17.3 cm)
Enclosure & installation
- Mounting depth
- 2-3/4 in (7 cm)
Need system-matching help?
Ask before ordering if the power, impedance or enclosure requirements are unclear.
Send the amplifier, available space and the subwoofer you are considering. We’ll reply in writing.
