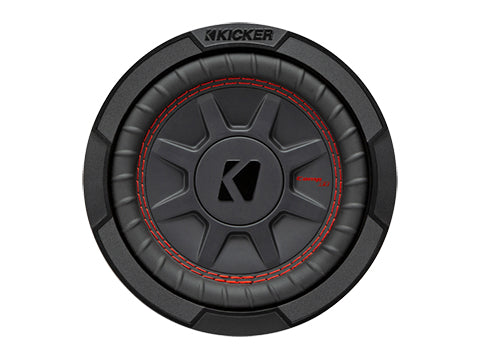

6 3/4" CompRT 4 Ohm

The KICKER CompRT 6-3/4-inch subwoofer is a thin-profile, all-weather driver designed to deliver strong bass where space is limited. The CompRT range is designed to fit under a seat or behind a back bench.

This 4-ohm version uses dual voice coils, forced-air cooling and a reinforced SoloKon cone structure for reliable performance in a compact installation.

Key specifications

• Size: 6-3/4 in (17.3 cm)
• Impedance: 4 Ω nominal, dual voice coil (DVC)
• Recommended amplifier power: 150 W RMS
• Peak power: 300 W
• Sensitivity: 82.6 dB (1 W/1 m)
• Mounting depth: 2-3/4 in (7 cm)
• Mounting diameter / cut-out: 5-5/8 in (14.3 cm)
• Sealed enclosure volume: 0.18-0.75 cu ft (5.1-21.24 L)
• Vented enclosure volume: Not specified by KICKER

Installation and enclosure guidance

The shallow design suits under-seat and behind-bench installations. KICKER states that the CompRT works best in a sealed enclosure. Use the published mounting dimensions and the supplied cut-out template when planning the installation.

Downloads

• KICKER CompRT owner's manual
• 48CWRT67 product dimensions
• 48CWRT674 T/S parameters
• 6.75-inch cut-out template (DXF)
• 6.75-inch grille-spacer template (SLDPRT)
