Musway

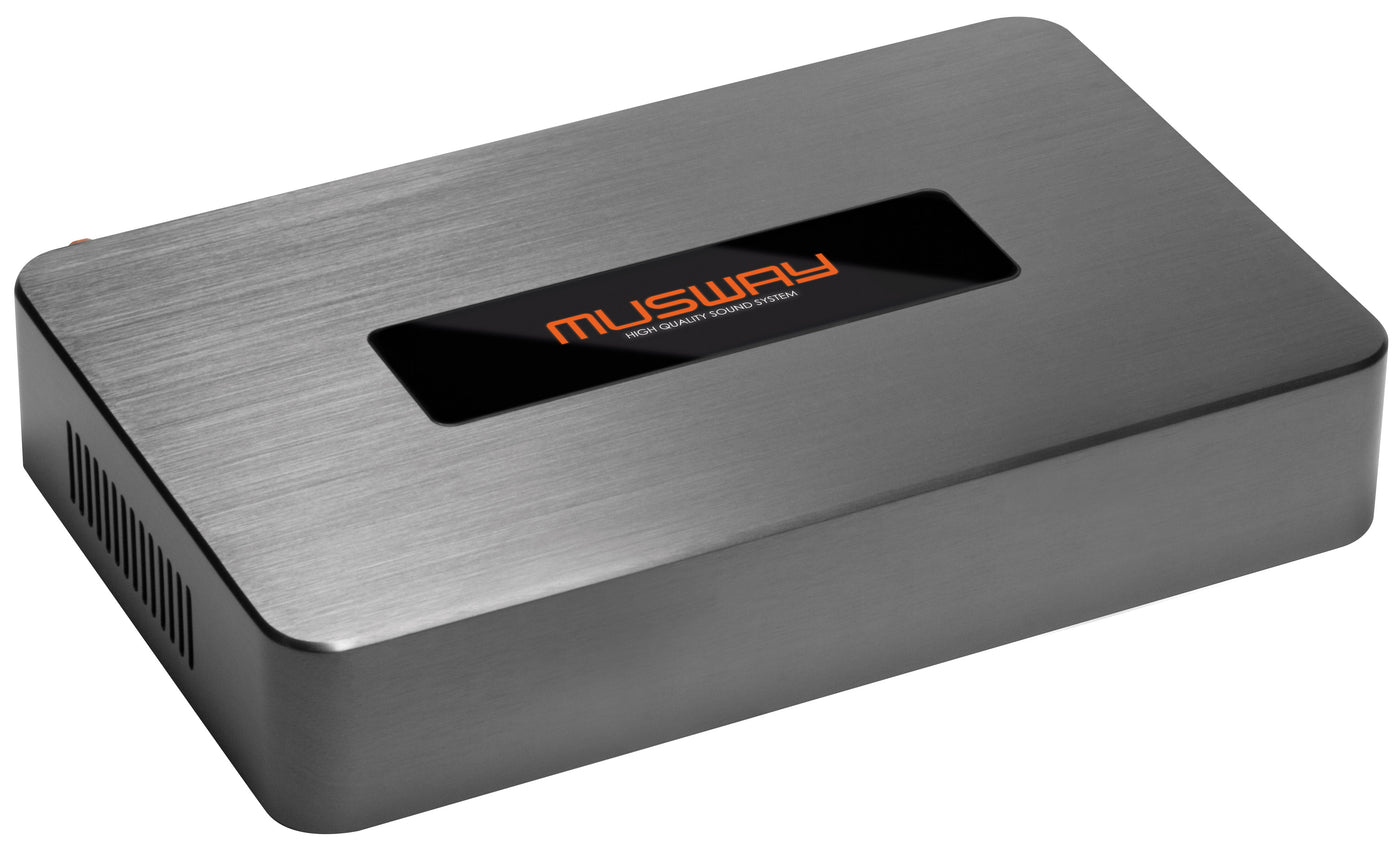

MUSWAY D8v4 8CH DSP Amplifier

DSP Amplifier

£689.99
Available to order

The MUSWAY D8v4 8CH DSP Amplifier is a MUSWAY dsp amplifier for active car audio upgrades where tuning control and compact installation matter. It is suited to builds needing dsp, class d, optical input. Use the feature and technical specification sections below...

At a glance SKU D8V4
Amplifier channels70 W x 8 @ 4 Ω; 100 W x 8 @ 2 Ω; 125 W x 8 @ 2 Ω with DHR; 200 W x 4 bridged @ 4 Ω
DSP channels10-channel DSP
Power ratings8 x 70/100 Watts RMS @ 4/2 Ohms or
Amplifier class8-channel DSP amplifier with Dynamic Headroom technology
Impedance2 Ohm, 4 Ohm
Dimensions205 x 37 x 127 mm
Technical overview DSP platform and product features
DSP chip / platformBurr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
Signal-to-noise ratio95 dB A-weighted
DSP channels10-channel DSP
Sample rate96 kHz optical PCM input
DSP precision32-bit DSP, 330 MHz clock; optical input up to 96 kHz/24-bit
System roleIntegrated amplifier stage
Product-specific features
  • Dual 32bit, 330 MHz DSP technology, controllable via PC software or Smartphone App
  • Dual 32bit, 330 MHz DSP technology, controllable via PC software or Smartphone App
  • Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
  • Digital Remote Controller with Display to control the DSP Functions
  • Optional: Bluetooth® Dongle for
  • Audio Streaming & App Control
  • Optional: External Bluetooth® USB-Dongles BTS , BTS-HD & BTA2 for Audio Streaming & App Control (optional)
  • 1 x Optical Input/Stereo PCM
Overview & features

The MUSWAY D8v4 8CH DSP Amplifier is a MUSWAY dsp amplifier for active car audio upgrades where tuning control and compact installation matter. It is suited to builds needing dsp, class d, optical input.

Use the feature and technical specification sections below to compare channels, RMS output, impedance support, tuning options and installation details before ordering. Key installation details and specifications are listed below.

Download the D8V4 owner manual

Key Features
  • 8-CHANNEL CLASS D AMPLIFIERS WITH 10-CHANNEL DSP
  • Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
  • Dual 32bit, 330 MHz DSP technology, controllable via PC software or Smartphone App
  • Soft-Clipping (power attenuation) in 2 Ohm operation
  • Signal-to-noise Ratio 90dB
  • Frequency Response 15 Hz – 22 kHz (-3dB)
  • THD 0,1% (1 kHz, 4 Ohms, 90% Power)
Power Ratings
  • 8 x 70/100 Watts RMS @ 4/2 Ohms or
  • 4 x 200 Watts RMS @ 4 Ohms bridged
  • Dynamic Headroom Technology (DHR)*:
  • Channel 1-8: per Channel up to 125 Watts RMS @ 2 Ohms
DSP & Tuning
  • 8-CHANNEL CLASS D AMPLIFIERS WITH 10-CHANNEL DSP
  • Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
  • Dual 32bit, 330 MHz DSP technology, controllable via PC software or Smartphone App
  • Frequency Response 15 Hz – 22 kHz (-3dB)
  • Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
  • Digital Remote Controller with Display to control the DSP Functions
  • Compatible with all DSP models
  • Bluetooth® Dongle for
  • Audio Streaming & App Control
  • Compatible with the DSP models TUNE12, DSP68, M6v3/v4, M4+v3/v4, D8v3/v4, M10, M12, M5
  • for D8 DSP Amplifiers
Inputs & Outputs
  • High Level Input with EPS ® (Error Protection System)
  • External Bluetooth® USB-Dongles BTS , BTS-HD & BTA2 for Audio Streaming & App Control (optional)
  • 8 x High Level Input with EPS ®
  • 1 x Optical Input/Stereo PCM
  • 8 x Loudspeaker Output amplified
  • 2 x Pre-Amplifier Output RCA (configurable via DSP)
Dimensions & Installation
  • Frequency Response 15 Hz – 22 kHz (-3dB)
  • THD 0,1% (1 kHz, 4 Ohms, 90% Power)
  • Start-Stop ready, Auto Turn-On
  • Dimensions: 205 x 37 x 127 mm
Additional specifications
Amplifier class
8-channel DSP amplifier with Dynamic Headroom technology
Power / voltage
7.6-17.3 VDC
Amplified channels
70 W x 8 @ 4 Ω; 100 W x 8 @ 2 Ω; 125 W x 8 @ 2 Ω with DHR; 200 W x 4 bridged @ 4 Ω
Inputs / outputs
8 high-level and low-level inputs; optical input; CH9/CH10 RCA preamp outputs; 8 speaker outputs; USB PC input; optional Bluetooth dongle and remote
Frequency response
15 Hz-22 kHz (-3 dB)
Signal-to-noise ratio
95 dB A-weighted
Total harmonic distortion
0.01% (1 kHz @ 4 Ω, 10 W)
Weight
1.5 kg
Sample rate
96 kHz optical PCM input
Bit depth
32-bit DSP, 330 MHz clock; optical input up to 96 kHz/24-bit
Bluetooth / expansion
Optional external MUSWAY Bluetooth dongle and optional digital remote; MUSWAY DSP software via USB
Downloads
MUSWAY D8V4 user manual MUSWAY D8V4 manual MUSWAY D8V4 datasheet MUSWAY D8V4 manual
