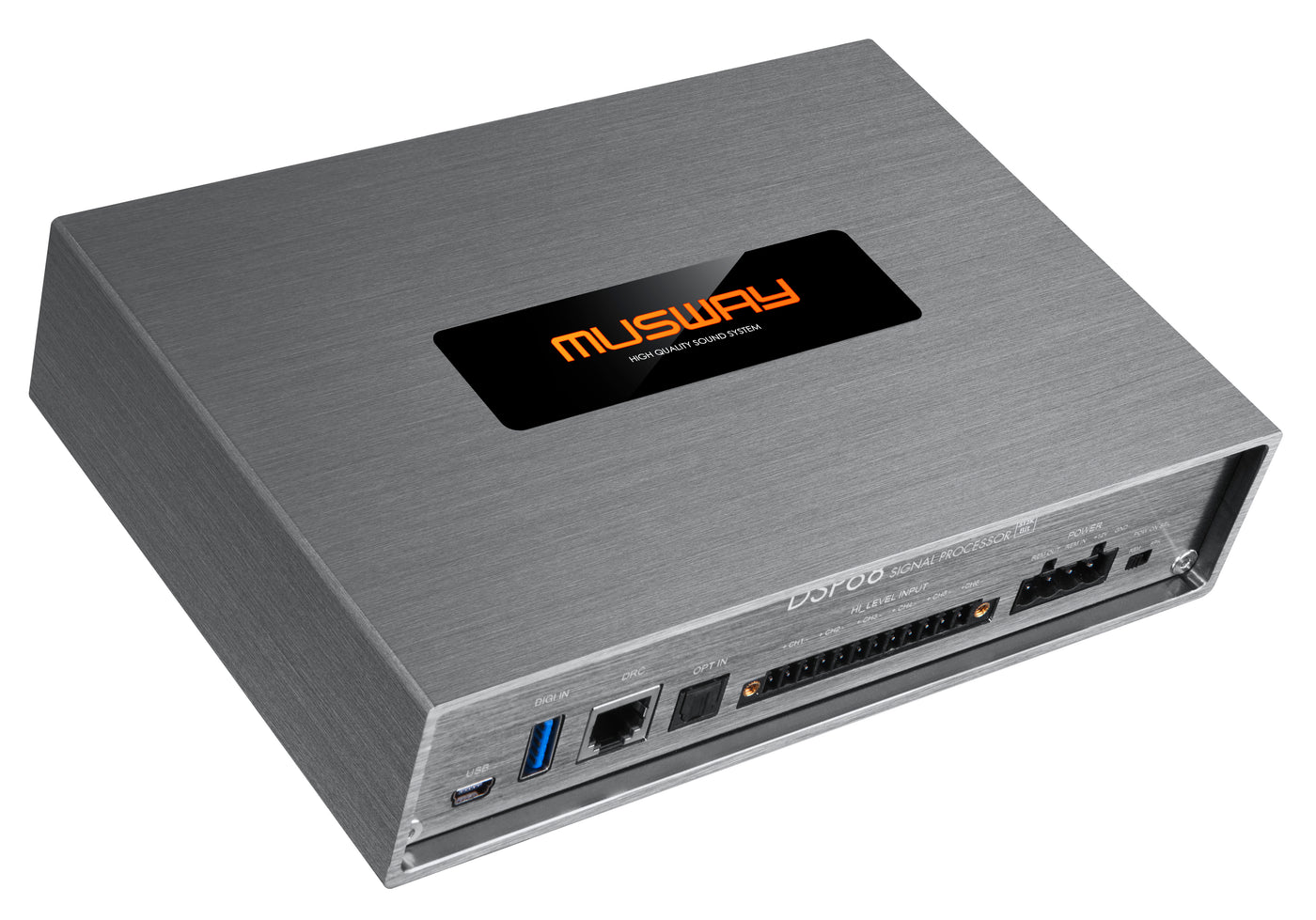

Musway DSP68-512K - 8-CHANNEL DSP WITH PC/APP CONTROL
DSP Amplifier
8-CHANNEL DSP WITH PC/APP CONTROLThe sound of the standalone DSP68 processor is in top form, and the features are also unique in this price range: In addition to a stereo AUX input, there are 6 RCA and high level inputs. The latter...
- 8-CHANNEL DSP WITH PC/APP CONTROL
- 1 x Optical Input/Stereo PCM
Overview & features
8-CHANNEL DSP WITH PC/APP CONTROL
The sound of the standalone DSP68 processor is in top form, and the features are also unique in this price range: In addition to a stereo AUX input, there are 6 RCA and high level inputs. The latter can be operated without compression up to 21 volts RMS and come with the proprietary developed load detection protection circuit EPS ® . Those who like it completely audiophile can control the DSP68 via an optical digital input. With this more than complete equipment, the DSP68 received a lot of praise and the price tip in the Car & Hifi Test 02/2021.
Owner manual: download PDF
Technical overview
- Frequency response
- 15 Hz-22 kHz (-3 dB)
- Signal-to-noise ratio
- 95 dB A-weighted
- Total harmonic distortion
- 0.05% THD (1 kHz @ 4 Ω, 90% power)
- DSP channels
- 8 DSP channels
- Sample rate
- 96 kHz optical PCM input
- Bit depth
- 32-bit DSP; 24-bit optical PCM input
Installation
- Dimensions
- 181 x 123.5 x 41 mm
- Weight
- 0.4 kg
Additional specifications
- DSP chip / platform
- 32-bit DSP, 330 MHz clock speed
- Power / voltage
- 7-15 VDC
- Inputs / outputs
- 6 high-level inputs; 6 RCA low-level inputs; 2 RCA AUX inputs; 8 RCA pre-outputs; 1 optical input
- Bluetooth
- Optional external Bluetooth dongle via USB input; PC/app control via USB
