Musway

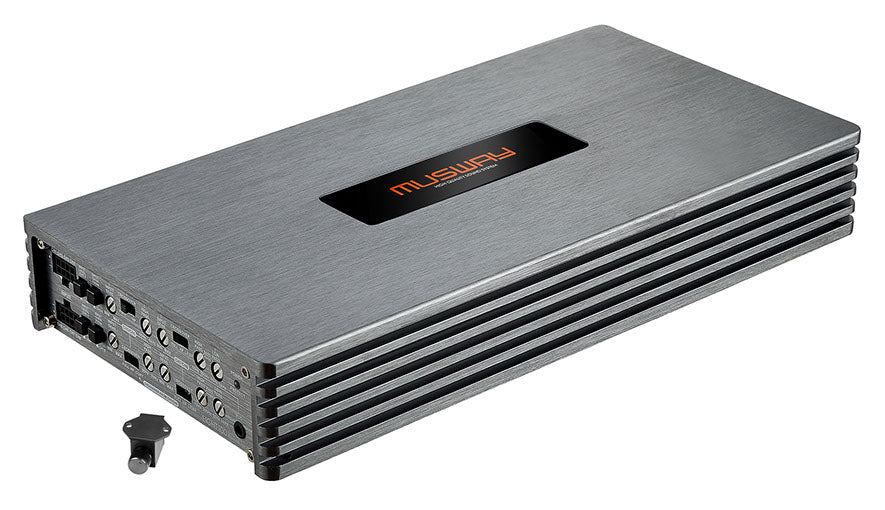

MUSWAY EIGHT100 8-Channel Class D Amplifier

8-Channel Class D Amplifier

£650.00
Available to order
Amplifier 8 Channel+ 300W to 500W 2 Ohm, 4 Ohm Manual included Multi channel system

The MUSWAY EIGHT100 8-Channel Class D Amplifier is a MUSWAY amplifier for multi-channel system builds that need clean power in a tidy installation. It is suited to builds needing class d, high level input, remote control.

Use the feature and technical specification sections below to compare channels, RMS output, impedance support, tuning options and installation details before ordering. Key installation details and specifications are listed below.

Download the EIGHT100 owner manual

Best for multi-speaker builds Compare channel count, RMS output and dimensions below to confirm it suits the system layout.
WhatsApp compatibility help Email us
Features
• Start-Stop ready, Auto Turn-On
• EPS ® (Error Protection System)
• Interference Free Technology, EMC proved
• Brushed aluminum heat sink and end panels
• Compact Bass Level Remote Controller
Technical Specifications
Power Ratings
• 8 x 100/180 Watts RMS @ 4/2 Ohms
• 4 x 360 Watts RMS @ 4 Ohms bridged

Dsp & Tuning
• Compact Bass Level Remote Controller
• Highpass Filter 50 - 5000 Hz (CH1/2 & CH5/6)
• Highpass Filter 10 - 500 Hz (CH3/4 & CH7/8)
• Lowpass Filter 50 - 5000 Hz (CH3/4 & CH7/8)
• Bass Remote Controller

Inputs & Outputs
• High and Low Level Inputs
• RCA Inputs
• High Level Inputs with EPS ®

Dimensions & Installation
• Start-Stop ready, Auto Turn-On
• Dimensions: 150 x 45 x 300 mm
Downloads and support
Download owner manual PDF manual hosted by TenderSounds.
