ESX Audio
ESX VNA-RCAM-CS240HD Dual HD Night Vision Camera
Installation Accessory
Why choose this product?

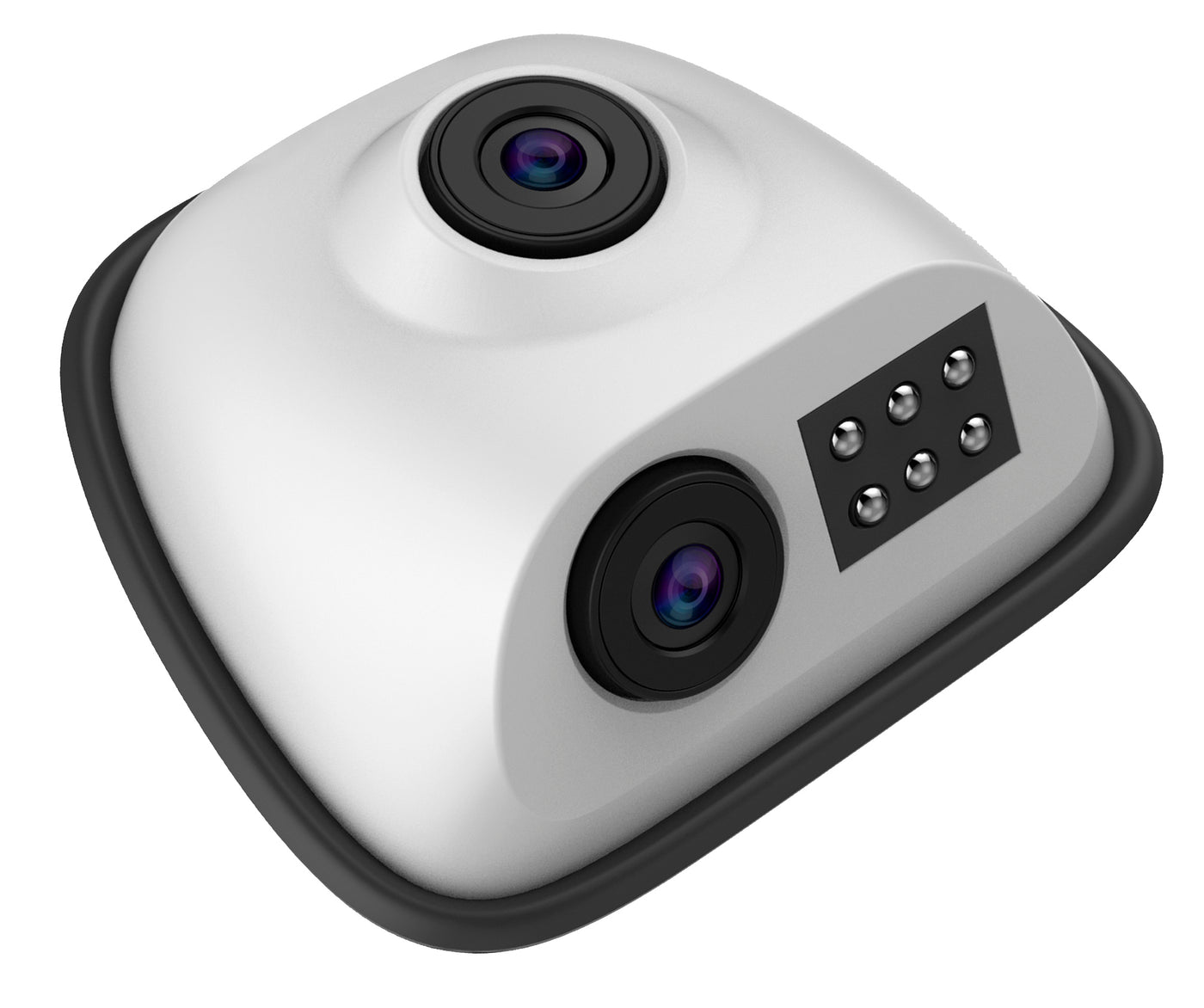

ESX VNA-RCAM-CS240HD is a universal dual HD build-on reversing camera with near and distant vision for compatible ESX Android/naviceiver AHD camera inputs.
Key Features
- Night Vision HD dual build-on camera with near and distant vision
- 2 x 720P Analog High Definition camera sensors
- 1280 x 720 px / 1 megapixel resolution
- Near vision 178 degree diagonal viewing angle
- Distant vision 110 degree diagonal viewing angle
- 6 IR LEDs for night vision support
- IP69K camera protection with IP68 screw-type QSM 6-pin connector
- Rapid Switch quick camera-view activation and view switching
Technical Details
- Model: VNA-RCAM-CS240HD
- Sensor: 2 x 720P Analog High Definition
- Resolution: 1280 (H) x 720 (V) px / 1 megapixel
- Viewing angle: near 178 degrees diagonal / distant 110 degrees diagonal
- Photosensitivity: 0.1 Lux (F1.2 AGC on) to 0.0 Lux (IR-LED on)
- Mirror function: optional
- Protection class: IP69K
- Connector: 1 x QSM 6-pin male, screw type, IP68
- Dimensions: 120 x 113 x 52 mm
For HD camera use, check that the head unit has the correct AHD camera input before ordering. ESX lists compatibility with Android i30/i40/i60/i61 Naviceivers and other devices with special AHD input; it is not compatible with the VN1030 Moniceiver.
