Current version

This product replaces an earlier version.

Confirmed newer/active variant for DBX-206Q. Old-side superseded/replaced_by is intentionally pending until this draft is approved for Online Store publication.

Older version: Esx Dbx Dual Reflexbox Dbx-206Q

ESX Audio

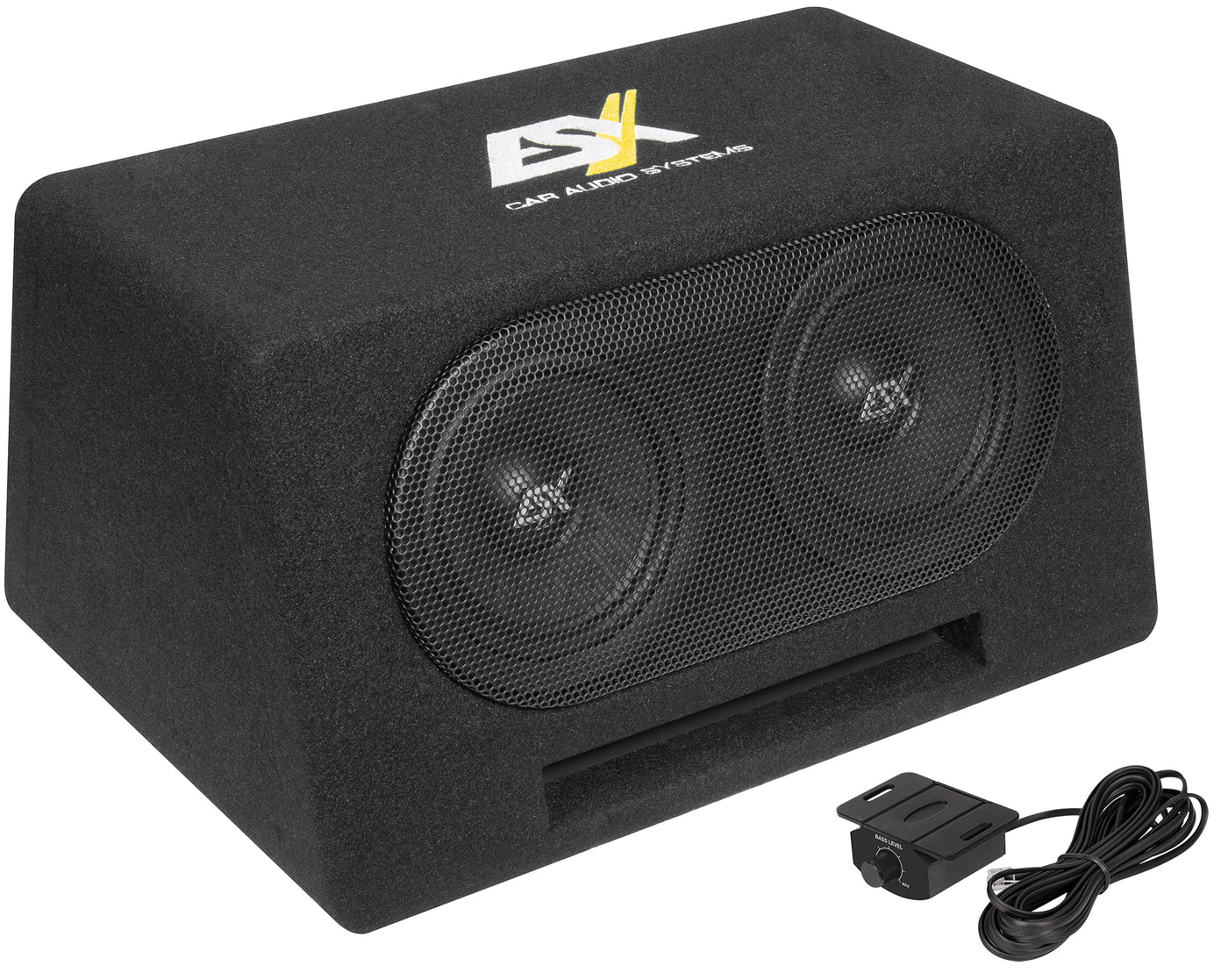

ESX DBX206QA Active Dual 6.5" Subwoofer System

Active

£349.99
Available to order
Active SKU DBX206QA
Tech specs Shown below
Manuals/downloads Where supplied
Warranty Manufacturer backed
Match enclosure and amplifier power Use the product details and message us if you want help pairing this with the right amp or box.
Why choose this product?

The active ESX DBX206A bassreflex system with trapezoidal housing is equipped with protective grilles, which optimally protect the high-quality woofers with scooped paper cones. These are equipped with a resilient 38 mm voice coil and ensure powerful bass. The amplifier in this special model is the award-winning POWER4 active module, which is in no way inferior to an adult monoblock in terms of features and performance.

Key features

  • 2 x 16,5 cm (6.5”) Active Dual Subwoofer System Efficient Class D Mono Amplifier
  • 1 x 300/600 Watts RMS/Max.
  • Efficiency up to 84%
  • LPF 40-120 Hz @ 12 dB
  • Phase Shift 0°/180°
  • Bass Boost 0-6dB @ 45Hz
  • RCA Low Level Input
  • High Level Input
  • Auto Turn-On Function (DC or signal)
  • Start-stop capable, 5 sec./ up to 7 Volts
  • EPS® PRO with 10R / 150R / 600R (switchable)
  • Input Sensitivity 15 or 40 Volts (switchable)
  • Triple Limiter Function, Clipping LED
  • Bass Remote Controller
  • 38 mm (1.75") Voice Coils
  • Subwoofers with Scooped Paper Cone
  • Subwoofer Protection Grilles High-quality Logo Embroidery
  • Robust Carpet Cover
  • Dimensions 46 x 25 x 33/21 cm
Key features
  • 2 x 16.5 cm / 6.5 inch active dual subwoofer system
  • Integrated efficient Class D mono amplifier
  • Bass remote controller included
  • RCA low-level input and high-level input
  • Auto turn-on function with DC or signal detection
  • EPS PRO with 10R / 150R / 600R switchable impedance
  • Protective grilles and robust carpet cover
Technical details
  • Power rating: 1 x 300/600 W RMS/Max
  • Efficiency up to 84%
  • Low-pass filter: 40-120 Hz @ 12 dB
  • Phase shift: 0° / 180°
  • Bass boost: 0-6 dB @ 45 Hz
  • Input sensitivity: 15 or 40 V switchable
  • Start-stop capable: 5 sec / up to 7 V
  • Dimensions: 46 x 25 x 33/21 cm
Downloads and support

Check enclosure type, amplifier matching, available space and dimensions before ordering. Message us if you want help matching the product to the right amplifier or installation position.

We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
Manual or fitting data may be available on request.
