ESX Audio

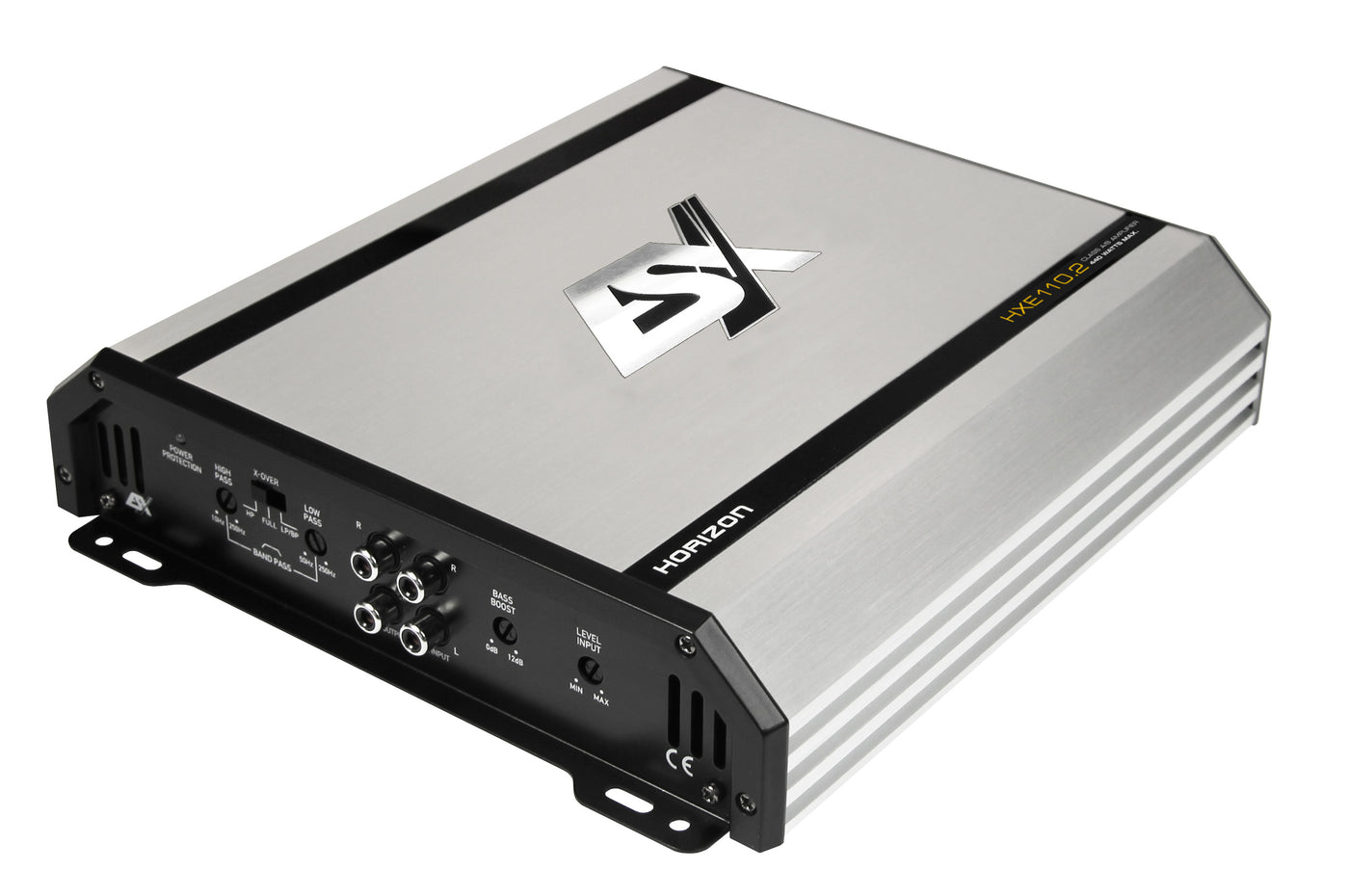

ESX Audio HXE110.2 2-Channel Class A/B Analog Amplifier

DSP Amplifier

£89.99
Available to order

The HORIZON HXE HXE110.2 is a compact 2-channel Class A/B analogue amplifier with solid construction, flexible filtering and practical OEM-integration features. Key specifications 2-Channel Class A/B Analog Amplifier 2 x 70/110 Watts RMS @ 4/2 Ω 1 x 220 Watts RMS bridged...

At a glance SKU HXE110.2
Amplifier channels2 channels; 2 x 70 W RMS @ 4 Ω; 2 x 110 W RMS @ 2 Ω
Dimensions220 x 51 x 262 mm (W x H x L)
Technical overview DSP platform and product features
Signal-to-noise ratio>90 dB
System roleIntegrated amplifier stage
Overview & features

The HORIZON HXE HXE110.2 is a compact 2-channel Class A/B analogue amplifier with solid construction, flexible filtering and practical OEM-integration features.

Key specifications

  • 2-Channel Class A/B Analog Amplifier
  • 2 x 70/110 Watts RMS @ 4/2 Ω
  • 1 x 220 Watts RMS bridged @ 4 Ω
  • HPF 10-250 Hz
  • LPF 50-250 Hz
  • Bass Boost 0-12 dB
  • Bandpass Mode
  • Dimensions 220 x 51 x 262 mm
  • Efficiency up to 62%

Manufacturer source: ESX product page
Manual: Owner's manual

Power & channels
Amplified channels
2 channels; 2 x 70 W RMS @ 4 Ω; 2 x 110 W RMS @ 2 Ω
Technical overview
Frequency response
5-40,000 Hz (-3 dB)
Signal-to-noise ratio
>90 dB
Total harmonic distortion
<0.5% (1 kHz)
Installation
Dimensions
220 x 51 x 262 mm (W x H x L)
Additional specifications
Power / voltage
+12 V (9-15 V), negative ground; 2 x 70 W RMS @ 4 Ω; 2 x 110 W RMS @ 2 Ω
Inputs / outputs
RCA stereo input; stereo full-range line outputs for an additional amplifier; 2-channel speaker outputs
Low-pass filter
250 Hz
High-pass filter
250 Hz
Bass boost
12 dB
Downloads
HXE110.2 manual
