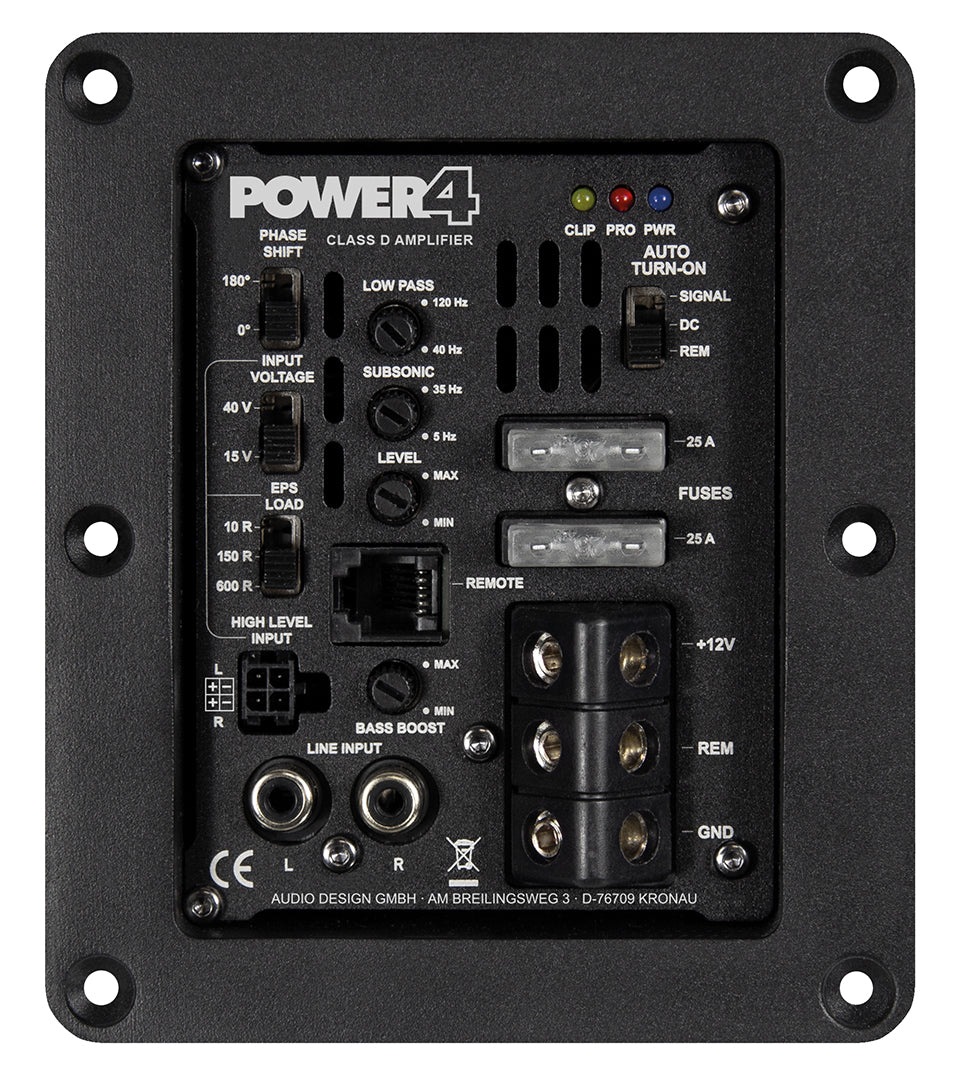

POWER4

Class D Active Module for Subwoofer Enclosures (4 Ω Version) Efficient Class D Mono Amplifier 1 x 460 Watts RMS @ 4 Ω Efficiency up to 84% LPF 40-120 Hz @ 12 dB Phase Shift 0°/180° Bass Boost 0-6dB @ 45Hz RCA Low Level Input High Level Input Auto Turn-On Function (DC or signal) Start-stop capable, 5 sec./ up to 7 Volts EPS® PRO with 10R / 150R / 600R (switchable) Input Sensitivity 15 or 40 Volts (switchable) Triple Limiter Function, Clipping LED Bass Remote Controller Suitable for housings with Quick Connect terminals Dimensions 113 x 130 x 125mm Mounting hole: 85 x 109 mm
