ESX Q-FOURv3-24V 4-Channel Class D Amplifier

4 Channel Amplifier

£234.99
Available to order
4 Channel Amplifier 4 Channel SKU Q-FOURv3-24V Manual included
Fitment System planning support
Tech specs Shown below
Manuals/downloads Download linked
Warranty Manufacturer backed
Plan the system before checkout Check channel layout, power, impedance and DSP requirements before choosing wiring or speakers.
Why choose this product?

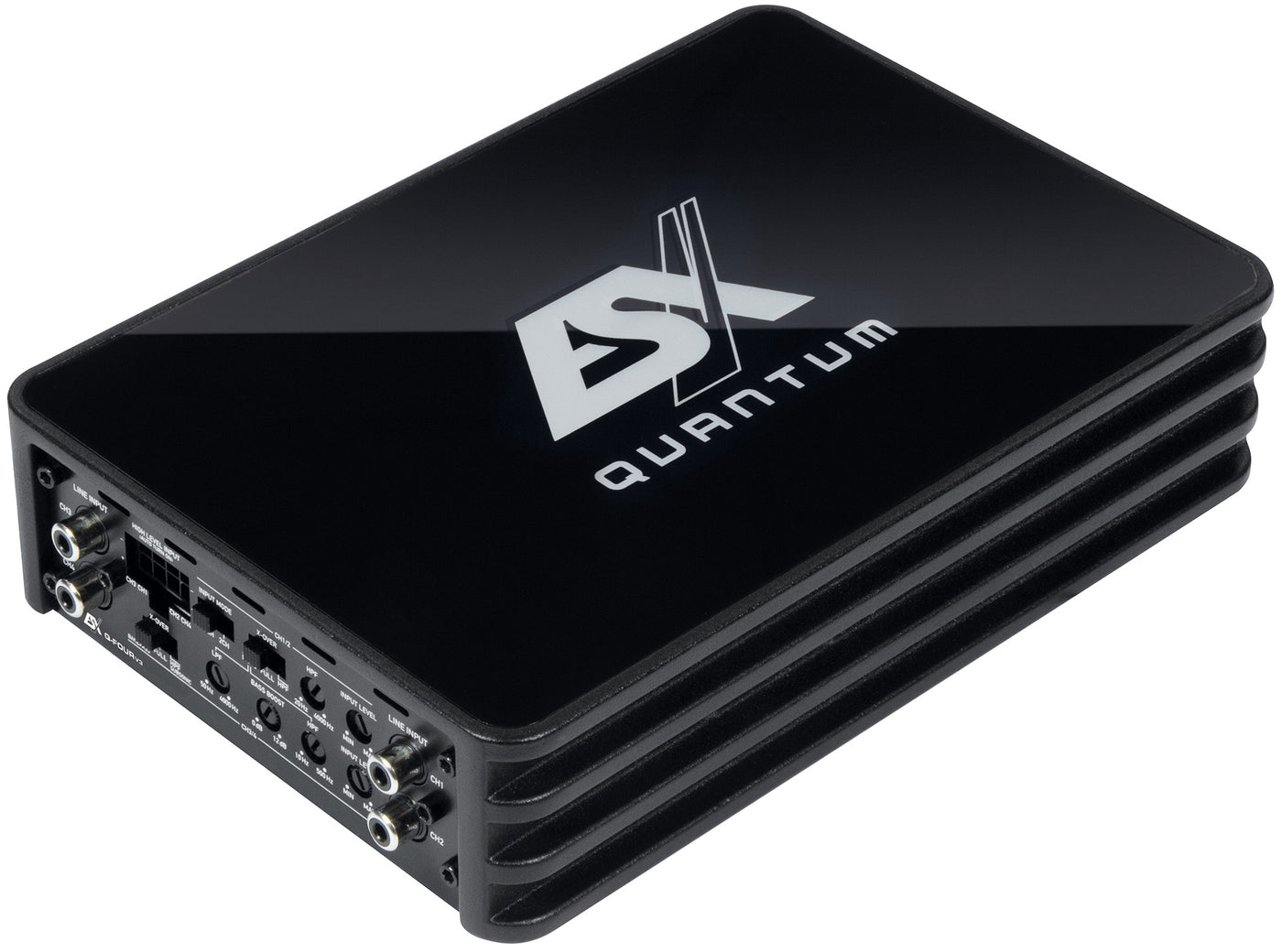

The ESX Q-FOURv3-24V is a compact QUANTUM Q 4-channel Class D amplifier for 24 volt truck and coach systems, with Constant Power output, high-level EPS inputs, Auto Turn-On, Start/Stop readiness, flexible HPF/LPF filtering and a small 150 x 50 x 220 mm chassis.
Why choose the ESX Q-FOURv3-24V
4-channel QUANTUM Q V3 Class D compact digital amplifier for 24V truck and coach systems, with Constant Power output, high-level inputs with EPS, Auto Turn-On, Start/Stop readiness, heavy die-cast heatsink, acrylic cover, HPF/LPF filtering, Bass Boost, 150 x 50 x 220 mm chassis and up to 84% efficiency.
Technical specifications
Amplifier type: 4-channel Class D compact digital amplifier Vehicle voltage: 24V truck and coach electrical systems Power output: 4 x 100W RMS at 4 ohm; 4 x 120W RMS at 2 ohm Constant Power Bridged output: 2 x 200W RMS at 4 ohm Inputs: high-level inputs with Error Protection System (EPS) Turn-on: Auto Turn-On Function; Start/Stop ready Crossover: HPF CH1/2 20-4000 Hz; HPF CH3/4 10-500 Hz; LPF CH3/4 50-4000 Hz Channel routing: Dupe Mode CH3/4 to CH1/2 Bass boost: 0-12 dB Dimensions: 150 x 50 x 220 mm Efficiency: up to 84%
Compatibility and support

For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.

We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
Download owner manual Manufacturer documentation supplied where available.

Need fitment help?

Ask before ordering if the vehicle, wiring or DSP setup is unclear.

Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.
