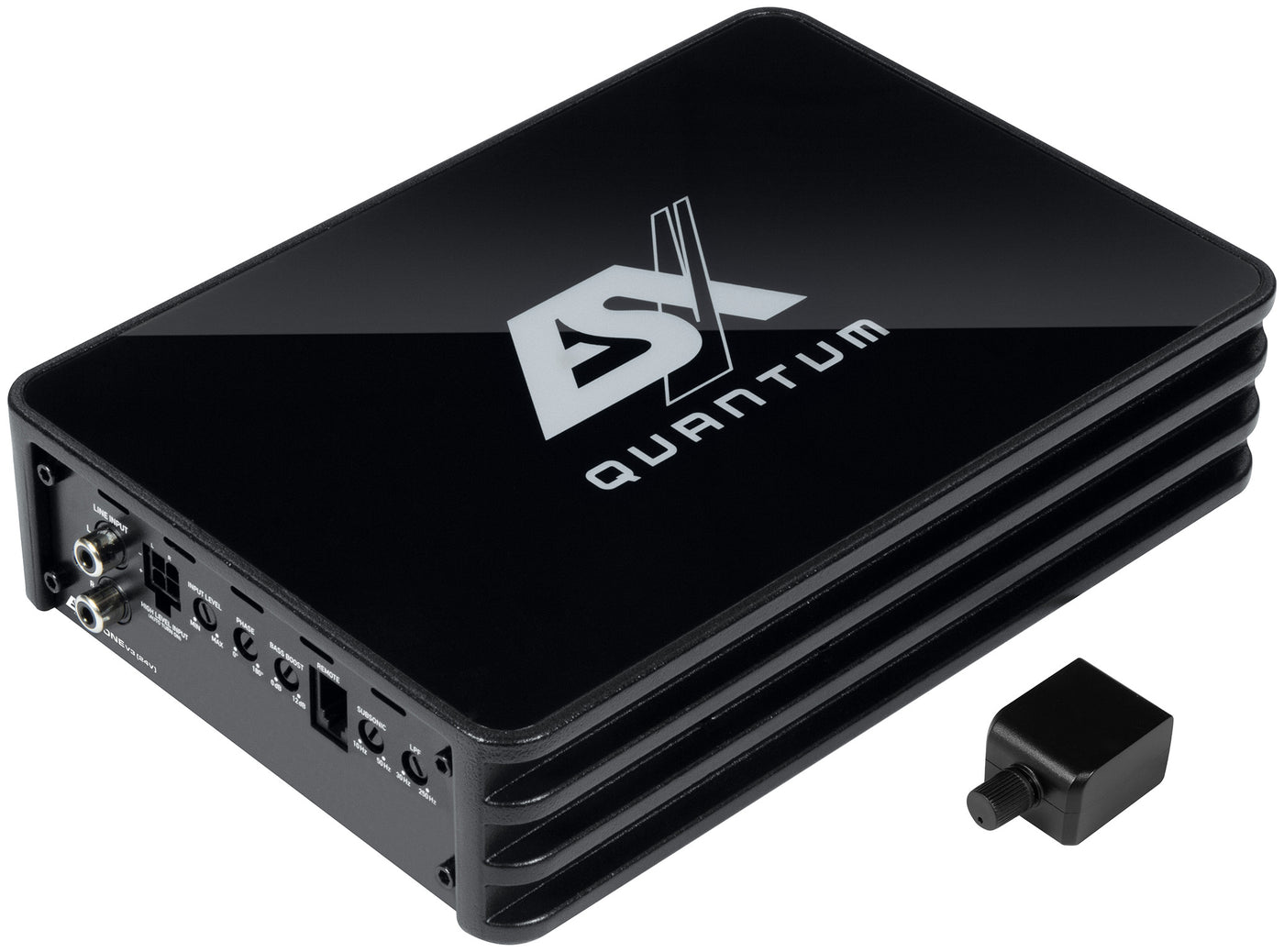

ESX Q-ONEv3-24V Mono Class D Amplifier

Amplifier

£219.99
Available to order

The ESX Q-ONEv3-24V is a compact QUANTUM Q mono Class D amplifier for 24 volt truck and coach systems, with 1 x 700W RMS at 1 ohm, high-level EPS inputs, Auto Turn-On, Start/Stop readiness, subsonic/low-pass filtering and a compact bass remote controller.

At a glance SKU Q-ONEv3-24V
Amplifier channels1
Power at 2Ω1 x 500W RMS
Amplifier classClass D
Dimensions150 x 50 x 220 mm
Overview & features
The ESX Q-ONEv3-24V is a compact QUANTUM Q mono Class D amplifier for 24 volt truck and coach systems, with 1 x 700W RMS at 1 ohm, high-level EPS inputs, Auto Turn-On, Start/Stop readiness, subsonic/low-pass filtering and a compact bass remote controller.
Power & channels
Channels
1
Amplifier class
Class D
RMS power at 4 ohms
1 x 300W RMS
RMS power at 2 ohms
1 x 500W RMS
RMS power at 1 ohm
1 x 700W RMS
DSP processing & amplifier stage
Frequency response
10-250 Hz (-3 dB)
Signal-to-noise ratio
> 90 dB
Inputs
via enclosed cable jack
Installation
Operating voltage
24V (20-32V), negative ground
Dimensions
150 x 50 x 220 mm
Additional specifications
Nominal impedance
1-8 ohm
Sensitivity
up to 84%
Total harmonic distortion
< 0.1% (80 Hz)
Low-pass filter
30-250 Hz @ 24 dB/octave
Bass boost
0-12 dB @ 45 Hz
Downloads
ESX Q-ONEv3-24V Mono Class D Amplifier manual ESX Q-ONEv3-24V Mono Class D Amplifier datasheet
