Q800A — 8-inch (20 cm)

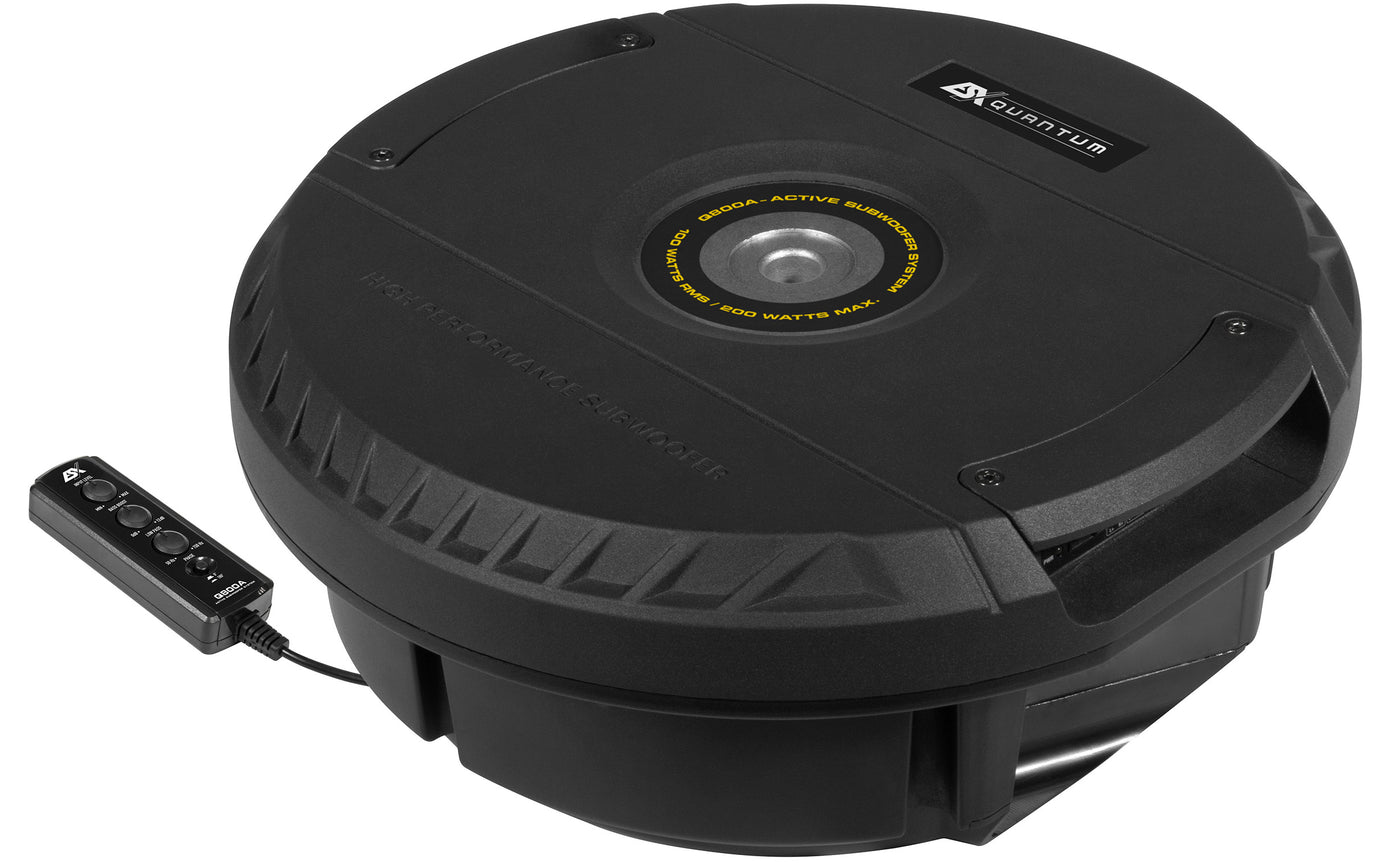

The QUANTUM Q800A active subwoofer carries the genes of the V1100A, which came out on top in the 4/2018 edition of the Car & Hifi magazine as test winner in the compact class. The Q800A uses a slightly smaller 20 cm (8 inch) subwoofer in an enclosure made from a combination of aluminum and plastic. The ingenious design allows a long bass reflex channel to be built into the case around the subwoofer to elicit more bass from the woofer than usual. The special subwoofer has been trimmed to very high efficiency, but without neglecting the lowest frequencies. It also has an extra reinforced fiberglass cone to withstand the high pressures inside the case. A fully equipped class A/B amplifier with a power of up to 200 watts provides plenty of power. Due to the small diameter of just 36 cm, the Q800A not only fits into spare wheel wells without spare wheels, it can also be mounted directly inside a spare wheel (from approx. 15 inches) with the supplied screw.

20 cm (8”) Active Subwoofer System Suitable for Spare Wheel Recess or Rim (from 15-inch) Integrated Class A/B Amplifier 1 x 100 Watts RMS / 1 x 200 Watts Max. LPF 50-150 Hz Bass Boost 0-12dB @ 45 Hz Subsonic 20 Hz fixed Phase Shift 0/180° RCA Inputs High Level Inputs Auto Turn-On Function Remote Controller for Bass Boost, LPF and Phase Dimensions Ø 360 x 145 mm
