ESX Audio

ESX Audio QE1500.1 1-Channel Class D Digital Amplifier

DSP Amplifier

£384.99
Available to order

The ESX QUANTUM QE1500.1 is a high-power mono Class D digital amplifier with variable filtering, phase control and a compact level remote for subwoofer systems. Key specifications Mono Class D Digital Amplifier 1 x 450/850/1500 Watts RMS @ 4/2/1 Ω Subsonic 10-40...

At a glance SKU QE1500.1
Amplifier channels1 channel; 1 x 500 W RMS @ 4 Ω; 1 x 850 W RMS @ 2 Ω; 1 x 1500 W RMS @ 1 Ω
Amplifier classClass D; digital
Technical overview DSP platform and product features
Signal-to-noise ratio>81 dB
System roleIntegrated amplifier stage
Overview & features

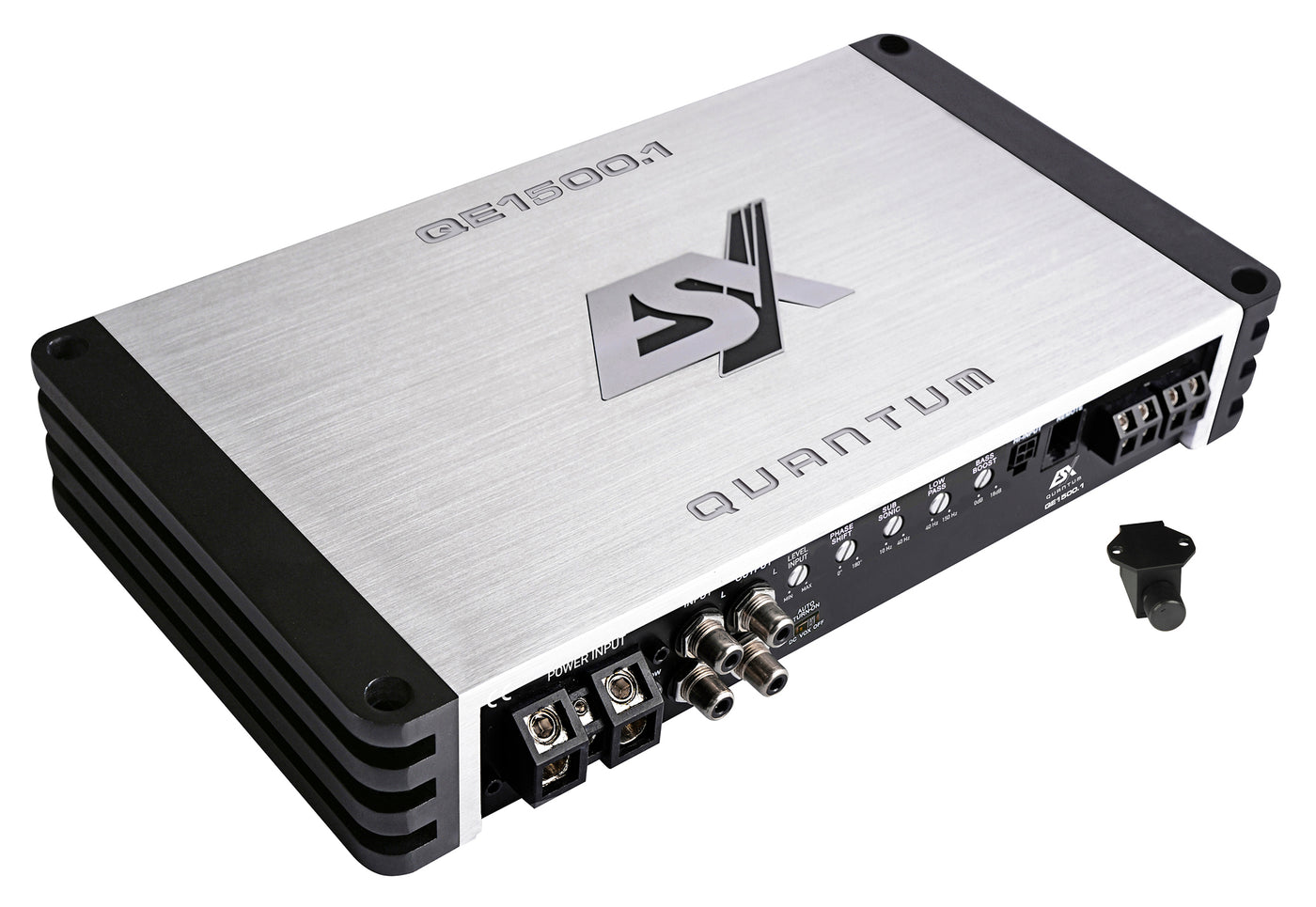

The ESX QUANTUM QE1500.1 is a high-power mono Class D digital amplifier with variable filtering, phase control and a compact level remote for subwoofer systems.

Key specifications

  • Mono Class D Digital Amplifier
  • 1 x 450/850/1500 Watts RMS @ 4/2/1 Ω
  • Subsonic 10-40 Hz
  • LPF 40-150 Hz
  • Bass Boost 0-18 dB
  • Phase Shift 0-180°
  • Dimensions 280 x 46 x 165 mm
  • Efficiency up to 90%

Manufacturer source: ESX product page
Manual: Owner's manual

Power & channels
Amplifier class
Class D; digital
Amplified channels
1 channel; 1 x 500 W RMS @ 4 Ω; 1 x 850 W RMS @ 2 Ω; 1 x 1500 W RMS @ 1 Ω
Technical overview
Frequency response
10-150 Hz (-3 dB)
Signal-to-noise ratio
>81 dB
Total harmonic distortion
<0.01%
Additional specifications
Low-pass filter
150 Hz
Bass boost
18 dB
Downloads
QE1500.1 manual
