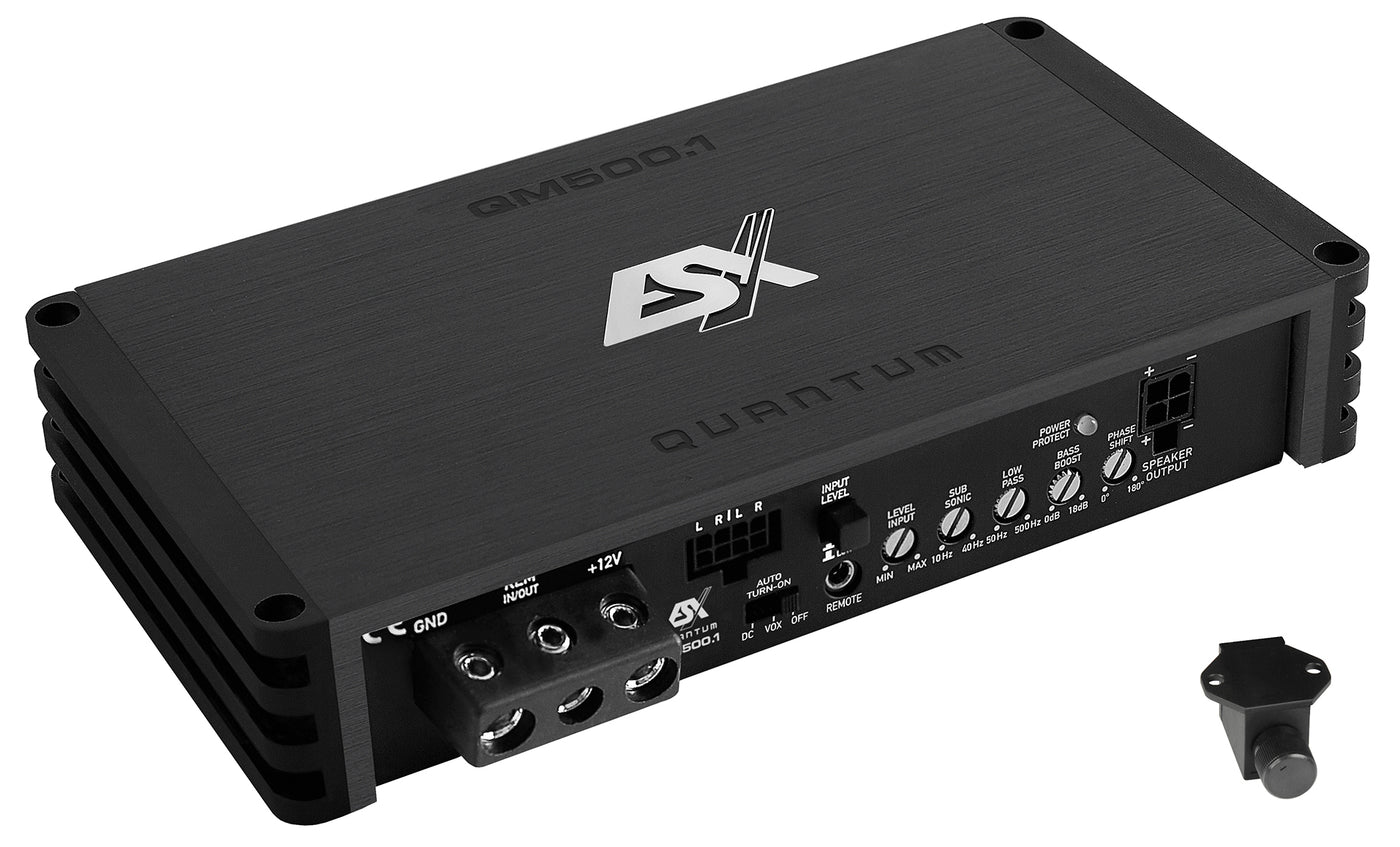

ESX Audio QM500.1 1-Channel Class D Mini Digital Amplifier

DSP Amplifier

£209.99
Available to order

The ESX QUANTUM QM500.1 is a compact mono Class D mini digital amplifier measuring just 190 x 35 x 102 mm, with high-level integration, automatic turn-on and a bass-level remote. Key specifications Mono Class D Mini Digital Amplifier 1 x 280/500 Watts...

At a glance SKU QM500.1
Amplifier channels1 channel; 1 x 280 W RMS @ 4 Ω; 1 x 500 W RMS @ 2 Ω
Amplifier classClass D; digital
Dimensions190 x 35 x 102 mm (W x H x L)
Technical overview DSP platform and product features
Signal-to-noise ratio>98 dB
System roleIntegrated amplifier stage
Overview & features

The ESX QUANTUM QM500.1 is a compact mono Class D mini digital amplifier measuring just 190 x 35 x 102 mm, with high-level integration, automatic turn-on and a bass-level remote.

Key specifications

  • Mono Class D Mini Digital Amplifier
  • 1 x 280/500 Watts RMS @ 4/2 Ω
  • Subsonic 10-40 Hz
  • LPF 50-5000 Hz
  • Bass Boost 0-18 dB
  • Phase Shift 0-180°
  • Dimensions 190 x 35 x 102 mm
  • Efficiency up to 86%

Manufacturer source: ESX product page
Manual: Owner's manual

Power & channels
Amplifier class
Class D; digital
Amplified channels
1 channel; 1 x 280 W RMS @ 4 Ω; 1 x 500 W RMS @ 2 Ω
Technical overview
Frequency response
16-500 Hz (-3 dB)
Signal-to-noise ratio
>98 dB
Total harmonic distortion
<0.05%
Installation
Dimensions
190 x 35 x 102 mm (W x H x L)
Downloads
QM500.1 manual QM500.1 datasheet
