ESX QUANTUM Tweeter 25 mm QXE-6.2Tv2

Tweeter

£109.99
Available to order
Tweeter 25 mm (1 inch) 4 ohms SKU QXE6.2TV2 Verified downloads
At a glanceSKU QXE6.2TV2
Impedance4 ohms
Frequency response3500 - 24000 Hz
Mounting depth9 mm
Mounting diameter44 mm
Check the mounting space Confirm mounting depth, cut-out diameter, grille clearance and available space before ordering.
Why choose this product?

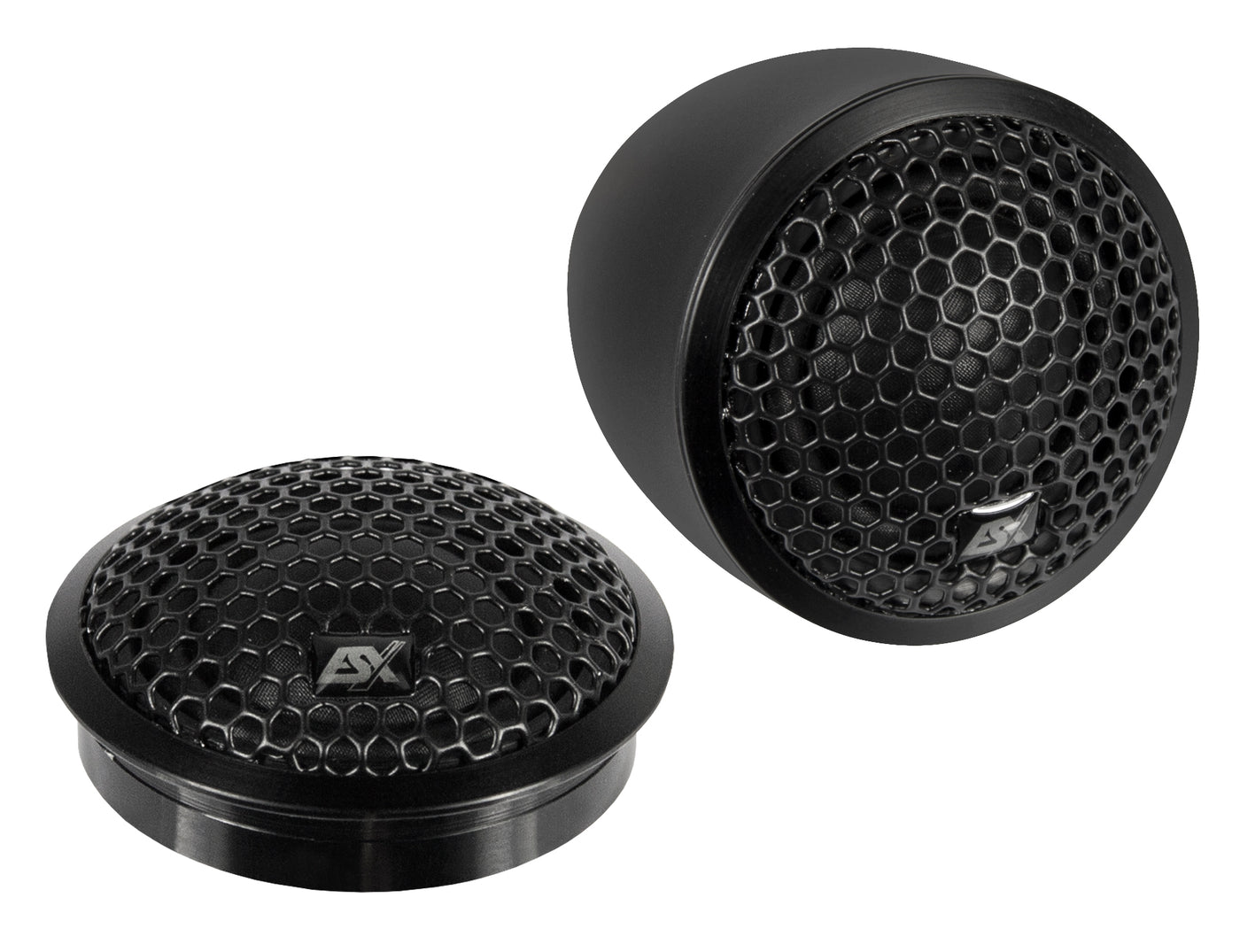

The ESX QUANTUM QXE6.2T V2 is a 25 mm silk dome neodymium tweeter pair for upgraded component speaker systems and custom installations.

The tweeter is designed for detailed high-frequency performance with flexible mounting options, including screwable brackets plus built-in and surface-mount housings.

Key specifications

  • 25 mm (1") Silk Dome Neodymium Tweeters
  • Power Rating 125 Watt/RMS, 250 Watt/Max.
  • Frequency Range 3500 - 24000 Hz
  • Impedance 4 Ω

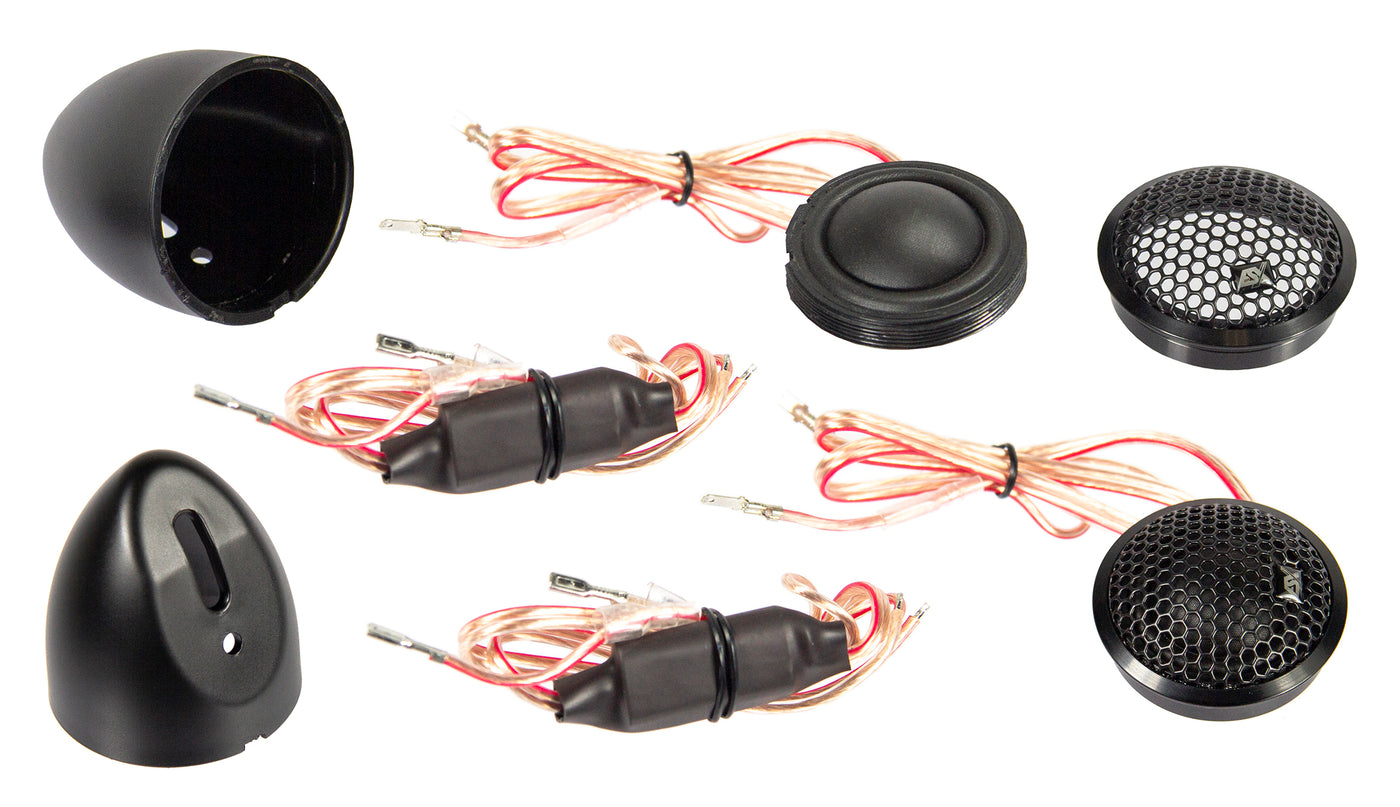

  • Screwable Tweeter Brackets for flexible Installation
  • Built-in and Surface Mount Housings
  • 6 dB Cable Crossovers
  • Installation depth 9 mm
  • Installation diameter 44 mm
Why choose this product?

The ESX QUANTUM QXE6.2T V2 is a 25 mm silk dome neodymium tweeter pair for upgraded component speaker systems and custom installations.

The tweeter is designed for detailed high-frequency performance with flexible mounting options, including screwable brackets plus built-in and surface-mount housings.

Key specifications

  • 25 mm (1") Silk Dome Neodymium Tweeters
  • Power Rating 125 Watt/RMS, 250 Watt/Max.
  • Frequency Range 3500 - 24000 Hz
  • Impedance 4 Ω
  • Screwable Tweeter Brackets for flexible Installation
  • Built-in and Surface Mount Housings
  • 6 dB Cable Crossovers
  • Installation depth 9 mm
  • Installation diameter 44 mm
Technical overview

Power & electrical

Nominal impedance
4 ohms

Acoustic & construction

Frequency response
3500 - 24000 Hz
Driver size
25 mm (1 inch)

Installation

Mounting depth
9 mm
Cut-out / installation diameter
44 mm

Crossovers

Crossover
6 dB cable crossovers
Compatibility and support

Confirm the available mounting depth, cut-out diameter, grille clearance and amplifier power before ordering. We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
ESX QUANTUM Tweeter 25 mm QXE-6.2Tv2 manual

Need installation help?

Ask before ordering if the speaker size, depth or wiring is unclear.

Send the product you are replacing, the available mounting depth and any adapter or grille details. We’ll reply in writing.
