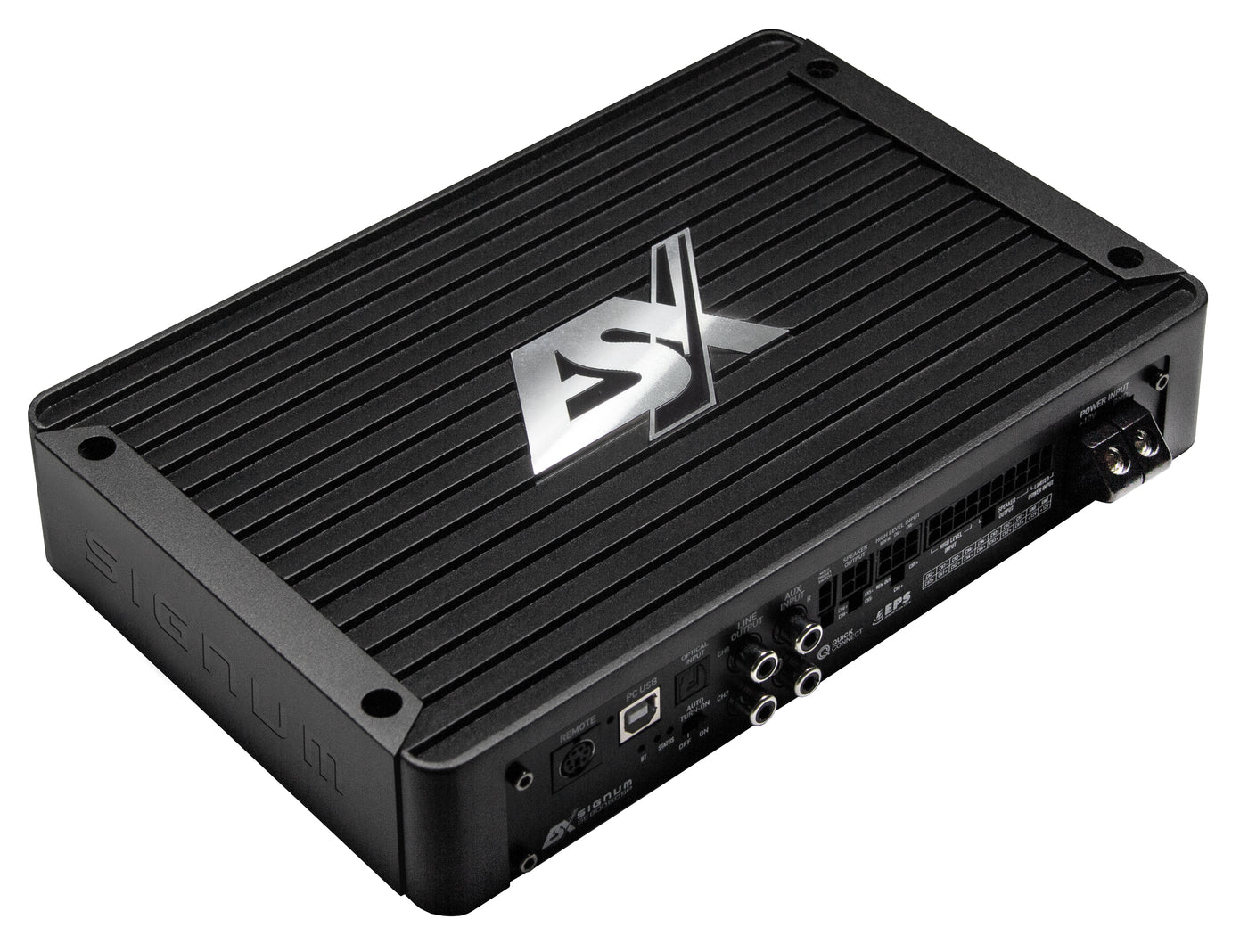

ESX SE800.6 BMW RAM DSP Amplifier Package

BMW RAM DSP amplifier upgrade

Add powerful amplification and precise DSP control to a later BMW fitted with the rear RAM audio module while retaining the factory head unit, RAM module and original vehicle functions.

The supplied vehicle-specific harness connects the ESX SE800.6DSP at the rear RAM module, avoiding access to the head unit and the long-cable conversion required on earlier Base Audio cars. The amplifier powers and independently controls the cabin speakers and BMW underseat woofers and is supplied with a pre-loaded BMW RAM tune.

Amplifier features

• Six-channel Class D amplifier with eight-channel Full HD Audio DSP
• 6 × 80W RMS at 4Ω or 6 × 125W RMS at 2Ω
• Built-in Bluetooth 5.0 music streaming and wireless DSP control
• DSP MASTER app and PC software with EQ, crossovers, phase and time alignment
• Optical and AUX inputs, plus two processed RCA outputs for expansion
• High-level inputs with EPS protection-system compatibility
• Compact cast-aluminium housing: 250 × 47 × 163mm

Power wiring option

Choose “No” for the amplifier package only, or “Yes” to include the recommended power-wiring kit for £25.

Compatible BMW models

• 1 Series: F40
• 2 Series: F44 and applicable G42
• 3 Series: G20, G21
• 4 Series: G22, G23, G26
• 5 Series: RAM-equipped G30, G31
• 6 Series: RAM-equipped G32 — VIN required to confirm
• 7 Series: RAM-equipped G11, G12
• 8 Series: G14, G15, G16
• X1: RAM-equipped later F48
• X2: RAM-equipped F39
• X3: G01
• X4: G02
• X5: G05
• X6: G06
• X7: G07
• Z4: G29 — VIN required to confirm

For RAM-equipped BMW Base Audio and HiFi systems. Not for earlier head-unit-powered Base Audio, earlier analogue HiFi/S676 or Harman Kardon systems.

VIN confirmation: After ordering, please message us your VIN. BMW changed audio hardware at different times across chassis, so we confirm the factory system before preparing and pre-tuning the package. VIN confirmation is particularly important for 6 Series and Z4 models.
