ESX Audio

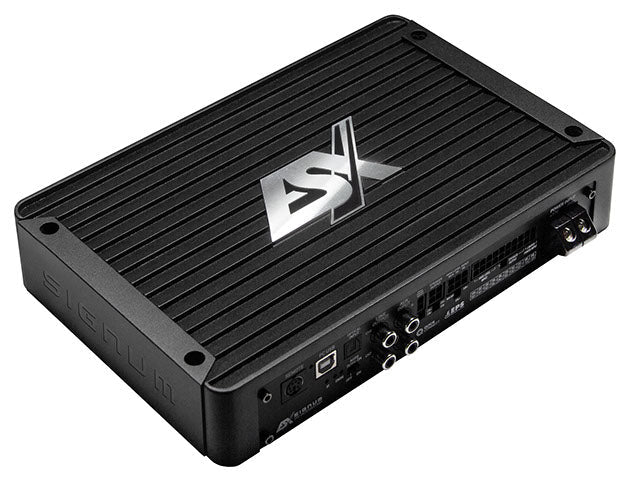

ESX Signum DSP 4x80w @4ohm & 2x150w @ 2ohm DHR with MQS
DSP Amplifier
£589.99
Available to order
Vehicle-specific DSP amplifier package using the ESX Signum SE800.6DSP amplifier with the correct Mercedes Base/MQS harness package.Package compatibility Vehicle scope: Mercedes Factory audio scope: Mercedes Base/MQS Package pricing source: ESX Trade 2026 explicit package Confirm exact vehicle model, year and factory audio...
At a glance
SKU SE800.6 Merc Base
DSP channels8 DSP channels
Dimensions163 x 47 x 250 mm (W x H x L)
Technical overview
DSP platform and product features
DSP channels8 DSP channels
Sample rate48 kHz
DSP precision32-bit
System roleIntegrated amplifier stage
Overview & features
Vehicle-specific DSP amplifier package using the ESX Signum SE800.6DSP amplifier with the correct Mercedes Base/MQS harness package.
Package compatibility
- Vehicle scope: Mercedes
- Factory audio scope: Mercedes Base/MQS
- Package pricing source: ESX Trade 2026 explicit package
- Confirm exact vehicle model, year and factory audio system before installation.
Amplifier platform
The SIGNUM SE800.6DSP power amplifier is currently the entry point into high-quality ESX DSP audio technology.
- Class D 6-channel amplifier with digital 8-channel sound processor
- 6 x 80/125 watts RMS at 4/2 ohm
- 3 x 250 watts RMS at 4 ohm bridged
- Frequency range 10 Hz to 21 kHz
- Operating voltage 8.0 to 18 V
- Integrated Bluetooth stereo audio receiver
- High-level input with EPS, AUX RCA, optical S/PDIF and USB PC software input
- 2 x RCA line outputs and 6 x speaker outputs
Downloads
Technical overview
- Frequency response
- 10-21,000 Hz
- Total harmonic distortion
- <0.02%
- DSP channels
- 8 DSP channels
- Sample rate
- 48 kHz
- Bit depth
- 32-bit
Installation
- Dimensions
- 163 x 47 x 250 mm (W x H x L)
Additional specifications
- DSP chip / platform
- Dual Core Audio Signal Processor (Analog Devices)
- Bluetooth
- Integrated Bluetooth 5.0 stereo receiver with app control and audio streaming (A2DP/aptX)
