ESX Audio

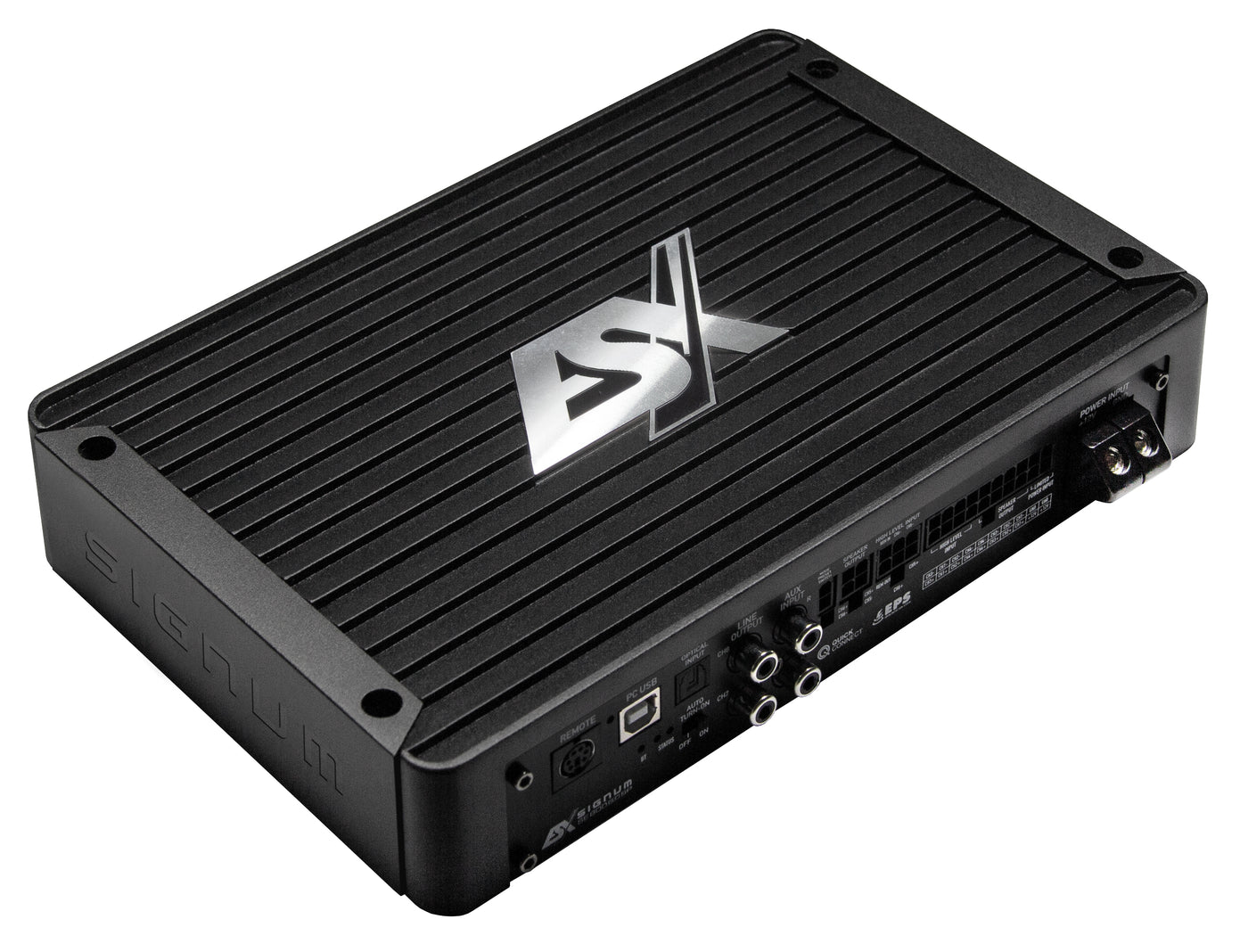

ESX SE800.6DSP 6-Channel DSP Amplifier

DSP Amplifier

£489.99
Available to order

The ESX SE800.6DSP is a SIGNUM 6-channel Class D amplifier with an integrated 8-channel DSP for high-quality car audio tuning. The official ESX source confirms 6 x 80W RMS at 4 ohm, 6 x 125W RMS at 2 ohm and 3 x...

At a glance SKU SE800.6DSP
Amplifier channels6 amplifier channels / 8 DSP channels
Power at 2Ω6 x 125W RMS
Amplifier classClass D
Dimensions250 x 47 x 163 mm
Technical overview DSP platform and product features
Inputs1 x stereo AUX input RCA R/L
Outputs2 x line output RCA at 2 V RMS
System roleIntegrated amplifier stage
Product-specific features
  • - 8 x 31-band output equalizer
  • - DSP Master app and PC software control
  • - Integrated Bluetooth audio streaming and DSP control
  • - Optical stereo S/PDIF input, USB Type B and stereo AUX RCA input
Overview & features

The ESX SE800.6DSP is a SIGNUM 6-channel Class D amplifier with an integrated 8-channel DSP for high-quality car audio tuning. The official ESX source confirms 6 x 80W RMS at 4 ohm, 6 x 125W RMS at 2 ohm and 3 x 250W RMS bridged at 4 ohm, with Bluetooth audio and DSP control, optical input, USB PC setup and app control.

Key features

  • 6-channel Class D amplifier with integrated 8-channel DSP
  • 8 x 31-band output equalizer
  • DSP Master app and PC software control
  • Integrated Bluetooth stereo audio receiver
  • 6 x high-level inputs with EPS
  • Stereo AUX RCA input, optical S/PDIF input and 2 V RCA line outputs
  • USB Type B connection for PC software
  • Dimensions 250 x 47 x 163 mm
Power & channels
Channels
6 amplifier channels / 8 DSP channels
Amplifier class
Class D
RMS power at 4 ohms
3 x 250W RMS
RMS power at 2 ohms
6 x 125W RMS
Technical overview
Frequency response
10-21,000 Hz
Inputs
1 x stereo AUX input RCA R/L
Outputs
2 x line output RCA at 2 V RMS
Equaliser
8 x 31-band output equalizer
Installation
Operating voltage
8.0-18 V
Dimensions
250 x 47 x 163 mm
Additional specifications
DSP chip / platform
Dual Core Audio Signal Processor (Analog Devices)
Bluetooth
integrated Bluetooth stereo audio receiver for streaming and DSP control
Downloads
ESX SE800.6DSP 6-Channel DSP Amplifier manual ESX SE800.6DSP 6-Channel DSP Amplifier datasheet
