ESX Audio

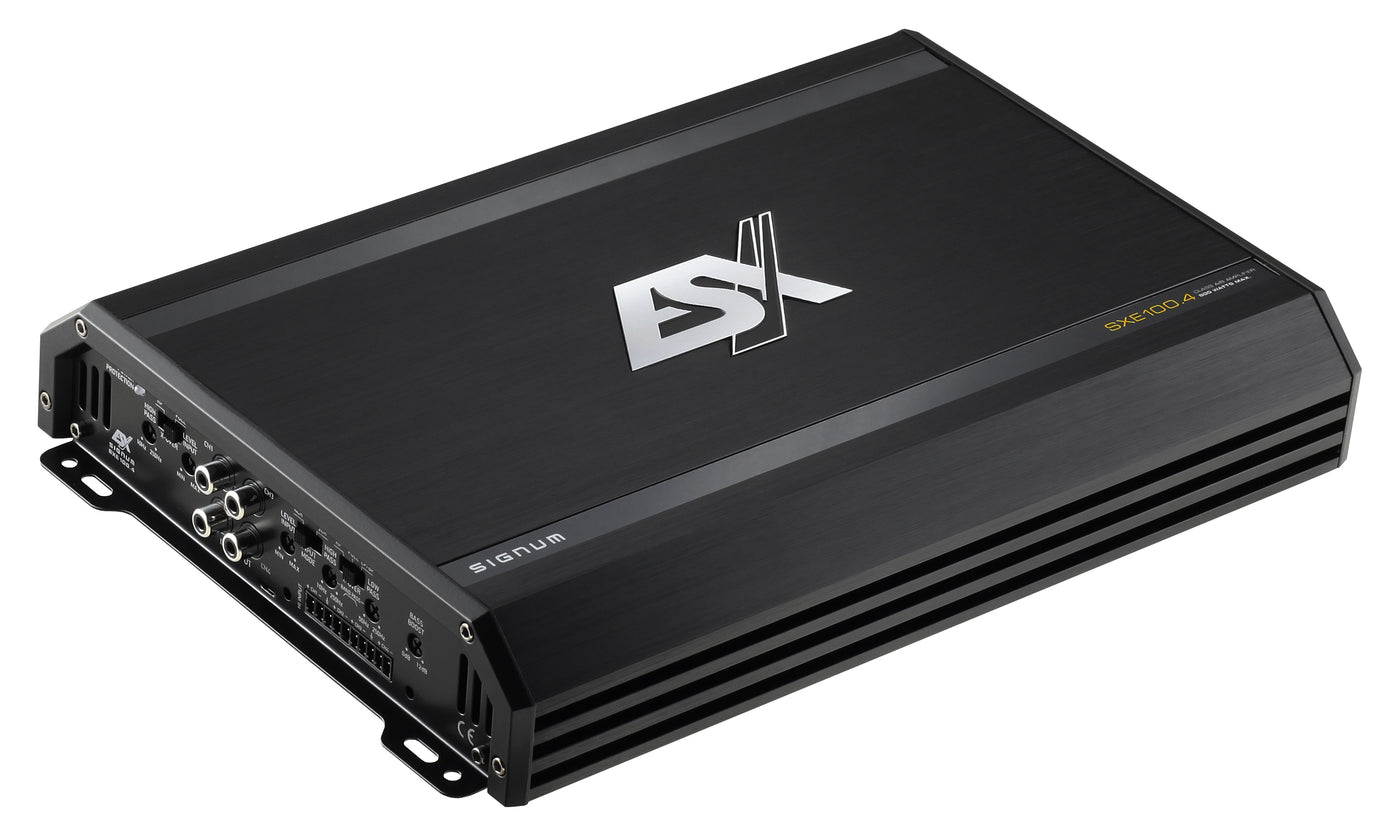

ESX Audio SXE100.4 4-Channel Class A/B Analog Amplifier

DSP Amplifier

£129.99
Available to order

The ESX SIGNUM SXE100.4 is a 4-channel Class A/B analogue amplifier with high-level OEM integration, Auto Turn-On and EPS protection. Key specifications 4-Channel Class A/B Analog Amplifier 4 x 65/100 Watts RMS @ 4/2 Ω 2 x 200 Watts RMS bridged @...

At a glance SKU SXE100.4
Amplifier channels4 channels; 4 x 65 W RMS @ 4 Ω; 4 x 100 W RMS @ 2 Ω
Dimensions220 x 53 x 328 mm (W x H x L)
Technical overview DSP platform and product features
Signal-to-noise ratio>90 dB
System roleIntegrated amplifier stage
Overview & features

The ESX SIGNUM SXE100.4 is a 4-channel Class A/B analogue amplifier with high-level OEM integration, Auto Turn-On and EPS protection.

Key specifications

  • 4-Channel Class A/B Analog Amplifier
  • 4 x 65/100 Watts RMS @ 4/2 Ω
  • 2 x 200 Watts RMS bridged @ 4 Ω
  • 2 x HPF 10-250 Hz
  • LPF 50-250 Hz
  • Bass Boost 0-12 dB
  • Bandpass Mode
  • Dimensions 220 x 53 x 328 mm
  • Efficiency up to 61%

Manufacturer source: ESX product page
Manual: Owner's manual

Power & channels
Amplified channels
4 channels; 4 x 65 W RMS @ 4 Ω; 4 x 100 W RMS @ 2 Ω
Technical overview
Frequency response
5-40,000 Hz (-3 dB)
Signal-to-noise ratio
>90 dB
Total harmonic distortion
<0.5% (1 kHz)
Installation
Dimensions
220 x 53 x 328 mm (W x H x L)
Additional specifications
Power / voltage
+12 V (9-15 V), negative ground; 2 x 30 A fuse
Inputs / outputs
4 x RCA inputs (CH1-4); 4 x high-level inputs via supplied plug; high-level auto turn-on
Low-pass filter
250 Hz
High-pass filter
250 Hz
Bass boost
12 dB
Downloads
SXE100.4 manual SXE100.4 datasheet
