ESX Audio

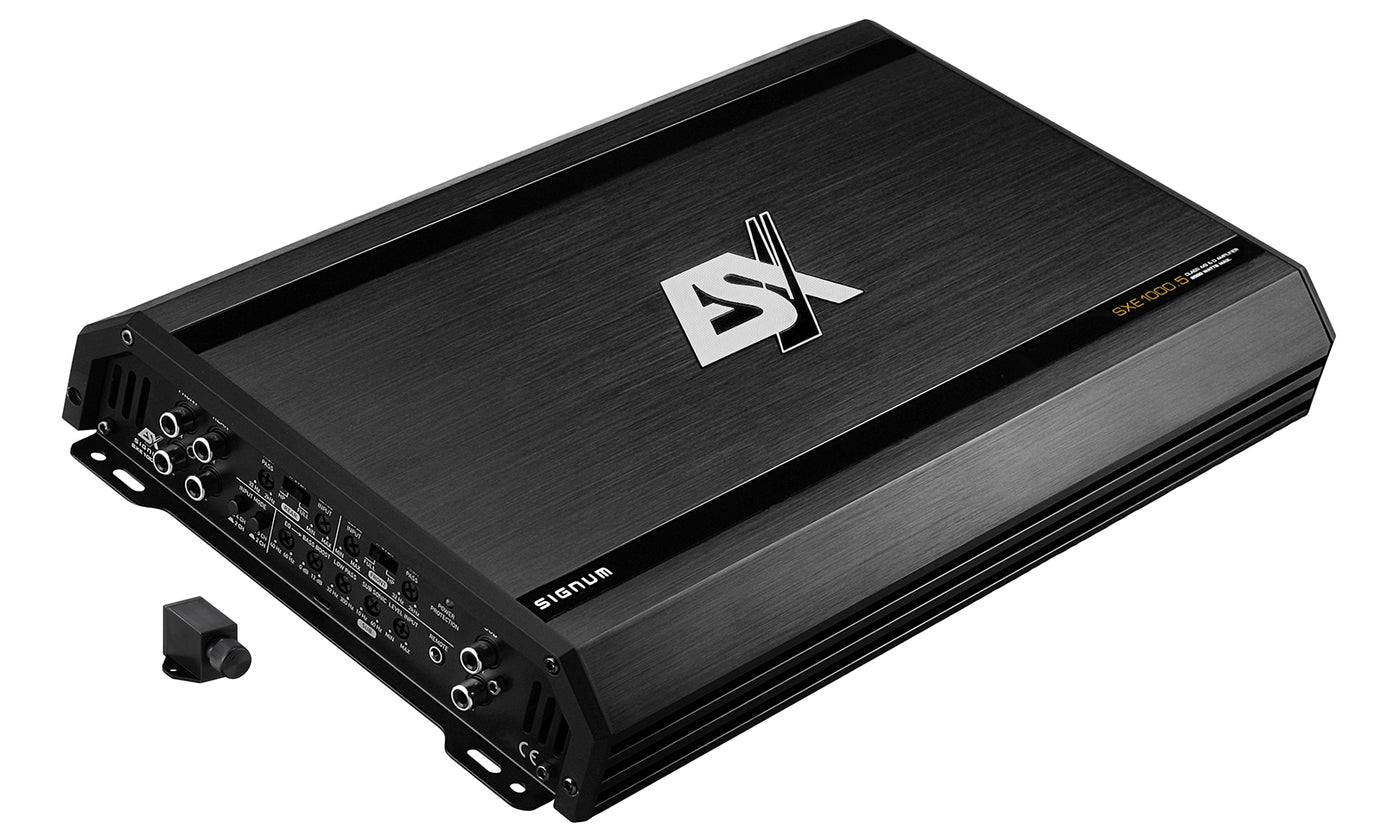

ESX Audio SXE1000.5 5-Channel Class A/B & D Hybrid Amplifier
DSP Amplifier
£239.99
Available to order
The ESX SIGNUM SXE1000.5 combines four Class A/B channels with a Class D subwoofer channel in a 5-channel hybrid amplifier, with OEM-friendly high-level integration and filtering. Key specifications 5-Channel Class A/B & D Hybrid Amplifier Dimensions 220 x 51 x 360/402 mm...
At a glance
SKU SXE1000.5
Amplifier channels5 channels: 4 front/rear + 1 subwoofer; 4 x 75/125 W RMS @ 4/2 Ω; 1 x 200/350/500 W RMS @ 4/2/1 Ω
Dimensions220 x 51 x 360/402 mm (W x H x L)
Technical overview
DSP platform and product features
Signal-to-noise ratio>112 dB
System roleIntegrated amplifier stage
Overview & features
The ESX SIGNUM SXE1000.5 combines four Class A/B channels with a Class D subwoofer channel in a 5-channel hybrid amplifier, with OEM-friendly high-level integration and filtering.
Key specifications
- 5-Channel Class A/B & D Hybrid Amplifier
- Dimensions 220 x 51 x 360/402 mm
- Efficiency up to 64%
- Class A/B: 4 x 75/125 Watts RMS @ 4/2 Ω
- HPF 32 Hz-2000 Hz
- Class D: 1 x 200/350/500 Watts RMS @ 4/2/1 Ω
- LPF 32 Hz-300 Hz
- Subsonic 10 Hz-60 Hz
- Bass Boost 0-12 dB @ 40-60 Hz
Manufacturer source: ESX product page
Manual: Owner's manual
Power & channels
- Amplified channels
- 5 channels: 4 front/rear + 1 subwoofer; 4 x 75/125 W RMS @ 4/2 Ω; 1 x 200/350/500 W RMS @ 4/2/1 Ω
Technical overview
- Frequency response
- Front/rear: 3 Hz-52 kHz (-3 dB); subwoofer: 9-350 Hz (-3 dB)
- Signal-to-noise ratio
- >112 dB
- Total harmonic distortion
- Front/rear <0.027% (1 kHz); subwoofer <0.1% (100 Hz)
Installation
- Dimensions
- 220 x 51 x 360/402 mm (W x H x L)
Additional specifications
- Power / voltage
- +12 V (9-15 V), negative ground; 2 x 40 A fuse
- Inputs / outputs
- Front/rear/subwoofer amplifier outputs; front/rear low-level inputs; subwoofer input; high-level integration
- Low-pass filter
- 300 Hz
- High-pass filter
- 2000 Hz
- Bass boost
- 12 dB @ 40 Hz - 60 Hz
