ESX Audio

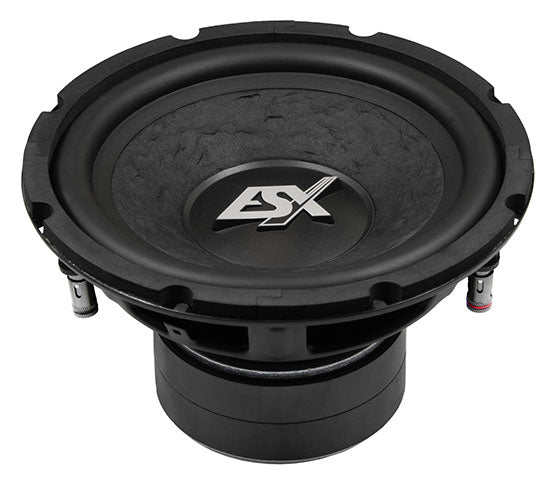

ESX SIGNUM 8" D2 250w RMS Subwoofer
Subwoofer Driver
Why choose this product?
The 20 cm SXT8D2 subwoofer has a lot to offer: It has a very large 50 mm double voice coil, which is also wound very long at 27 mm. Together with the powerful 48 ounce double magnet and an elaborately hand-made paper membrane, it has fine attributes that are otherwise only found in much larger and more expensive woofers. With 250 watts RMS, it can also handle a high load!
Key specifications
- 20 cm (8”) Subwoofer
- Power Rating 250/500 Watts RMS/Max.
- Impedance 2+2 Ω
- Fs 34 Hz, Qts 0,56, VAS 19 L, 86 dB/2,83V/1m
- Installation depth 123 mm
- Installation diameter 182 mm
Best used for
Use this product as part of a correctly matched car audio installation. Check power, fitment and system layout before ordering.
Before ordering
If you are unsure about fitment or system matching, send us your vehicle and current equipment details by WhatsApp or email before ordering and we will help check suitability.
Key features
• Power Rating 250/500 Watts RMS/Max.
• Impedance 2+2 Ω
• Fs 34 Hz, Qts 0,56, VAS 19 L, 86 dB/2,83V/1m
• Installation depth 123 mm
• Installation diameter 182 mm
Downloads
Need system-matching help?
Ask before ordering if the power, impedance or enclosure requirements are unclear.
Send the amplifier, available space and the subwoofer you are considering. We’ll reply in writing.
