ESX Audio
ESX VE1300.11SPv2 BMW Harman Kardon High-End DSP Amplifier Package
Vehicle DSP Amplifier Package
Why choose this product?
BMW Harman Kardon flagship DSP upgrade

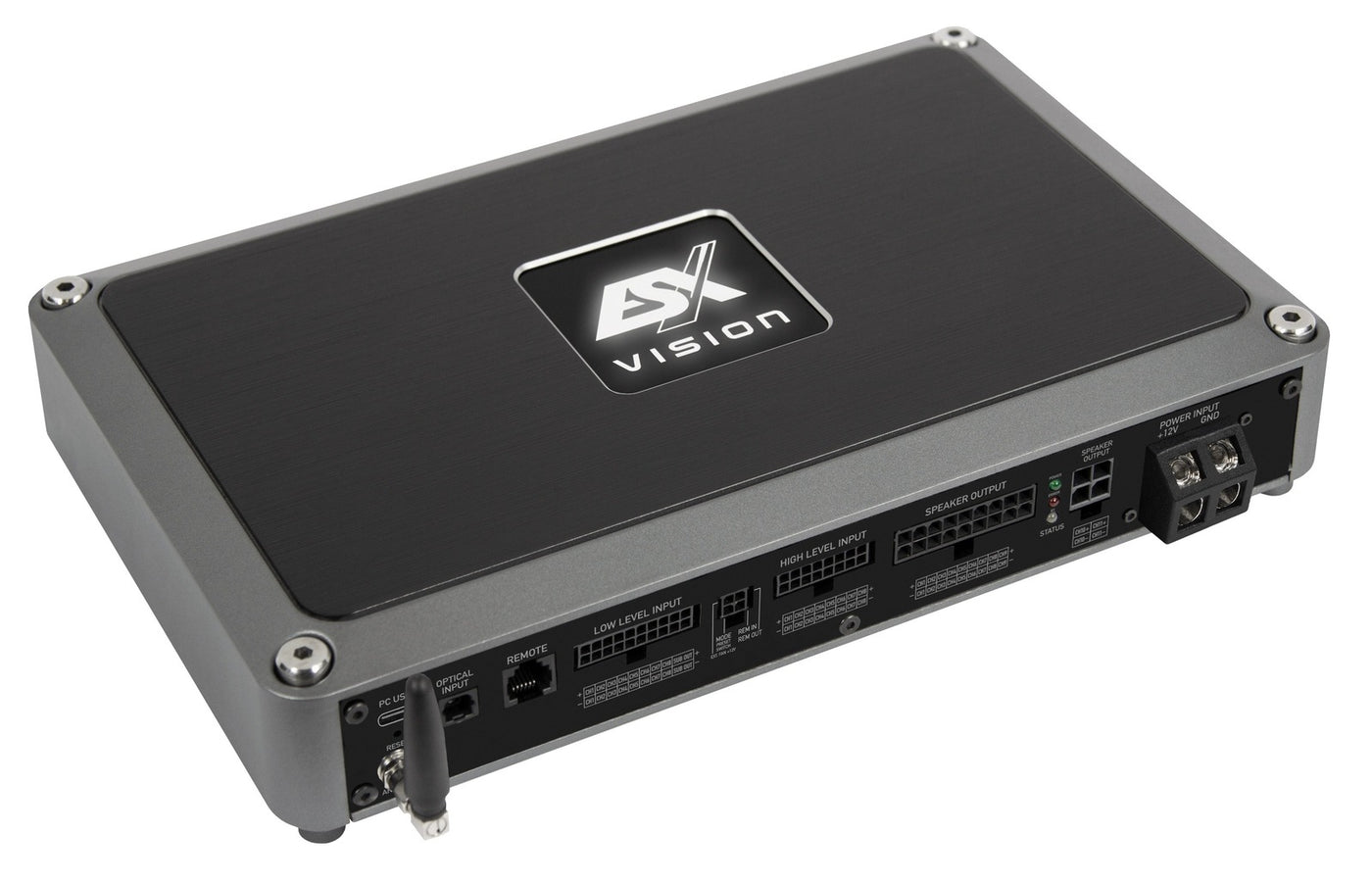

Upgrade an earlier pre-RAM BMW Harman Kardon system with the flagship ESX VISION ELITE VE1300.11SPv2—an eleven-channel amplifier and twelve-channel DSP designed for complex premium factory speaker layouts.
The supplied BMW-specific connection package interfaces at the original rear system, retaining the factory head unit and speaker positions while the ESX takes over amplification and DSP control. Nine 100W RMS full-range channels and two dedicated 200W RMS channels power the multi-speaker layout and underseat woofers. A pre-loaded BMW Harman Kardon tune is supplied as the starting calibration.
Amplifier features
- Eleven-channel amplifier with twelve-channel 96kHz DSP
- 9 × 100W RMS plus 2 × 200W RMS for the underseat woofers
- 1,300W RMS total output
- Built-in Bluetooth music streaming and wireless DSP control
- Dual ADAU1452 DSP processors, AKM converters and USB-C PC connection
- Optical input, eight EPS PRO high-level inputs and processed RCA output
- Compact aluminium housing: 284 × 54 × 181mm
Power wiring option
Choose “No” for the amplifier package only, or “Yes” to include the recommended power-wiring kit for £25.
Compatible BMW models
- 1 Series: E81, E82, E87, E88, F20, F21
- 2 Series: F22, F23
- 3 Series: E90, E91, E92, E93, F30, F31, F34
- 4 Series: F32, F33, F36
- 5 Series: E60, E61, F07, F10, F11
- 6 Series: E63, E64, F06, F12, F13 — VIN required to confirm
- 7 Series: E65, E66, F01, F02
- X1: E84 and applicable pre-RAM F48
- X3: E83, F25 and applicable early G01
- X4: F26 and applicable early G02
- X5: E70, F15 and applicable early G05
- X6: E71, F16
- Z4: E85, E86, E89 — VIN required to confirm
This listing is for pre-RAM Harman Kardon only. Harman Kardon, Logic 7 and BMW Individual Audio can use different connections, so VIN confirmation is required for every order.
VIN confirmation: After ordering, please message us your VIN. BMW changed audio hardware at different times across chassis, so we confirm the factory system before preparing and pre-tuning the package. VIN confirmation is particularly important for 6 Series and Z4 models.
Compatibility and support
For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.
We reply by email or WhatsApp so you have the recommendation in writing.
Need fitment help?
Ask before ordering if the vehicle, wiring or DSP setup is unclear.
Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.
