ESX Audio

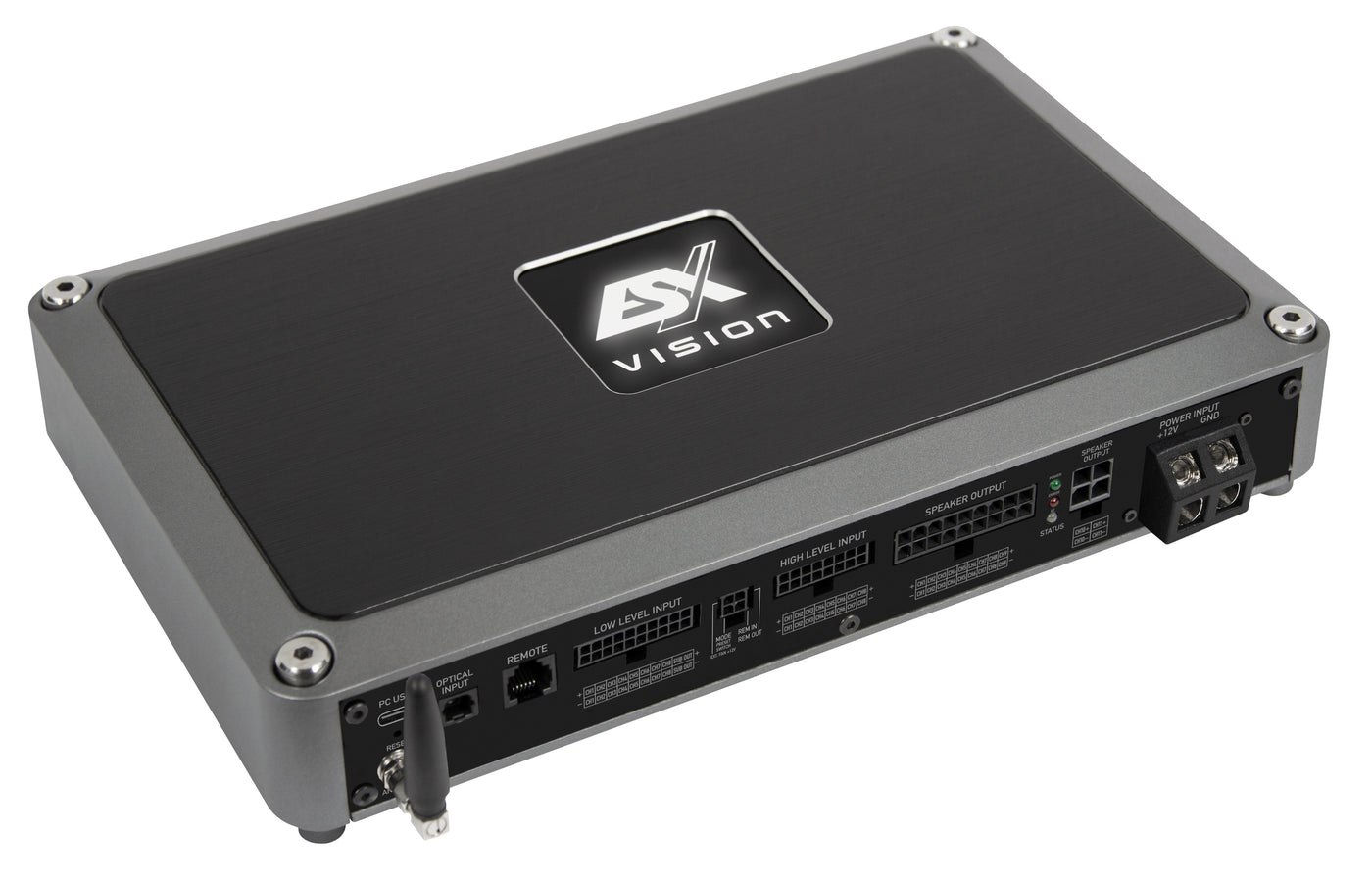

ESX VISION SQ 11ch DSP AMPLIFIER 9x100 + 2x200w
DSP Amplifier
£1,289.99
Available to order
ESX VE1300.11SP V2 is an 11-channel Class D DSP amplifier designed for complex high-end vehicle audio systems.It combines 9 x 100 W RMS speaker channels with 2 x 200 W RMS subwoofer channels and an integrated 12-channel full-HD audio DSP for detailed...
At a glance
SKU VE1300.11SPv2
Amplifier channels11 amplified speaker/subwoofer outputs (9 x 100 W + 2 x 200 W)
DSP channels48 DSP channels
Amplifier classClass D; 9 x 100 W RMS @ 4/3 Ω + 2 x 200 W RMS @ 2 Ω
Dimensions284 x 54 x 181 mm (L x H x W)
Technical overview
DSP platform and product features
Signal-to-noise ratio106.5 dB A-weighted
DSP channels48 DSP channels
Sample rate96 kHz / Full HD Audio
DSP precision32-bit A/D and D/A
System roleIntegrated amplifier stage
Overview & features
ESX VE1300.11SP V2 is an 11-channel Class D DSP amplifier designed for complex high-end vehicle audio systems.
It combines 9 x 100 W RMS speaker channels with 2 x 200 W RMS subwoofer channels and an integrated 12-channel full-HD audio DSP for detailed system tuning.
Official download: Manufacturer manual / data sheet.
Power & channels
- Amplifier class
- Class D; 9 x 100 W RMS @ 4/3 Ω + 2 x 200 W RMS @ 2 Ω
- Amplified channels
- 11 amplified speaker/subwoofer outputs (9 x 100 W + 2 x 200 W)
Technical overview
- Frequency response
- 5-45,000 Hz
- Signal-to-noise ratio
- 106.5 dB A-weighted
- Total harmonic distortion
- 0.005% @ 1 W RMS; 0.003% @ 5 W RMS
- DSP channels
- 48 DSP channels
- Sample rate
- 96 kHz / Full HD Audio
- Bit depth
- 32-bit A/D and D/A
Installation
- Dimensions
- 284 x 54 x 181 mm (L x H x W)
Additional specifications
- DSP chip / platform
- 2 x Analog Devices ADAU1452; 2 x 32-bit, 294 MHz DSP
- Power / voltage
- 7.8-30 V
- Inputs / outputs
- 8 x balanced RCA; 8 x high-level speaker inputs; optical S/PDIF 96 kHz/24-bit; Bluetooth stereo; USB-C; RJ45 remote; 9 x amplified speaker outputs; 2 x amplified speaker/subwoofer outputs; RCA subwoofer output
- Bluetooth
- Integrated Bluetooth 5.0 receiver with app control and audio streaming; external antenna included
