ESX Audio

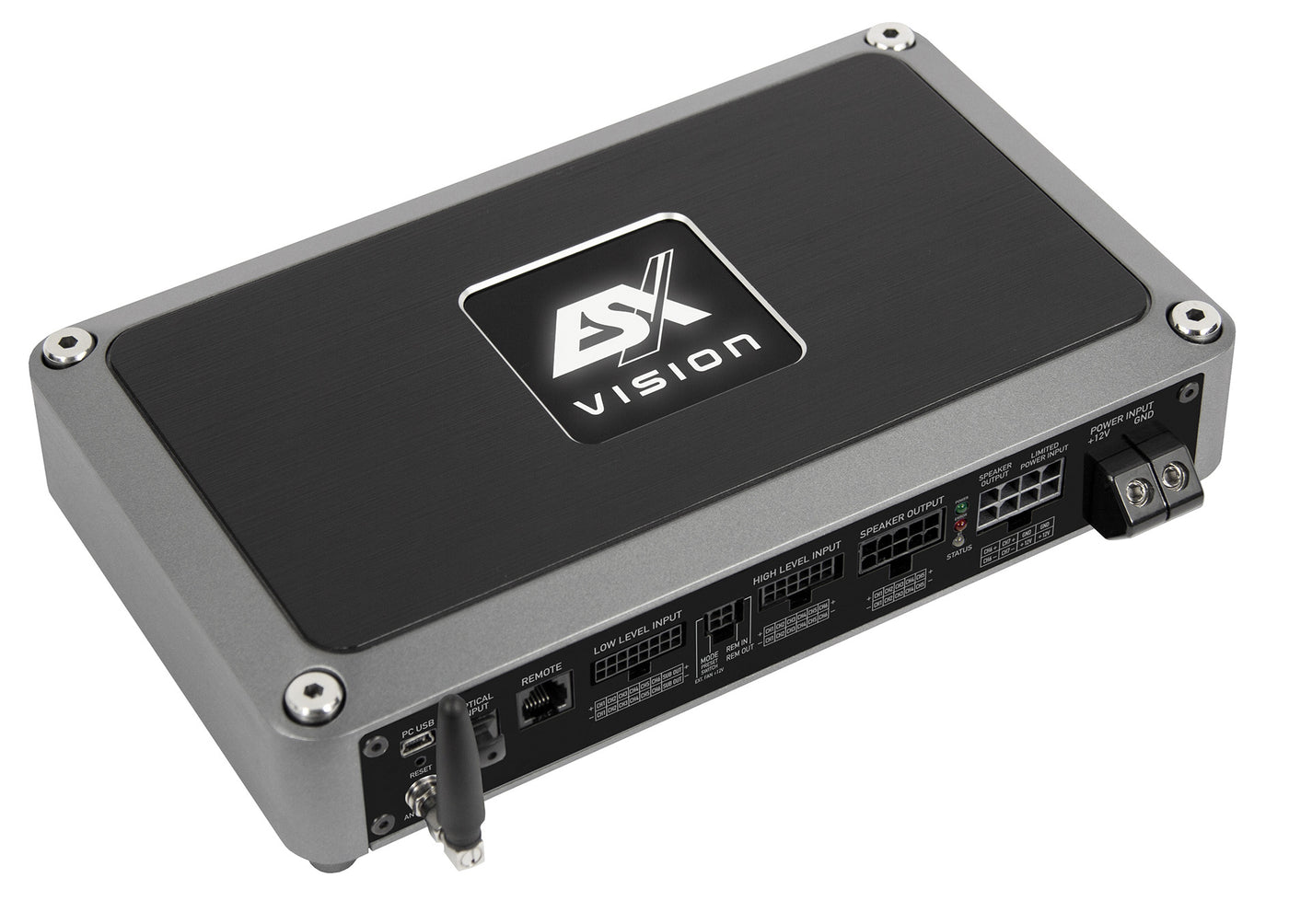

ESX Vision 7ch DSP amp 5x100w + 2x200w @ 2ohm for subs with MQS Harness

DSP Amplifier

£1,044.99
Available to order

Vehicle-specific DSP amplifier package using the ESX VISION SQ 7ch DSP AMPLIFIER 5x100 + 2x200w with the correct Mercedes Base/MQS harness package from the supplier pricelist. Vehicle: Mercedes Factory audio: Mercedes Base/MQS Package pricing source: ESX Trade 2026 explicit package Please confirm...

At a glance SKU VE900.7 Merc Base
Dimensions250 x 50 x 150 mm (L x H x W)
Technical overview DSP platform and product features
Signal-to-noise ratio106 dB A-weighted
Sample rate96 kHz
DSP precision32-bit
System roleIntegrated amplifier stage
Overview & features

Vehicle-specific DSP amplifier package using the ESX VISION SQ 7ch DSP AMPLIFIER 5x100 + 2x200w with the correct Mercedes Base/MQS harness package from the supplier pricelist.

  • Vehicle: Mercedes
  • Factory audio: Mercedes Base/MQS
  • Package pricing source: ESX Trade 2026 explicit package

Please confirm exact vehicle model, year and factory audio system before installation.

Technical overview
Frequency response
5-45,000 Hz
Signal-to-noise ratio
106 dB A-weighted
Total harmonic distortion
0.005% @ 1 W RMS
Sample rate
96 kHz
Bit depth
32-bit
Installation
Dimensions
250 x 50 x 150 mm (L x H x W)
Additional specifications
DSP chip / platform
Analog Devices ADAU1452
Inputs / outputs
6 x balanced RCA inputs via Molex; 1 x RCA subwoofer output via Molex; 5 amplified speaker outputs; 2 amplified speaker/subwoofer outputs
Bluetooth
Integrated Bluetooth 5.0 receiver with app control and audio streaming; external antenna included
Downloads
ESX Vision 7ch DSP amp 5x100w + 2x200w @ 2ohm for subs with MQS Harness manual ESX Vision 7ch DSP amp 5x100w + 2x200w @ 2ohm for subs with MQS Harness datasheet
