ESX Audio

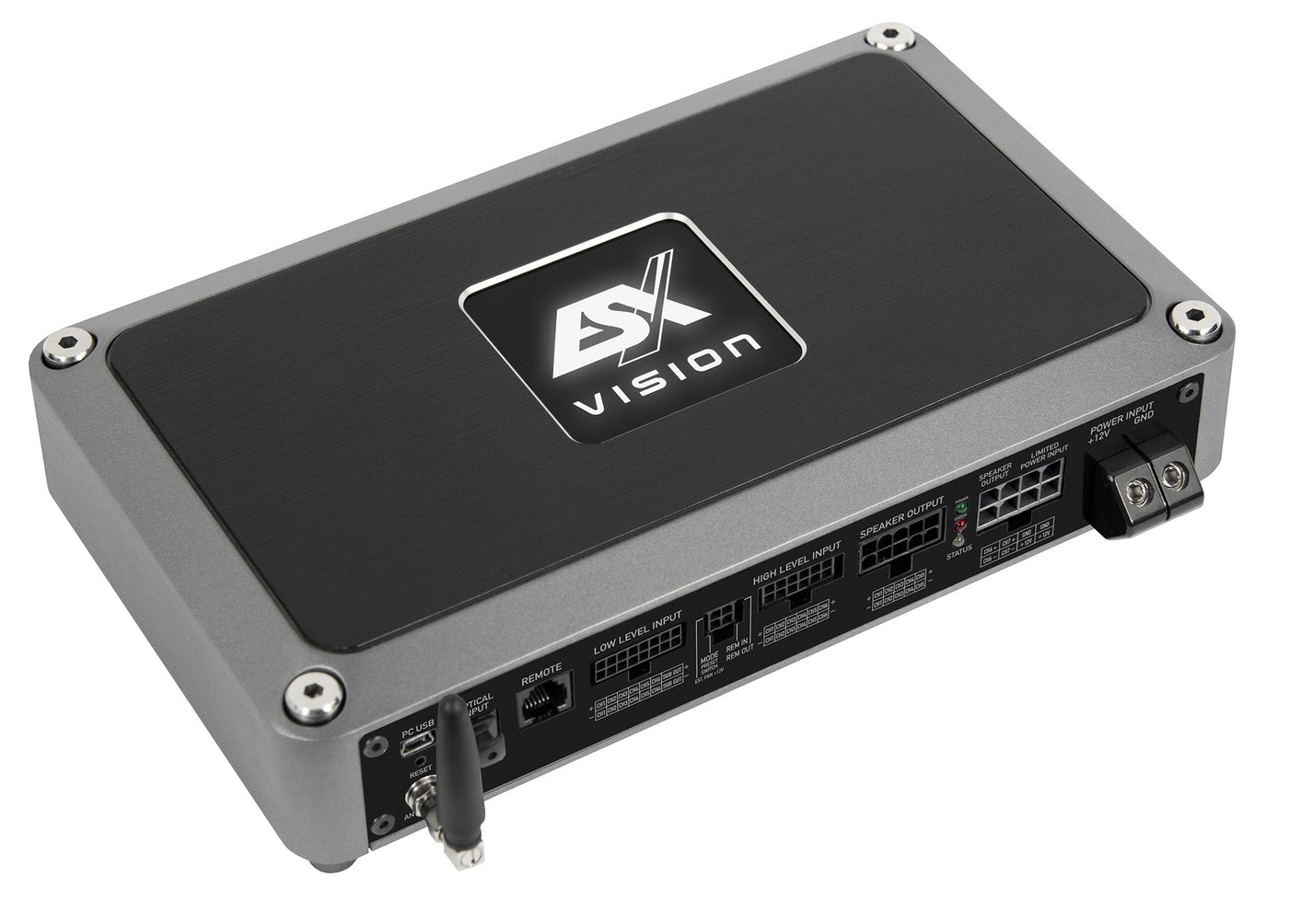

ESX VISION SQ 7ch DSP AMPLIFIER 5x100 + 2x200w

Amplifier

£859.99
Available to order
Amplifier SKU VE900.7SP Manual included
Fitment System planning support
Tech specs Shown below
Manuals/downloads Download linked
Warranty Manufacturer backed
Plan the system before checkout Check channel layout, power, impedance and DSP requirements before choosing wiring or speakers.
Why choose this product?

With the newly designed VISION ELITE DSP amplifier VE1300.11SP , ESX has immediately conquered the throne of the absolute top class ( test in Car&Hifi 1/2024 ). The 11-channel amplifier with 12-channel DSP confidently sets the standards in the category of DSP high-end multi-channel amplifiers. The European EISA AWARD winners ESX D68SP , QL812SP and the flagship QE812SP prove that this is no coincidence. For the third year in a row, ESX DSPs have won the “In-Car Sound Processors” class!

Key specifications

  • Class D 7-Channel Amplifier with
  • Digital 8-Channel Sound Processor
  • 5 x 100 Watts RMS @ 4/3 Ω + 2 x 200 Watts RMS @ 2 Ω
  • Frequency Range 5 ~ 45.000 Hz
  • Signal-to-noise Ratio (A-weighted): 106,5 dB
  • THD 0,005% @ 1 Watts RMS, 0,003% @ 5 Watts RMS
  • Operating Voltage 7.5 ~ 17 V Dimensions 250 x 50 x 150 mm
  • Inputs: 6 x RCA, balanced (via Cable Plug)
  • 6 x High Level Input with EPS ® PRO (via Cable Plug)
  • 1 x Optical Stereo Input, S/PDIF 96 kHz, 24 bit
  • 1 x Bluetooth ® Stereo Input via Audio Streaming
  • 1 x USB Type B Socket for PC Software
  • 1 x RJ45 Input for Remote Controller
  • 1 x Terminal incl. REM IN/OUT & Mode Preset Switching Input

Best used for

Use this product as part of a correctly matched car audio installation. Check power, fitment and system layout before ordering.

Before ordering

If you are unsure about fitment or system matching, send us your vehicle and current equipment details by WhatsApp or email before ordering and we will help check suitability.

Key features
• Class D 7-Channel Amplifier with
• Digital 8-Channel Sound Processor
• 5 x 100 Watts RMS @ 4/3 Ω + 2 x 200 Watts RMS @ 2 Ω
• Frequency Range 5 ~ 45.000 Hz
• THD 0,005% @ 1 Watts RMS, 0,003% @ 5 Watts RMS
• Operating Voltage 7.5 ~ 17 V Dimensions 250 x 50 x 150 mm
• Inputs: 6 x RCA, balanced (via Cable Plug)
• 6 x High Level Input with EPS ® PRO (via Cable Plug)
• 1 x Optical Stereo Input, S/PDIF 96 kHz, 24 bit
• 1 x Bluetooth ® Stereo Input via Audio Streaming
• 1 x RJ45 Input for Remote Controller
• 1 x Terminal incl. REM IN/OUT & Mode Preset Switching Input
Technical details
Specifications • Class D 7-Channel Amplifier with • Digital 8-Channel Sound Processor • 5 x 100 Watts RMS @ 4/3 Ω + 2 x 200 Watts RMS @ 2 Ω • Frequency Range 5 ~ 45.000 Hz • Signal-to-noise Ratio (A-weighted): 106,5 dB • THD 0,005% @ 1 Watts RMS, 0,003% @ 5 Watts RMS • Operating Voltage 7.5 ~ 17 V Dimensions 250 x 50 x 150 mm • Inputs: 6 x RCA, balanced (via Cable Plug) • 6 x High Level Input with EPS ® PRO (via Cable Plug) • 1 x Optical Stereo Input, S/PDIF 96 kHz, 24 bit • 1 x Bluetooth ® Stereo Input via Audio Streaming • 1 x USB Type B Socket for PC Software • 1 x RJ45 Input for Remote Controller • 1 x Terminal incl. REM IN/OUT & Mode Preset Switching Input • Input Sensitivity Low Level 500 mV ~ 6 V • Input Sensitivity High Level 2 ~ 15 V or 15 ~ 40 V (switchable) • Input Impedance Low Level 10 kΩ • Input Impedance High Level 10/150/600 Ω (switchable) Auto Turn-On Function DC / VOX / OFF Outputs: • 5 x Amplified Speaker Output (via Cable Plug) • 2 x Amplified Speaker/Subwoofer Output (via Cable Plug) • 1 x Subwoofer Output (RCA via Cable Plug) • 1 x Switching Output for External Fan +12V Downloads • https://esxaudio.de/english/assets/ve900.7sp.pdf • https://esxaudio.de/assets/esx-toolkit-app-quick-start-guide-english.pdf
Compatibility and support

For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.

We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
Download owner manual Manufacturer documentation supplied where available.

Need fitment help?

Ask before ordering if the vehicle, wiring or DSP setup is unclear.

Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.

WhatsApp compatibility help Email us
ESX VISION SQ 7ch DSP AMPLIFIER... £859.99
