Helix

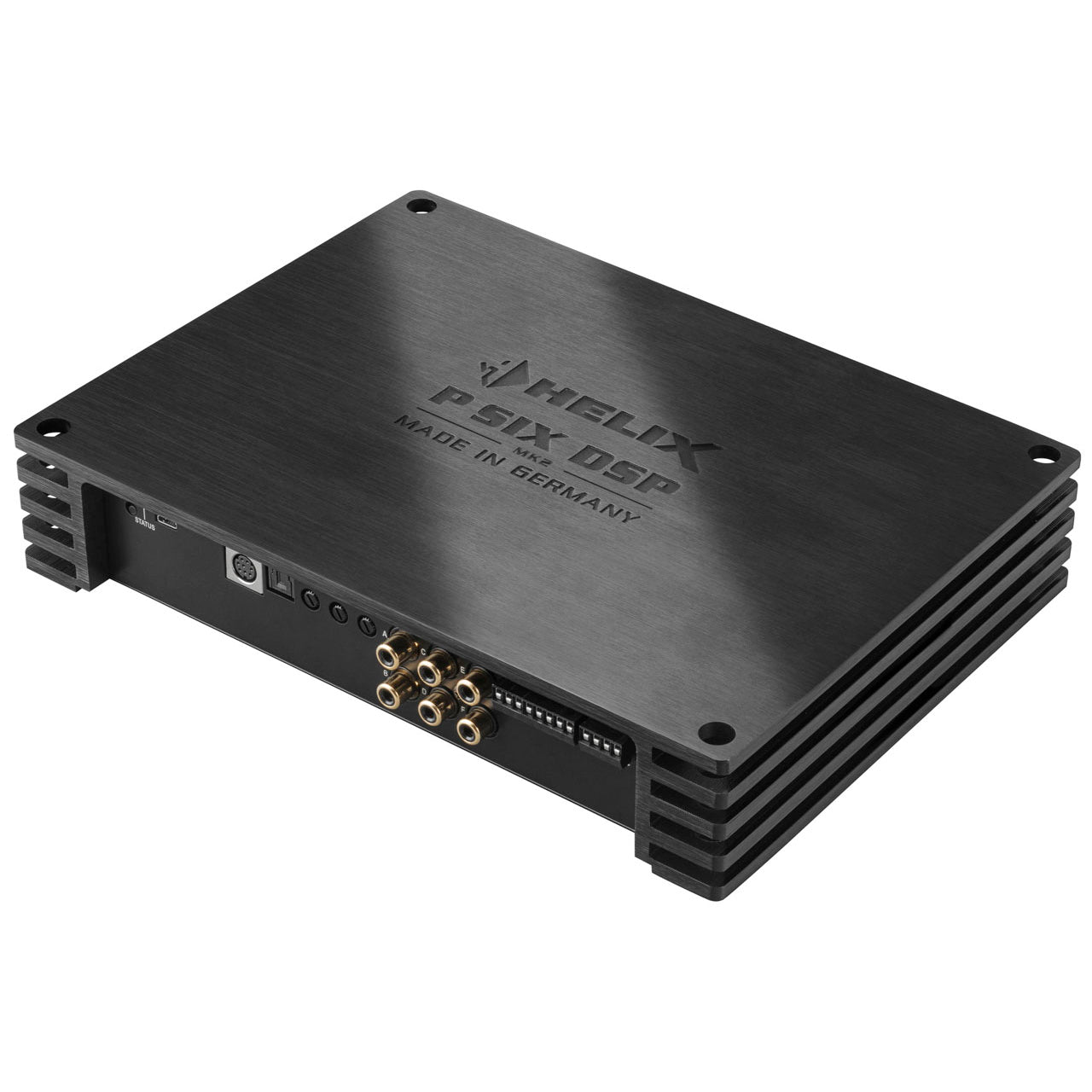

HELIX P SIX DSP MK2
Amplifiers with DSP
£1,299.99
Available to order
Amplifiers with DSP
SKU P816002
Manual included
Fitment
System planning support
Tech specs
Available on request
Manuals/downloads
Download linked
Warranty
Manufacturer backed
Plan the system before checkout
Check channel layout, power, impedance and DSP requirements before choosing wiring or speakers.
Why choose this product?
Here is the technical data for the audio power amplifier:
| Power RMS ? 1% THD+N | |
| - @ 4 Ohms | Channel A - F: 6 x 120 Watts |
| - @ 2 Ohms | Channel C - F: 4 x 230 Watts |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| Max. output power per channel* | Channel A - F: up to 145 Watts RMS @ 4 Ohms Channel C - F: up to 285 Watts RMS @ 2 Ohms |
| Amplifier technology | Ultra HD Class D |
| Inputs | 6 x RCA / RCA 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Coax SPDIF (12 - 192 kHz) 1 x Remote In |
| Input Sensitivity | RCA / RCA 1 - 4 Volts or 4 - 8 Volts Highlevel 4 - 16 Volts or 8 - 32 Volts |
| Input Impedance RCA / RCA | 13 kOhms |
| Input Impedance Highlevel | 9 - 33 Ohms with ADEP.3 |
| Outputs | 6 x Speaker output 4 x RCA / RCA 1 x Optical SPDIF (96 kHz) 2 x Remote Out |
| Output Voltage RCA / RCA | 3 Volts |
| Frequency Response | 10 Hz - 44,000 Hz |
| DSP Resolution | 64 Bit |
| DSP Power | 2 x 295 MHz (2.4 billion MAC operations/second) |
| Sampling Rate | 96 kHz |
| DSP Type | 2 x Audio signal processor |
| Signal Converters | A/D: BurrBrown D/A: BurrBrown |
| Signal-to-Noise Ratio Digital Input | 108 dB (A-weighted) |
| Signal-to-Noise Ratio Analog Input | 102 dB (A-weighted) |
| Distortion (THD) | < 0.004 % |
| Damping Factor |
