ESX Audio

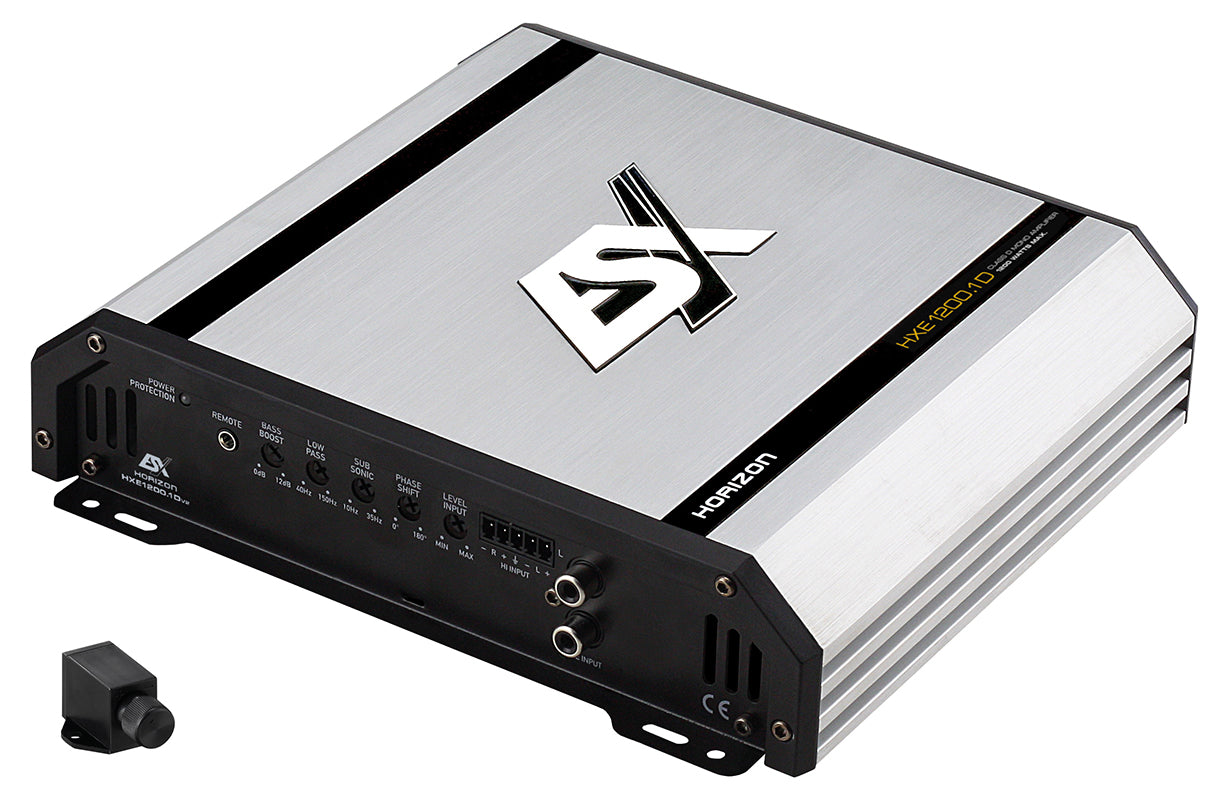

ESX HXE1200.1Dv2 Mono Class D Amplifier
Mono
Why choose this product?
The ESX HXE1200.1Dv2 is a HORIZON-series mono Class D digital amplifier for universal subwoofer upgrades. The official ESX English page and owner manual confirm 1 x 300W RMS at 4 ohm, 1 x 450W RMS at 2 ohm and 1 x 600W RMS at 1 ohm.
It adds high-level inputs with Error Protection System, auto turn-on via the high-level inputs, MOSFET PWM power supply, a 3-way protection circuit and a compact bass remote controller.
Key specifications
- Mono Class D digital amplifier
- 1 x 300/450/600W RMS at 4/2/1 ohm
- LPF 40-150 Hz
- Subsonic 15-35 Hz
- Bass Boost 0-12 dB
- Phase Shift 0-180 degrees
- Dimensions 220 x 51 x 222 mm
- Efficiency up to 84%
Best used for
Use the HXE1200.1Dv2 for a universal mono subwoofer amplifier upgrade where compact size, high-level input integration and 1 ohm stable output are useful.
Key features
- 1 x 300/450/600W RMS at 4/2/1 ohm
- LPF 40-150 Hz and subsonic filter 15-35 Hz
- Bass Boost 0-12 dB and Phase Shift 0-180 degrees
- High Level Inputs with EPS and auto turn-on
- Compact bass remote controller
- Dimensions 220 x 51 x 222 mm
- Efficiency up to 84%
Technical details
Downloads and support
Check enclosure type, amplifier matching, available space and dimensions before ordering. Message us if you want help matching the product to the right amplifier or installation position.
We reply by email or WhatsApp so you have the recommendation in writing.
