ESX Audio

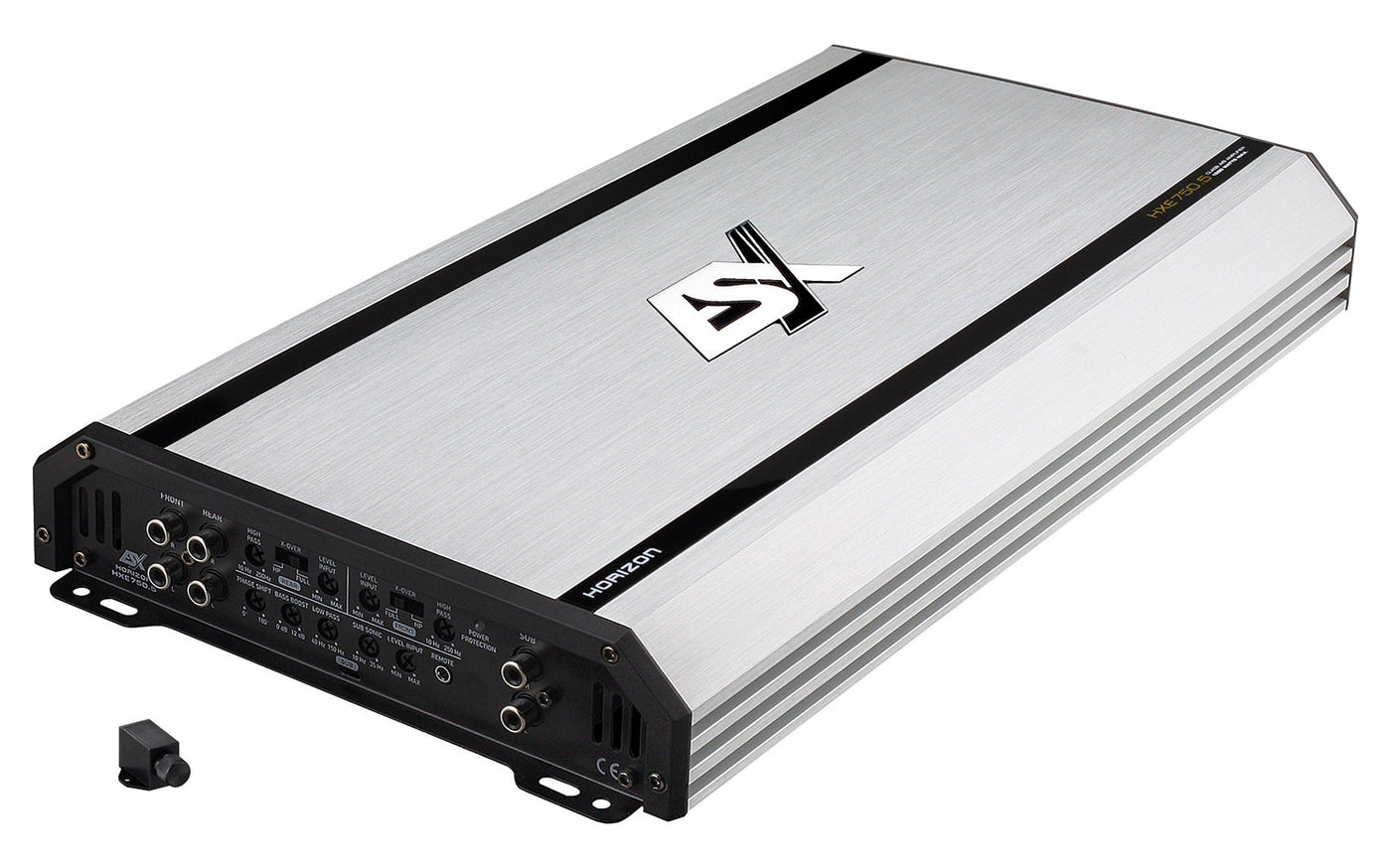

ESX HXE750.5 5-Channel Class A/B Amplifier

5-Channel

£199.99
Available to order
5-Channel SKU 4251476404441 Manual included
Fitment System planning support
Tech specs Shown below
Manuals/downloads Download linked
Warranty Manufacturer backed
Plan the system before checkout Check channel layout, power, impedance and DSP requirements before choosing wiring or speakers.
Why choose this product?
The HXE750.5 is the practical HORIZON choice when a single amplifier needs to run speakers and a subwoofer. It keeps the system compact while still giving the sub channel its own low-pass, subsonic, bass boost and remote level control.
Key features
- 5-channel Class A/B analogue amplifier
- 4 x 60/100W RMS at 4/2 ohm
- 1 x 200/350W RMS at 4/2 ohm subwoofer channel
- HPF 32-2000 Hz and LPF 32-300 Hz
- Subsonic 10-60 Hz and Bass Boost 0-12 dB at 40-60 Hz
- MOSFET PWM power supply and 3-way protection circuit
- Compact bass remote controller
- Dimensions 220 x 51 x 412 mm
- Efficiency up to 61%
Technical details
Specifications - 5-Channel Class A/B Analog Amplifier - 4 x 60/100 Watts RMS @ 4/2 ohm - 1 x 200/350 Watts RMS @ 4/2 ohm subwoofer channel - HPF 32-2000 Hz - LPF 32-300 Hz - Subsonic 10-60 Hz - Bass Boost 0-12 dB @ 40-60 Hz - Dimensions 220 x 51 x 412 mm - Efficiency up to 61% Downloads - Product manual available
Compatibility and support

For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.

We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
Download owner manual Manufacturer documentation supplied where available.

Need fitment help?

Ask before ordering if the vehicle, wiring or DSP setup is unclear.

Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.

WhatsApp compatibility help Email us
