ESX Audio

ESX HORIZON HXP400 12" 4-Channel Bass Pack

Bass Pack

£259.99
Available to order
Bass Pack SKU HXP400 Manual included
Tech specs Shown below
Manuals/downloads Download linked
Warranty Manufacturer backed
Match enclosure and amplifier power Use the product details and message us if you want help pairing this with the right amp or box.
Why choose this product?

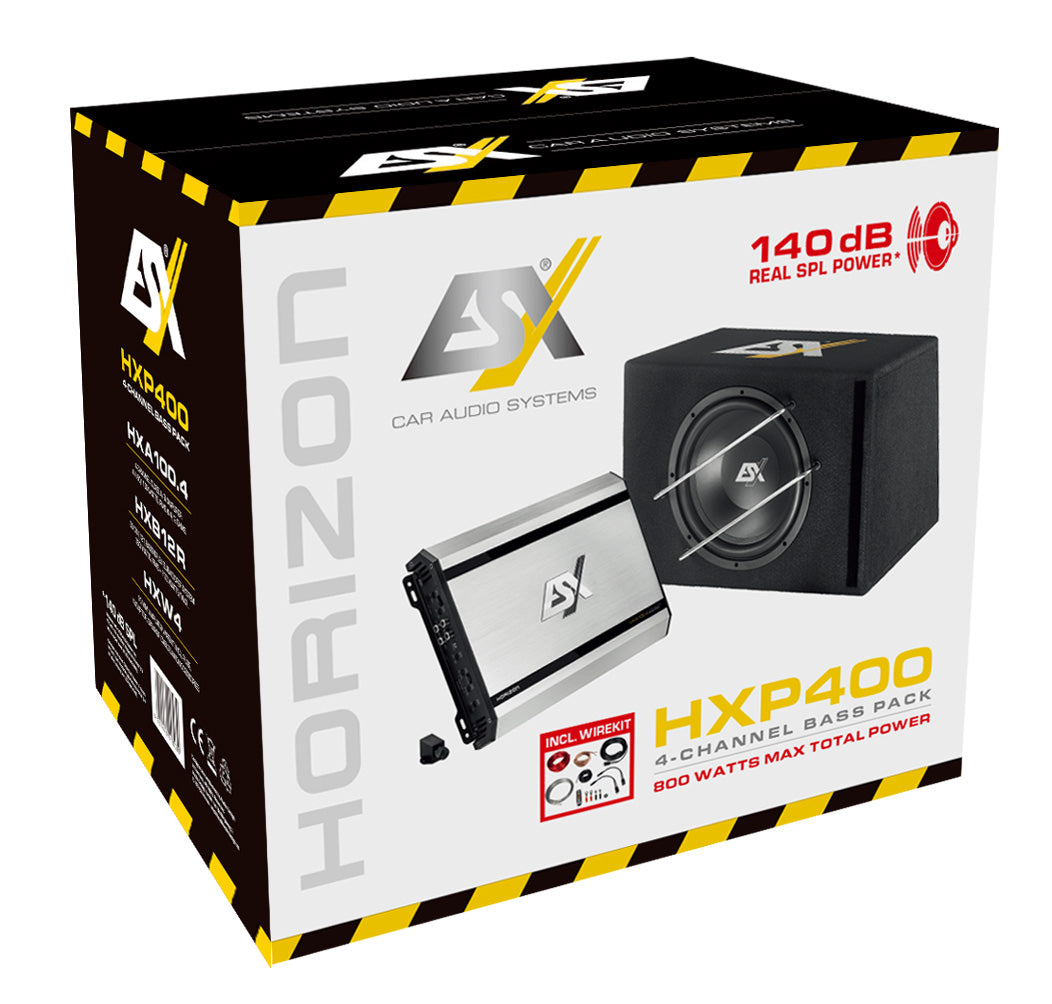

The ESX HORIZON HXP400 is a 4-channel bass pack for adding bass to a vehicle with a matched amplifier, 12-inch bass reflex subbox and installation cable kit.

The set combines the HXA100.4 4-channel Class A/B analogue amplifier with the HXB12R 30 cm / 12-inch single bass reflex system, plus a compact wired bass remote so the bass level can be adjusted from the driver seat.

The included HXW4 connection kit provides a 5 m 10 mm² power cable, 1 m 10 mm² ground cable, 5 m RCA stereo audio cable, RCA Y-adapters and an ANL fuse holder with 40 A fuse.

Official component specifications

  • Amplifier: HXA100.4 4-channel Class A/B analogue amplifier
  • Amplifier output: 2 x 60/100W RMS at 4/2 Ω plus 1 x 200W RMS bridged at 4 Ω
  • Amplifier filters: 2 x HPF 10–250 Hz, LPF 50–250 Hz, bass boost 0–12 dB and bandpass function
  • Subbox: HXB12R 30 cm / 12-inch single bass reflex system
  • Subbox power: 300W RMS / 600W max, 4 Ω impedance
  • Installation kit: HXW4 10 mm² amplifier installation kit with power cable, RCA cable, Y-adapters and 40 A ANL fuse holder
Key features
  • 4-channel bass pack with matched amplifier, subwoofer enclosure and cable kit
  • Includes wired bass remote for convenient level control
  • Designed as a complete, budget-conscious bass upgrade package
  • Includes 5 m power cable, RCA connection lead, cable lugs and speaker connection cable
Technical details
  • HXA100.4 4-channel Class A/B amplifier
  • Amplifier output: 2 x 60/100 W RMS @ 4/2 ohms + 1 x 200 W RMS bridged @ 4 ohms
  • HXB12R 30 cm / 12 inch bass reflex subwoofer system
  • Subwoofer rating: 300/600 W RMS/max, 4 ohm impedance
  • Subwoofer frequency range: 30-300 Hz
  • Enclosure dimensions: 54 x 38 x 36/30 cm
Downloads and support

Check enclosure type, amplifier matching, available space and dimensions before ordering. Message us if you want help matching the product to the right amplifier or installation position.

We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
Download owner manual Manufacturer documentation supplied where available.
