Kicker

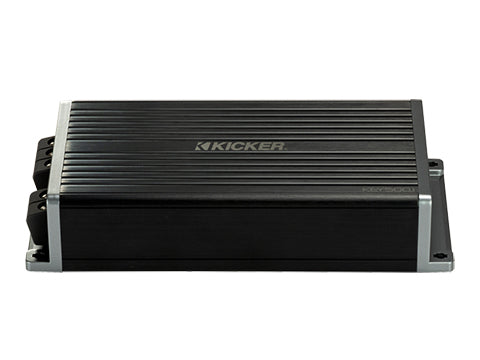

KEY500.1 Smart Mono Amplifier (bass revealer/processor)
DSP Amplifier
£289.95
Available to order
AUTO EQ Using KICKER’s supplied test tones (below), the KEY automatically analyzes the audio being fed into the amplifier. Once this signal has been analyzed, the amp will automatically fix peaks in the signal coming in and restore the low bass that...
At a glance
SKU 47KEY5001
Technical overview
DSP platform and product features
Signal-to-noise ratio>90dB, a-weighted, re: rated power
System roleIntegrated amplifier stage
Overview & features
AUTO EQ
Using KICKER’s supplied test tones (below), the KEY automatically analyzes the audio being fed into the amplifier. Once this signal has been analyzed, the amp will automatically fix peaks in the signal coming in and restore the low bass that is typically missing. In a matter of moments, you get a clean, even bass response from your amp!
Start with these FREE TEST TONES for easy setup!
ALL THE CONTROL
Official downloads
Technical overview
- Signal-to-Noise Ratio:
- >90dB, a-weighted, re: rated power
Additional specifications
- Power / voltage
- 150 W x 1 @ 4 Ω; 300 W x 1 @ 2 Ω; 500 W x 1 @ 1 Ω, 14.4 V; operating voltage 6-16 V
- White Paper
- 47KEY5001-wp.pdf
- Power (watts/ch), 1 Ohm mono
- 500
- Power (watts/ch), 2 Ohm mono
- 300
- Power (watts/ch), 4 Ohm mono
- 150
- Standard dimensions in.(H x W x L)
- 1-11/16 x 4-1/8 x 8-1/8
- Metric dimensions cm(H x W x L)
- 4.3 x 9.2 x 20.7
- Frequency Response (Hz):
- 10-160
- Input Sensitivity:
- high level: 1V-40V / low level: 125mV-5V
- Selectable Electronic Crossover:
- Variable Low Pass 40-160 Hz, Variable High Pass 10-40 Hz
