Kicker

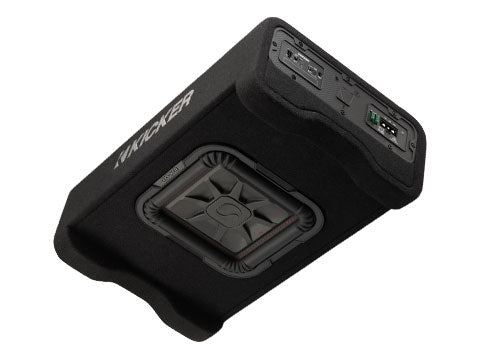

Kicker 53PL7TDF10 10" Powered Down-Firing Subwoofer Enclosure

Active Subwoofer Enclosure

£499.00
Available to order
Active Subwoofer Enclosure SKU 53PL7TDF10 Verified downloads
Why choose this product?

10-inch powered down-firing Solo-Baric L7 enclosure with a built-in 500W RMS amplifier.

Key features

  • Built-in, power-matched 500W RMS amplifier
  • Down-firing Solo-Baric L7 driver
  • High-level and low-level inputs
  • Start/stop-system compatible
  • Remote bass control included

Technical specifications

  • Type: Powered down-fire
  • Woofer size: 10 in (25 cm)
  • RMS power at 14.4V: 500 W
  • Phase switch: 0-180°
  • Frequency response: 25-120 Hz
  • Signal-to-noise ratio: >90 dB
  • Input sensitivity: Low level 125 mV-5 V; high level 1-40 V
  • Crossover: Active 24 dB/octave, variable 50-120 Hz low-pass; 24 dB/octave high-pass at 25 Hz
  • Dimensions H/D/W: 19.1 / 36.5 / 59.5 cm
  • Warranty: Two years

Owner manual · Dimension sheet

Technical specifications
RMS power
500
Frequency response
25-120
Phase switch
0-180°
Driver size
10 in (25 cm)
Dimensions H/D/W
19.1 / 36.5 / 59.5
Downloads and support

Check enclosure type, amplifier matching, available space and dimensions before ordering. Message us if you want help matching the product to the right amplifier or installation position.

We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
Kicker 53PL7TDF10 owner manual Kicker 53PL7TDF10 dimension sheet
