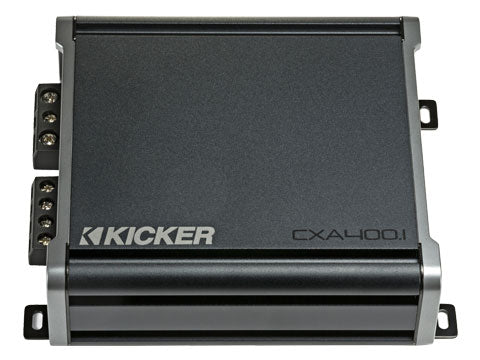

Kicker CXA400.1 Amplifier
Amplifier
Power PackThis CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! This Class-D CXA400.1 features a variable bass boost with KickEQ, giving you as much as a 6dB of extra bump. A powerful...
Overview & features
Power Pack
This CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! This Class-D CXA400.1 features a variable bass boost with KickEQ, giving you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.
CX.1 Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
- Efficient Class-D amplifier Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Compatible with CXARC Remote Bass Control
- Vertical mounting hardware included for another unique look
Power & channels
- Amplifier class
- Class D
DSP processing & amplifier stage
- Frequency response
- 25-200, +0/-1dB
- Signal-to-noise ratio
- >95dB, a-weighted, re: rated power
- Crossover
- Variable Lo-pass 50Hz–200Hz, 12dB/octave
Installation
- Dimensions
- 8-1/8, 20.6
Additional specifications
- Sensitivity
- 125mV–5V (Low Level); 1V–40V (High Level)
