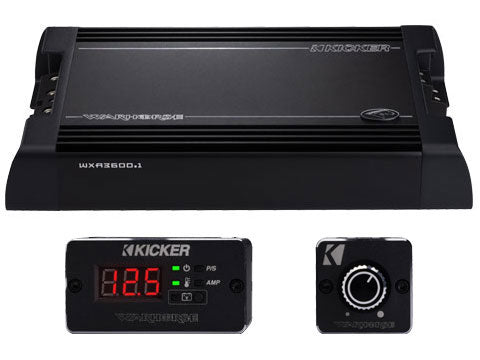

Kicker WXA3600.1 Warhorse Amplifier

Amplifier

£999.95
Available to order

Not your Average AmpIf you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob. Features extreme reliability under intense bass power and overall use Engineered completely in-house by KICKER R&D Full-bridge Class-D...

At a glance SKU 49WXA36001
Power at 2Ω2500x1
Amplifier classClass D
DimensionsH – 2-9/16, 6.5; W – 9-1/8, 23.2; L – 15-3/8, 39.1
Overview & features

Not your Average Amp

If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.

  • Features extreme reliability under intense bass power and overall use
  • Engineered completely in-house by KICKER R&D
  • Full-bridge Class-D design
  • Quad micro-controller-regulated cooling fans
  • Capable of daisy-chaining remote power across multiple amps
  • Competition mode switch to avoid potentiometer creep, fix crossover setting, and gain-match multiple amps
  • Includes premium remote bass-level control with a magnetic mount – 19.75 feet (6m) RJ45 cable
  • Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status – 19.75 feet (6m) RJ45 cable
  • Fully compatible with most factory or aftermarket source units (with FIT+ differential inputs)
  • WARHORSE Install Scenarios: WarhorseInstallScenariosv2.pdf
  • REMOTE/DIAGNOSTIC TOOL SURFACE MOUNT TEMPLATE
  • REMOTE/DIAGNOSTIC TOOL FLUSH MOUNT TEMPLATE
Power & channels
Amplifier class
Class D
RMS power at 4 ohms
1400x1
RMS power at 2 ohms
2500x1
RMS power at 1 ohm
3600x1
DSP processing & amplifier stage
Frequency response
10-200
Signal-to-noise ratio
>90
Crossover
Variable Low-pass 50-200Hz, 24dB/octave
Installation
Dimensions
H – 2-9/16, 6.5; W – 9-1/8, 23.2; L – 15-3/8, 39.1
Additional specifications
Sensitivity
low level 125mV-5V; high level 1V-40V
