Wavtech
link2
Control Accessory
Why choose this product?

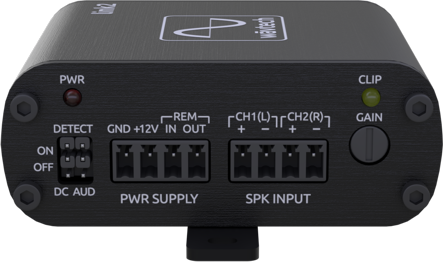

If you need a high-quality 2-channel LOC, but don’t require additional features like summing or auxiliary inputs, the link2 is the perfect solution. It is extremely small so it will fit almost anywhere, simplifying installations.
Like all our products, it has OEM load detect for factory systems that require resistance to function properly. The link2 will accept up to 40V RMS through its speaker inputs, while delivering up to 10V RMS of output at less than 50 ohms.
Features
- 2-Channel LOC
- 2-Channel Line Output Converter (LOC)
- Differential Balanced Inputs
- Low Impedance Outputs
- Variable Gain Adjustments w/Clip LEDs
- Auto-Turn On via DC-Offset or Audio Signal Detect
- Generated +12V Remote Output
- OEM Load Detect Compatible
- Locking Detachable Power/Speaker Terminals
- Professional Grade Panel Mount RCA’s
- Compact Aluminum Chassis w/Detachable Mounting Tabs
Downloads
Technical specifications
- Frequency response
- ------------ <10 Hz to >100kHz
- Nominal impedance
- --------------- <50Ω
- Sensitivity
- ------------------- 2-20Vrms, 4-40Vrms
- Total harmonic distortion
- ------------------------- <0.01%
- Dimensions
- -------------- 1.1”x2.9”x2.5” (29x75x63mm)
- Inputs
- ---------------- 40Vrms
- Outputs
- ---------- >10Vrms
Compatibility and support
For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.
We reply by email or WhatsApp so you have the recommendation in writing.
Need fitment help?
Ask before ordering if the vehicle, wiring or DSP setup is unclear.
Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.
