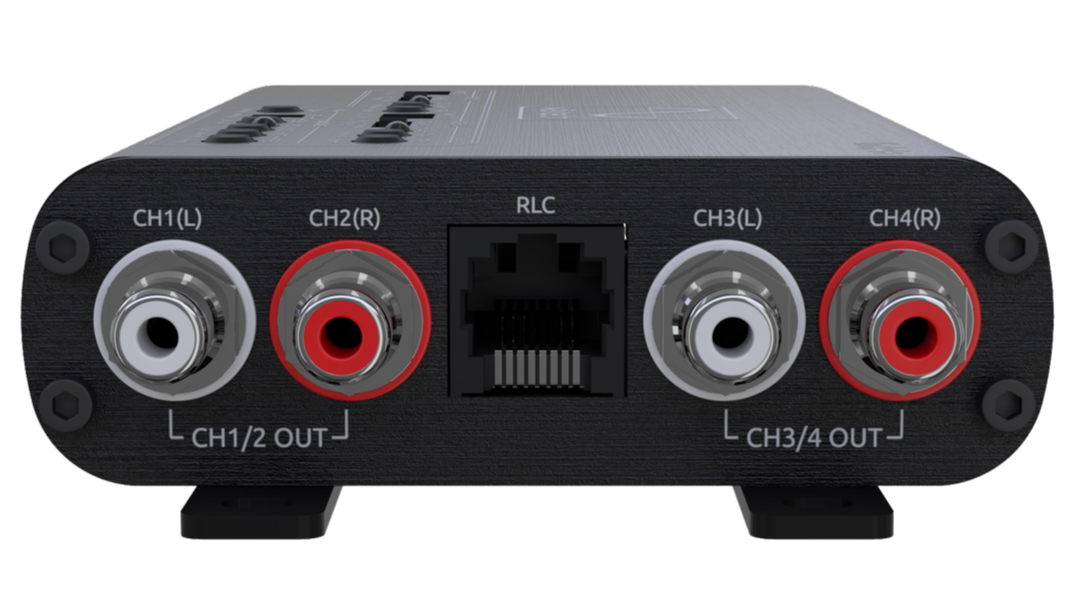

link4+

When it comes to adding an amplifier or amplifiers to the factory audio system in a modern vehicle, the link4+ does what models from competing brands just can’t. It is compatible with Start-Stop systems, meaning you won’t lose sound at a red light. It also has our best in class adaptive loading, so it works with virtually any OEM system.

The link4+ is very flexibly. It can directly accept 4-channels of input and give you 4-channels of output. It can accept 2-channels of input and give you 4-channels of output. If you input 4-channels, you can sum them down to 2-channels of output and pass through another 2-channels for retained sub level control. It even has a 3.5mm Auxiliary Input so you can add your phone or other portable device to the system. No other 4-channel LOC can do all of that.

As an added bonus, it includes our Multi-Function Remote Level/Source Control that can adjust your subwoofer output level, the volume of the auxiliary source or serve as a Master Volume Control for your entire system. This is especially useful in OEM systems where speed sensitive volume dependent equalization is present.

Features

• 4-Channel Line Output Converter
• 4-Channel Matrix Summing Processor (4-in/4-Out)
• Multi-Function Remote Level/Source Control
• Master Volume Control
• AUX Volume Control
• Independent CH3/4 Level
• Source/Function Select
• AUX 3.5mm Input
• 2ch or 4ch Input Select (Direct, Copy or Sum)
• Start-Stop Vehicle Compatible
• Matrix Summing with +/-6dB Level Trim
• Adaptive OEM Load Technology
• Differential Balanced Inputs
• Low Impedance Outputs
• Variable Gain Adjustments w/Clip LEDs
• Auto Turn-On via DC-Offset or Audio Signal Detect
• Generated +12V Remote Output
• Locking Detachable Power/Speaker Input Terminals
• Professional Grade Panel Mount RCA’s
• Compact Aluminum Chassis w/Detachable Mounting tabs
