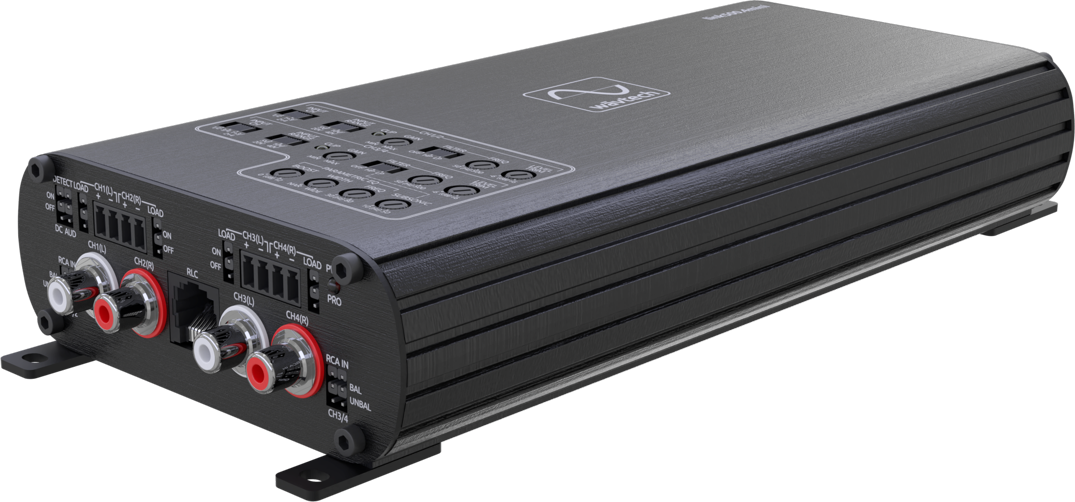

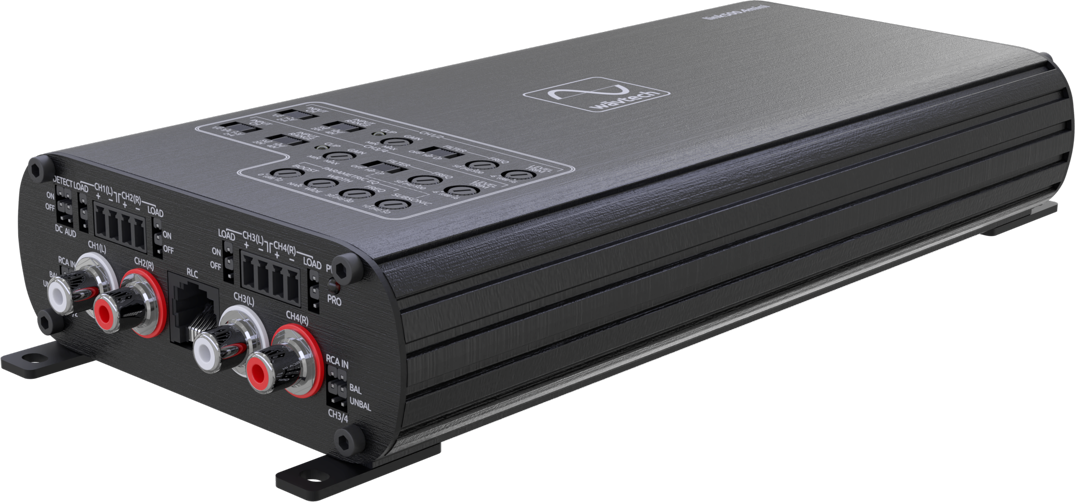

link500.4mini

A pair of new front speakers and a subwoofer is one of the most common aftermarket audio upgrades. The link500.4mini is the perfect amplifier for this application. When used in 3-channel mode, the amplifier can produce 125 watts x 2 for the main speakers and 250 watts x 1 for the subwoofer, so it won’t lack for power. Speaking of the subwoofer, channels 3/4 have a 1-band PEQ, a subsonic filter and the ability to add an RLC to fine tune the subwoofers performance.

The link500.4mini has our new adaptive loading technology plus the ability to handle up to 40V of hi-level input. It also has fully adjustable high and low pass crossovers. For factory audio systems where no full-range signal is present, the link500.4mini has built-in summing, so it can handle that internally, without the need for an outboard processor. Like all Wāvtech amplifiers, the link500.4mini is start/stop system compatible.

Features

• Small Footprint Only 9.2”x4.5”x1.65”
• Adjustable Paragraphic EQ (Channels 3/4)
• Variable Subsonic Filter (Channels 3/4)
• Variable Hi/Low Pass Crossover (-12dB/oct)
• Built-In Summing w/Level Trim Adjsutment
• Parametric EQ (CH 3/4)
• Active Thermal Management
• Start/Stop Sytem Compatiable
• Adaptive OEM Load Technology
• 40V Input Capabilty
• Differential Balanced Inputs
• Variable Gain Adjustment w/Clip LED
• Auto Turn-On via DC-Offset or Audio Signal Detect
• Locking Detachable Hi-Level Speaker Terminals
• 4 Gauge Power/Ground Terminals
• Professional Grade Panel Mount RCA’s
• Compact Aluminum Chassis w/Detachable Mounting tabs
