Wavtech

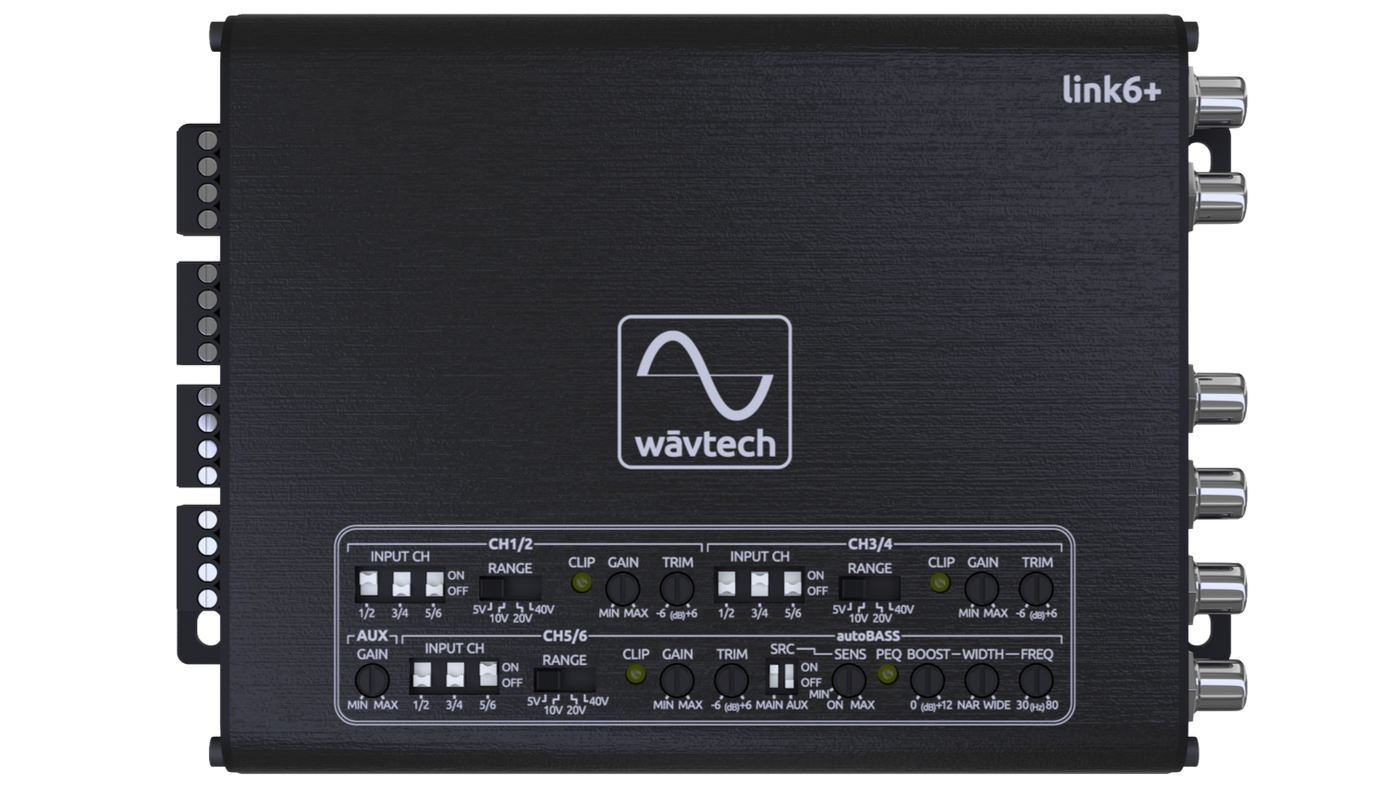

link6+
Control Accessory
Why choose this product?
When upgrading your audio system in a typical front, rear and subwoofer set-up, the link6+ is the perfect tool for the job. Getting its input from your factory stereo’s front and rear speaker signal, it can provide front, rear and subwoofer outputs for your aftermarket amplifier or amplifiers.
For added flexibility, the link6+'s multi-function remote provides unique configurations, based on the specific application requirements of your system. It controls fader , subwoofer level, or as a master volume in more complex installations.
Some factory audio systems require summing when adding aftermarket amplifiers, because no full range signal is present. The link6+ utilizes our industry leading matrix summing to address this. You can assign any input channel to any output for maximum flexibility. In addition, Wāvtech has the only analog summing devices on the market allowing full range signal from all outputs.
Features
- 6-Channel Line Output Converter
- 6-Channel Matrix Summing Processor (6-in/6-Out)
- Bass Roll-off correction via autoBASS (patent pending)
- Parametric EQ (PEQ)
- Multi-Function Remote Level/Source Control
- Master Volume Control
- Fader Control
- AUX Volume Control
- Independent CH5/6 Level
- Source/Function Select
- AUX 3.5mm Input
- 2/4/6ch Input Select (Direct, Copy or Sum)
- Start-Stop Vehicle Compatible
- Matrix Summing with +/-6dB Level Trim
- Never Zero Ch5/6 Output with Front & Rear Input
- Adaptive OEM Load Technology
- Differential Balanced Inputs
- Low Impedance Outputs
- Variable Gain Adjustments w/Clip LEDs
- Auto Turn-On via DC-Offset or Audio Signal Detect
- Generated +12V Remote Output
- Locking Detachable Power/Speaker Terminals
- Professional Grade Panel Mount RCA’s
- Compact Aluminum Chassis w/Detachable Mounting Tabs
Downloads
Technical specifications
- Frequency response
- ----------- <10Hz to 100kHz
- Nominal impedance
- ------------- <50Ω
- Total harmonic distortion
- --------------- <0.05% /<0.05%
- Dimensions
- ------------- 1.1”x4.7”x5.8” (29x120x148mm)
- Inputs
- ------ 40Vrms
- Outputs
- --------- >10Vrms
Compatibility and support
For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.
We reply by email or WhatsApp so you have the recommendation in writing.
Need fitment help?
Ask before ordering if the vehicle, wiring or DSP setup is unclear.
Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.
