Wavtech
linkDQ
Control Accessory
Why choose this product?

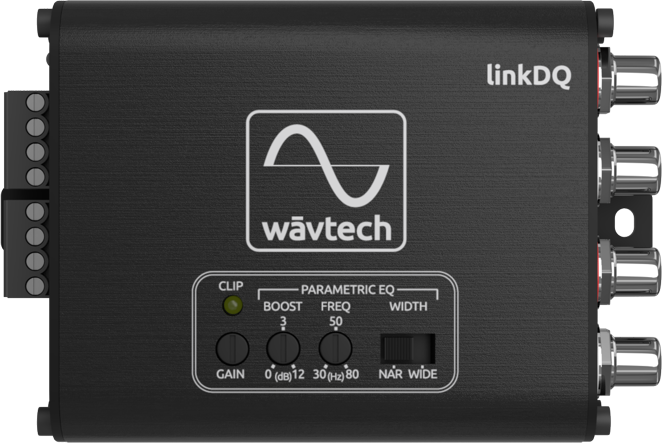

The Wavtech linkDQ combines a 2-channel line output converter, line driver and adjustable parametric EQ in one compact interface for integrating amplifiers with factory audio systems.
Its selectable narrow or wide EQ range can correct low-frequency loss between 30 Hz and 80 Hz. Automatic turn-on supports DC-offset and audio-signal detection, while an RJ45 connection allows an optional remote level control to be added for convenient bass adjustment from the front of the vehicle.
Features
- 2-channel line driver or line output converter (LOC)
- Adjustable parametric EQ with selectable narrow or wide range
- Parametric EQ frequency range from 30 Hz to 80 Hz
- Remote level control ready (remote sold separately)
- Differential balanced inputs
- Low-impedance outputs
- Variable gain adjustment with clip LED
- Auto turn-on via DC offset or audio signal detection
- Generated +12 V remote output
- OEM load-detect compatible
- Locking detachable power and speaker terminals
- Professional-grade panel-mount RCA connections
- Compact aluminium chassis with detachable mounting tabs
Downloads
Technical specifications
- Frequency response
- 0 to +12 dB / 30-80 Hz
- Nominal impedance
- <50 ohms
- Sensitivity
- 2-20 Vrms / 4-40 Vrms
- Signal-to-noise ratio
- >115 dBA / >116 dBA
- Total harmonic distortion
- <0.04% / <0.04%
- Dimensions
- 29 x 75 x 89.5 mm (1.1 x 2.9 x 3.5 in)
- Inputs
- 40 Vrms
- Outputs
- >10 Vrms
