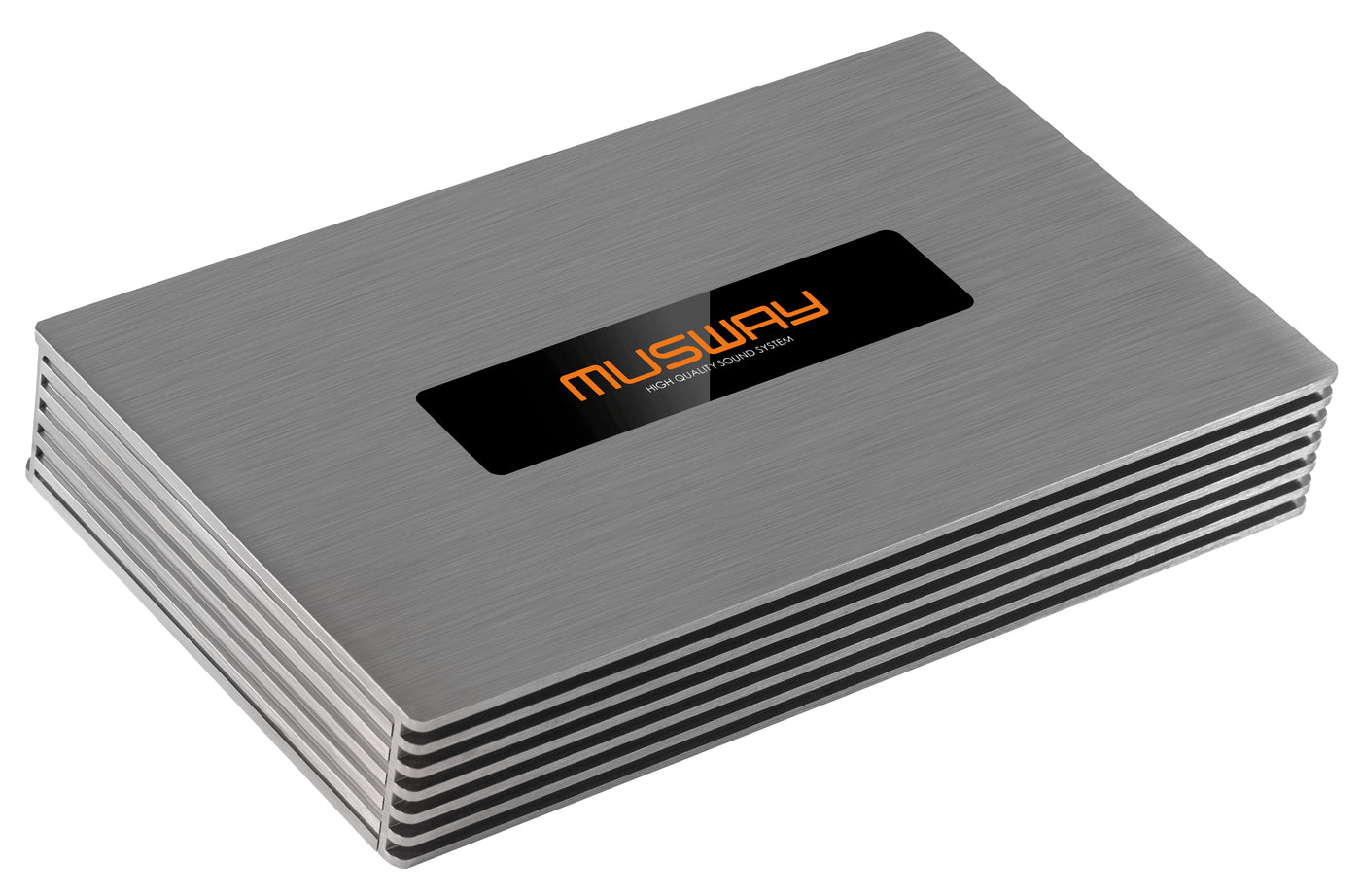

MUSWAY M10v2-512K 10CH DSP Amplifier

DSP Amplifier

£1,029.99
Available to order

The MUSWAY M10v2-512K 10CH DSP Amplifier is a MUSWAY dsp amplifier for active car audio upgrades where tuning control and compact installation matter. It is suited to builds needing dsp, 512k, class d. Use the feature and technical specification sections below to...

At a glance SKU M10V2-512K
Amplifier channels10 Channel
DSP channels14 Channel
Power ratings8 x 80 / 135 Watts RMS @ 4 / 2 Ohms
Amplifier classClass D
Impedance2 Ohm, 4 Ohm
DimensionsDimensions: 280 x 45 x 166 mm
Technical overview DSP platform and product features
DSP chip / platformBurr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)
Signal-to-noise ratioSignal-to-noise Ratio 95dB
DSP channels14 Channel
System roleIntegrated amplifier stage
Product-specific features
  • 512k Bit DSP technology, controllable via PC software or Smartphone App
  • Digital remote control DRC1 and myCON for controlling various DSP functions (optional)
  • Digital Remote Controller with Display to control the DSP Functions
  • Optional: Bluetooth® Dongle for
  • HD Audio Streaming & App Control
  • Optional: External Bluetooth® USB-Dongles BTS , BTS-HD & BTA-HD for Audio Streaming & App Control (optional)
  • 1 x Optical Input/Stereo PCM
Overview & features

The MUSWAY M10v2-512K 10CH DSP Amplifier is a MUSWAY dsp amplifier for active car audio upgrades where tuning control and compact installation matter. It is suited to builds needing dsp, 512k, class d.

Use the feature and technical specification sections below to compare channels, RMS output, impedance support, tuning options and installation details before ordering. Key installation details and specifications are listed below.

Download the M10V2-512K owner manual

Key Features
  • 10-CHANNEL CLASS D AMPLIFIER WITH 14-CHANNEL DSP
  • Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)
  • Soft-Clipping (power attenuation) in 2 Ohm operation
  • Signal-to-noise Ratio 95dB
  • Frequency Response 15 Hz – 22 kHz (-3dB)
  • THD 0,05% (1 kHz, 4 Ohms, 90% Power)
Power Ratings
  • 8 x 80 / 135 Watts RMS @ 4 / 2 Ohms
  • + 2 x 120 / 220 Watts RMS @ 4 / 2 Ohms
  • 4 x 270 + 1 x 440 Watts RMS @ 4 Ohms bridged
  • Dynamic Headroom Technology (DHR)*:
  • Channel 1-8: per Channel up to 155 Watts RMS @ 2 Ohms
  • Channel 9/10: per Channel up to 220 Watts RMS @ 2 Ohms
DSP & Tuning
  • 10-CHANNEL CLASS D AMPLIFIER WITH 14-CHANNEL DSP
  • Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)
  • Frequency Response 15 Hz – 22 kHz (-3dB)
  • 512k Bit DSP technology, controllable via PC software or Smartphone App
  • Digital remote control DRC1 and myCON for controlling various DSP functions (optional)
  • AMOLED Touchscreen Controller to control the DSP Functions
  • Only Compatible with 512K-DSP models
  • Digital Remote Controller with Display to control the DSP Functions
  • Compatible with all DSP models
  • Bluetooth® Dongle for
  • HD Audio Streaming & App Control
Inputs & Outputs
  • High Level Input with EPS ® (Error Protection System)
  • Separately controllable input sensitivity (Channel 1-8, Channel 9-10, AUX), Clipping LEDs
  • External Bluetooth® USB-Dongles BTS , BTS-HD & BTA-HD for Audio Streaming & App Control (optional)
  • 10 x High Level Input with EPS ®
  • 6 x Low Level Input RCA
  • 1 x Optical Input/Stereo PCM
  • 4 x Pre-Amplifier Output RCA (configurable via DSP)
  • 10 x Loudspeaker Output amplified
  • 1 x REV IN (reverse signal activates car host mode)
Dimensions & Installation
  • Frequency Response 15 Hz – 22 kHz (-3dB)
  • THD 0,05% (1 kHz, 4 Ohms, 90% Power)
  • Start-Stop ready, Auto Turn-On
  • Dimensions: 280 x 45 x 166 mm
Additional specifications
Amplifier channels
10 Channel
Dsp channels
14 Channel
