Musway

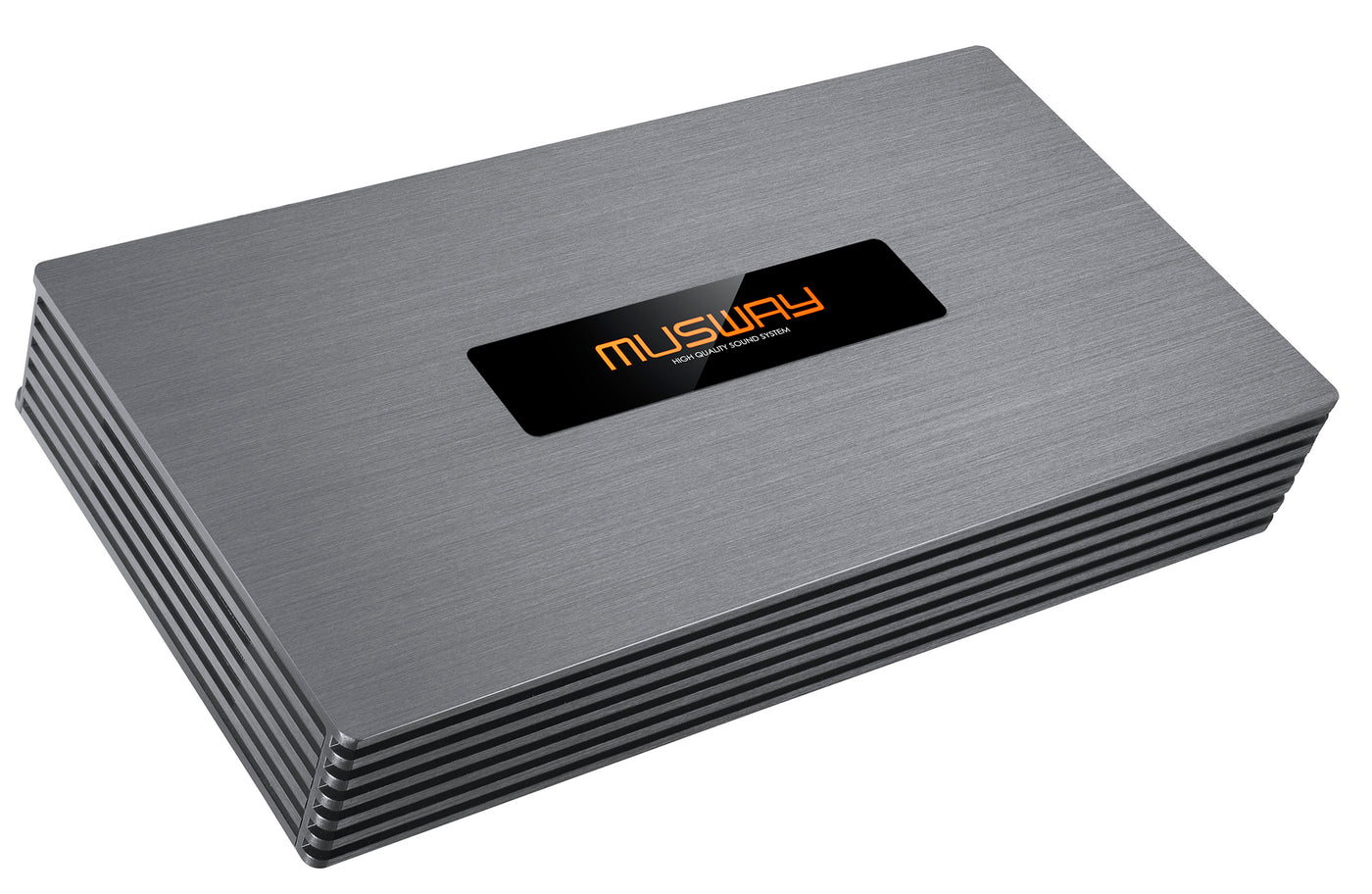

MUSWAY M12 12CH DSP Amplifier
12-Channel Class D Amplifier With 16-Channel DSP
£1,104.99
Available to order
DSP Amplifier
8 Channel+
Under 300W
2 Ohm, 4 Ohm
Manual included
Dsp tuning
The MUSWAY M12 12CH DSP Amplifier is a MUSWAY dsp amplifier for active car audio upgrades where tuning control and compact installation matter. It is suited to builds needing dsp, class d, optical input.
Use the feature and technical specification sections below to compare channels, RMS output, impedance support, tuning options and installation details before ordering. Key installation details and specifications are listed below.
Best for tuned active upgrades
Use the DSP and channel data below to check routing, tuning and integration requirements before fitting.
Features
• 12-CHANNEL CLASS D AMPLIFIER WITH 16-CHANNEL DSP
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)
• Dual 64bit, 295 MHz DSP technology, controllable via PC software or Smartphone App
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio 95dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD 0,05% (1 kHz, 4 Ohms, 90% Power)
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)
• Dual 64bit, 295 MHz DSP technology, controllable via PC software or Smartphone App
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio 95dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD 0,05% (1 kHz, 4 Ohms, 90% Power)
Technical Specifications
Power Ratings
• @ 4/2 Ohms 85/120 Watts RMS per channel*
• @ 4 Ohms bridged 240 Watts RMS per channelpair*
Dsp & Tuning
• 12-CHANNEL CLASS D AMPLIFIER WITH 16-CHANNEL DSP
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)
• Dual 64bit, 295 MHz DSP technology, controllable via PC software or Smartphone App
• Frequency Response 15 Hz – 22 kHz (-3dB)
• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
• depending on the application
• Digital Remote Controller with Display to control the DSP Functions
• Compatible with all DSP models
• Bluetooth® Dongle for
• Audio Streaming & App Control
• Compatible with the DSP models TUNE12, DSP68, M6v3/v4, M4+v3/v4, D8v3/v4, M10, M12, M5
Inputs & Outputs
• High Level Input with EPS ® (Error Protection System)
• Separately controllable input sensitivity (Channel 1-6, Channel 7-12, AUX), Clipping LEDs
• External Bluetooth® USB-Dongles BTS , BTS-HD & BTA2 for Audio Streaming & App Control (optional)
• 12 x High Level Input with EPS ®
• 6 x Low Level Input RCA
• 1 x Optical Input/Stereo PCM
• 4 x Pre-Amplifier Output RCA (configurable via DSP)
• 12 x Loudspeaker Output amplified
Dimensions & Installation
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD 0,05% (1 kHz, 4 Ohms, 90% Power)
• Start-Stop ready, Auto Turn-On
• Dimensions: 340 x 48 x 171,5 mm
• @ 4/2 Ohms 85/120 Watts RMS per channel*
• @ 4 Ohms bridged 240 Watts RMS per channelpair*
Dsp & Tuning
• 12-CHANNEL CLASS D AMPLIFIER WITH 16-CHANNEL DSP
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)
• Dual 64bit, 295 MHz DSP technology, controllable via PC software or Smartphone App
• Frequency Response 15 Hz – 22 kHz (-3dB)
• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
• depending on the application
• Digital Remote Controller with Display to control the DSP Functions
• Compatible with all DSP models
• Bluetooth® Dongle for
• Audio Streaming & App Control
• Compatible with the DSP models TUNE12, DSP68, M6v3/v4, M4+v3/v4, D8v3/v4, M10, M12, M5
Inputs & Outputs
• High Level Input with EPS ® (Error Protection System)
• Separately controllable input sensitivity (Channel 1-6, Channel 7-12, AUX), Clipping LEDs
• External Bluetooth® USB-Dongles BTS , BTS-HD & BTA2 for Audio Streaming & App Control (optional)
• 12 x High Level Input with EPS ®
• 6 x Low Level Input RCA
• 1 x Optical Input/Stereo PCM
• 4 x Pre-Amplifier Output RCA (configurable via DSP)
• 12 x Loudspeaker Output amplified
Dimensions & Installation
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD 0,05% (1 kHz, 4 Ohms, 90% Power)
• Start-Stop ready, Auto Turn-On
• Dimensions: 340 x 48 x 171,5 mm
Downloads and support
Download owner manual
PDF manual hosted by TenderSounds.
