Musway

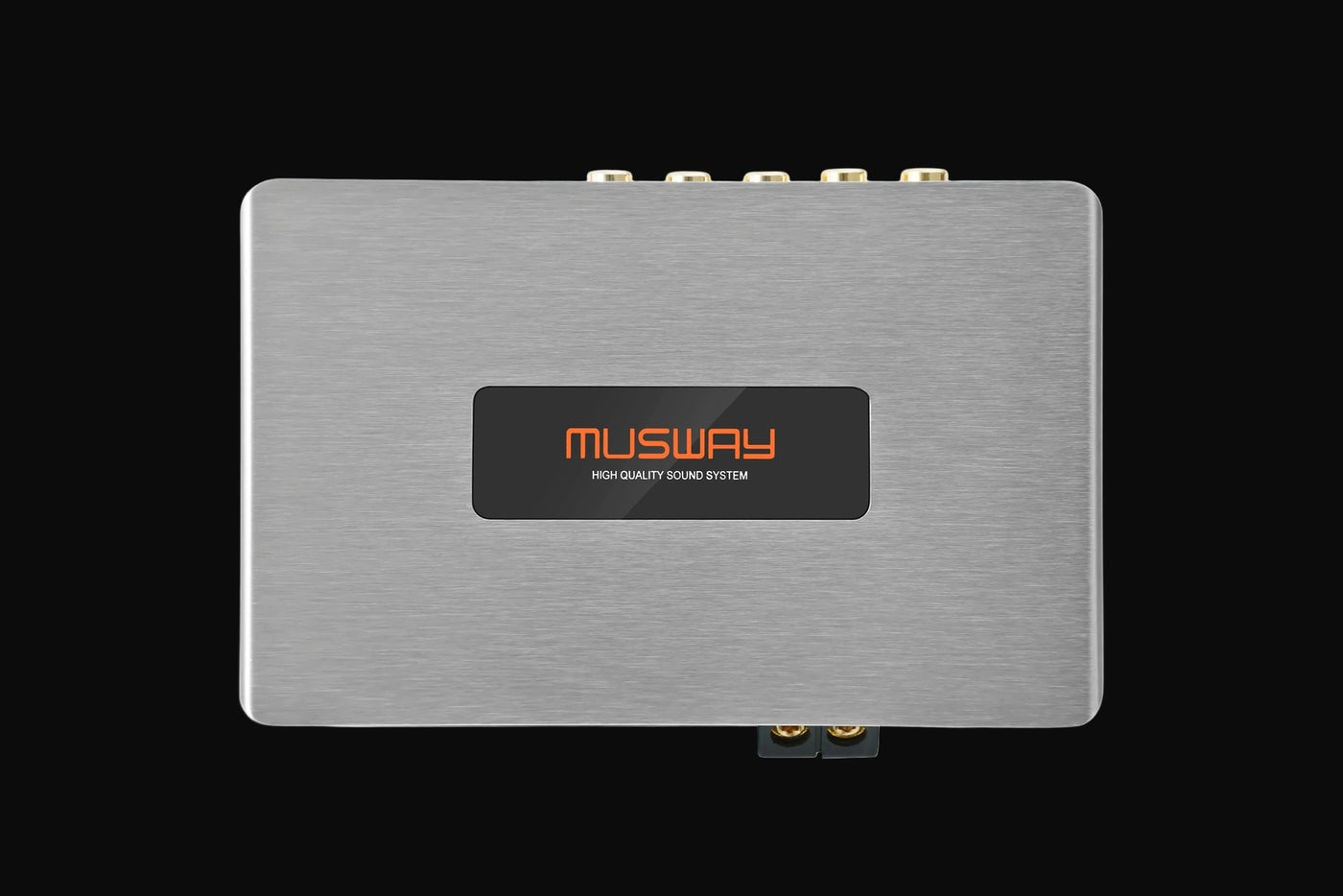

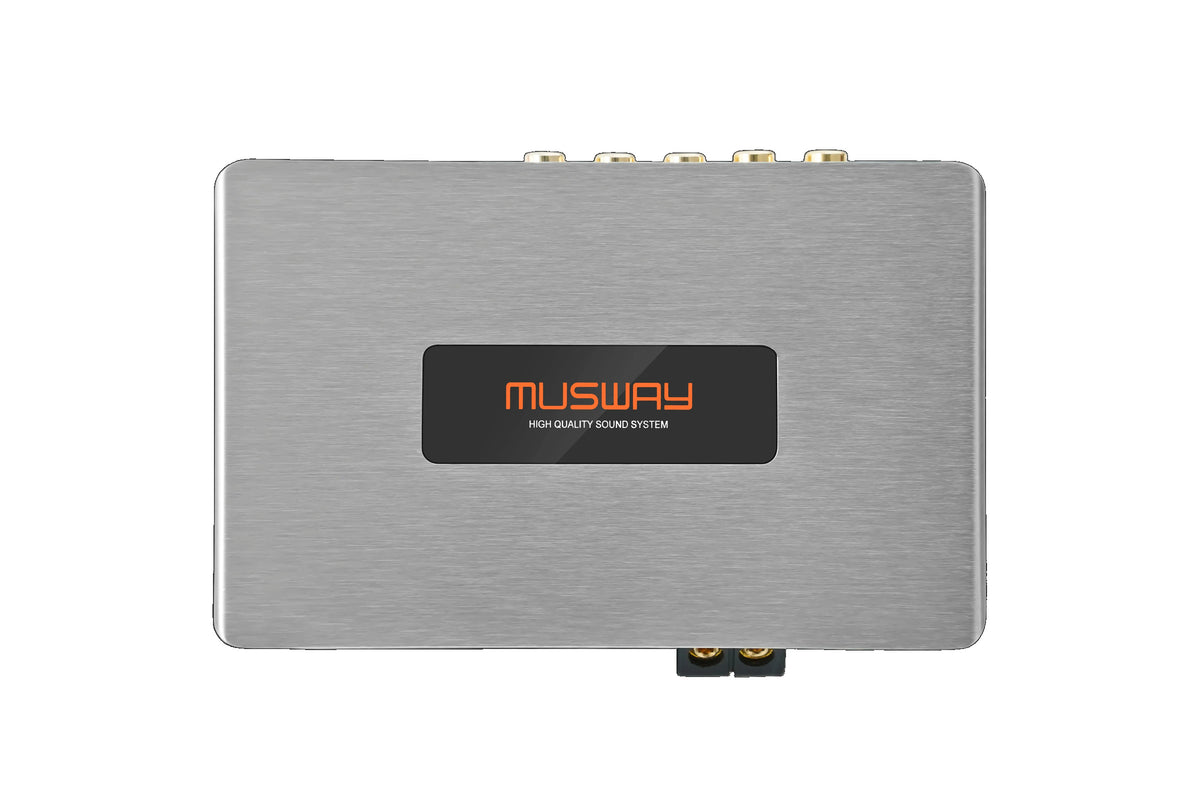

MUSWAY M4 Nano 512K 4CH DSP Amplifier
4-Channel Class D Amplifier with 8-Channel DSP
£480.00
Available to order
DSP Amplifier
4 Channel
Under 300W
2 Ohm, 4 Ohm
Manual included
Dsp tuning
The MUSWAY M4 Nano 512K 4CH DSP Amplifier is a MUSWAY dsp amplifier for active car audio upgrades where tuning control and compact installation matter. It is suited to builds needing dsp, 512k, class d.
Use the feature and technical specification sections below to compare channels, RMS output, impedance support, tuning options and installation details before ordering. Key installation details and specifications are listed below.
Best for tuned active upgrades
Use the DSP and channel data below to check routing, tuning and integration requirements before fitting.
Features
• 64-bit DSP processor, 295 MHz clock speed
• 31-band parametric equalizer ±15 dB
• Bessel, Butterworth and Linkwitz crossover types
• Crossover slopes 6/12/18/24/30/36/42/48 dB
• Time alignment 0–342 cm / 0–9.3 ms in 0.02 ms steps
• 6 locally stored presets
• 4 amplified speaker outputs
• Auto turn-on via high-level CH1
• Compatible with MUSWAY DRC digital remote controller
• 31-band parametric equalizer ±15 dB
• Bessel, Butterworth and Linkwitz crossover types
• Crossover slopes 6/12/18/24/30/36/42/48 dB
• Time alignment 0–342 cm / 0–9.3 ms in 0.02 ms steps
• 6 locally stored presets
• 4 amplified speaker outputs
• Auto turn-on via high-level CH1
• Compatible with MUSWAY DRC digital remote controller
Technical Specifications
Power Ratings
• 4 x 60 Watts RMS @ 4 Ohms
• 4 x 100 Watts RMS @ 2 Ohms
• 2 x 220 Watts RMS bridged @ 4 Ohms
• THD 0.01% (1 kHz @ 4 Ohms, 5 W)
Dsp & Tuning
• 64-bit DSP processor, 295 MHz clock speed
• 31-band parametric equalizer ±15 dB
• Bessel, Butterworth and Linkwitz crossover types
• Crossover slopes 6/12/18/24/30/36/42/48 dB
• Compatible with MUSWAY DRC digital remote controller
• Frequency Response 10 Hz – 22 kHz (-3 dB)
Inputs & Outputs
• 6 x high-level inputs
• 6 x low-level RCA inputs
• 1 x optical input via Digi In/Bluetooth dongle
• USB PC configuration via MUSWAY TUNEST-PC
• 4 DSP-processed RCA pre-amplifier outputs
Dimensions & Installation
• Auto turn-on via high-level CH1
• THD 0.01% (1 kHz @ 4 Ohms, 5 W)
• Damping Factor > 75
• Frequency Response 10 Hz – 22 kHz (-3 dB)
• Fuse Rating 35 A internal
• Dimensions: 150 x 45 x 95 mm
• Net Weight: 0.83 kg
• 4 x 60 Watts RMS @ 4 Ohms
• 4 x 100 Watts RMS @ 2 Ohms
• 2 x 220 Watts RMS bridged @ 4 Ohms
• THD 0.01% (1 kHz @ 4 Ohms, 5 W)
Dsp & Tuning
• 64-bit DSP processor, 295 MHz clock speed
• 31-band parametric equalizer ±15 dB
• Bessel, Butterworth and Linkwitz crossover types
• Crossover slopes 6/12/18/24/30/36/42/48 dB
• Compatible with MUSWAY DRC digital remote controller
• Frequency Response 10 Hz – 22 kHz (-3 dB)
Inputs & Outputs
• 6 x high-level inputs
• 6 x low-level RCA inputs
• 1 x optical input via Digi In/Bluetooth dongle
• USB PC configuration via MUSWAY TUNEST-PC
• 4 DSP-processed RCA pre-amplifier outputs
Dimensions & Installation
• Auto turn-on via high-level CH1
• THD 0.01% (1 kHz @ 4 Ohms, 5 W)
• Damping Factor > 75
• Frequency Response 10 Hz – 22 kHz (-3 dB)
• Fuse Rating 35 A internal
• Dimensions: 150 x 45 x 95 mm
• Net Weight: 0.83 kg
Downloads and support
Download owner manual
PDF manual hosted by TenderSounds.
