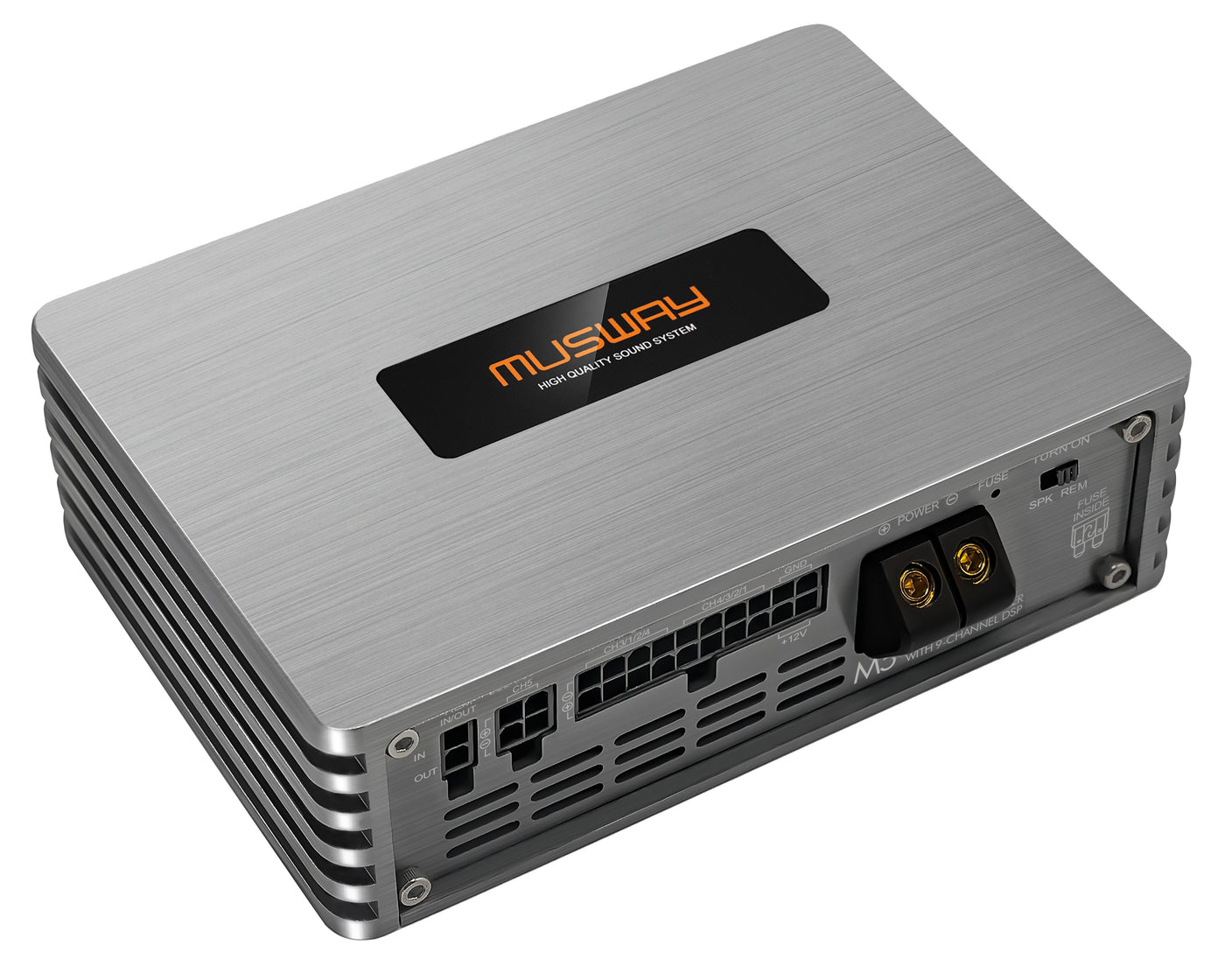

MUSWAY M5-512K 5CH DSP Amplifier

DSP Amplifier

£499.99

Available to order

5-CHANNEL CLASS D AMPLIFIER WITH 9-CHANNEL DSP Why Buy This Product 5-CHANNEL CLASS D AMPLIFIER WITH 9-CHANNEL DSP High Level Input with EPS ® (Error Protection System) Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452) Signal-to-noise Ratio 95dB Frequency Response 10 Hz...

At a glance SKU M5-512K

Amplifier channels45 W x 4 @ 4 Ω + 180 W x 1 @ 4 Ω; 50 W x 4 @ 3 Ω + 300 W x 1 @ 2 Ω

DSP channels9-channel DSP

Power ratings4 x 45 W RMS at 4 ohms

Amplifier class5-channel DSP amplifier

Impedance2 Ohm Stable

Dimensions150 x 45 x 105 mm

Technical overview DSP platform and product features

DSP chip / platformAnalog Devices ADAU1452 DSP with Burr-Brown PCM3168A converters

Signal-to-noise ratio>95 dB A-weighted

DSP channels9-channel DSP

Sample rate96 kHz optical PCM input (up to 96 kHz / 24-bit)

DSP precision64-bit DSP; optical input up to 96 kHz/24-bit

System roleIntegrated amplifier stage

Product-specific features

Optical digital input and four configurable RCA pre-amplifier outputs
Optional: Optional MUSWAY Bluetooth modules and digital remote controllers
Tuning via MUSWAY TUNEST PC software or compatible smartphone app
Crossover, equalisation, time alignment, phase and signal-routing control
Optional: Optional BTS, BTS-HD or BTA-HD Bluetooth module and DRC1 or myCON controller
1 optical stereo PCM input

Overview & features

5-CHANNEL CLASS D AMPLIFIER WITH 9-CHANNEL DSP

Why Buy This Product

5-CHANNEL CLASS D AMPLIFIER WITH 9-CHANNEL DSP
High Level Input with EPS ® (Error Protection System)
Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
Signal-to-noise Ratio 95dB
Frequency Response 10 Hz – 20 kHz (-3dB)
THD 0,015% (1 kHz, 4 Ohms, 90% Power)
Plug+Play with vehicle-specific cable sets
Channels: 5 Channel

Technical Specifications

Channels	5 Channel
Impedance / Stability	2 Ohm, 4 Ohm
Key Features	DSP, 512K, Class D, Optical Input, High Level Input, App/Bluetooth Control, Remote Control
Feature	5-CHANNEL CLASS D AMPLIFIER WITH 9-CHANNEL DSP
Feature	The EVO version of the M5 has a 20 cm cable harness with open ends, while the regular M5 comes with a 2.5 meter long ISO cable for easy plug+play connection to the car radio.
Feature	High Level Input with EPS ® (Error Protection System)
Feature	Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
Feature	Signal-to-noise Ratio 95dB
Feature	Frequency Response 10 Hz – 20 kHz (-3dB)
Feature	THD 0,015% (1 kHz, 4 Ω, 90% Power)
Feature	Plug+Play with vehicle-specific cable sets

Key Features

5-channel Class D amplifier with 9-channel DSP
500 W RMS total rated output
Analog Devices ADAU1452 DSP with Burr-Brown PCM3168A converters
High-level inputs with EPS, automatic turn-on and start-stop compatibility
Optical digital input and four configurable RCA pre-amplifier outputs
Optional MUSWAY Bluetooth modules and digital remote controllers
2.5 m MX-Connect cable harness on ISO included

Power Ratings

4 x 45 W RMS at 4 ohms
4 x 50 W RMS at 3 ohms
1 x 180 W RMS at 4 ohms
1 x 300 W RMS at 2 ohms

DSP & Tuning

9 DSP channels with four externally usable, configurable RCA outputs
512K DSP platform with Analog Devices ADAU1452 processor
Burr-Brown PCM3168A analogue-to-digital and digital-to-analogue converters
Tuning via MUSWAY TUNEST PC software or compatible smartphone app
Crossover, equalisation, time alignment, phase and signal-routing control
Optional BTS, BTS-HD or BTA-HD Bluetooth module and DRC1 or myCON controller

Inputs & Outputs

4 high-level inputs with EPS
2 AUX RCA inputs
1 optical stereo PCM input
4 amplified loudspeaker outputs and 1 amplified subwoofer output
4 configurable RCA pre-amplifier outputs
Quick Connect terminal for compatible MUSWAY subwoofer systems

Dimensions & Installation

Dimensions: 150 x 45 x 105 mm
Frequency response: 10 Hz to 20 kHz (-3 dB)
Signal-to-noise ratio: 95 dB
Start-stop ready with automatic turn-on
2.5 m MX-Connect cable harness on ISO included

Additional specifications

Amplifier class: 5-channel DSP amplifier
Power / voltage: 7.5-17 VDC
Amplified channels: 45 W x 4 @ 4 Ω + 180 W x 1 @ 4 Ω; 50 W x 4 @ 3 Ω + 300 W x 1 @ 2 Ω
Inputs / outputs: High-level and AUX low-level inputs; optical input; CH6-CH9 RCA preamp outputs; 4 speaker outputs; subwoofer output; USB PC input; remote in/out
Frequency response: 10 Hz-20 kHz (-3 dB)
Signal-to-noise ratio: >95 dB A-weighted
Total harmonic distortion: <0.015% (1 kHz @ 4 Ω, 5 W)
Weight: 1.0 kg
Sample rate: 96 kHz optical PCM input (up to 96 kHz / 24-bit)
Bit depth: 64-bit DSP; optical input up to 96 kHz/24-bit
Bluetooth / expansion: Optional external Bluetooth dongle and optional MUSWAY digital remote; MUSWAY TUNEST-PC DSP software via USB
